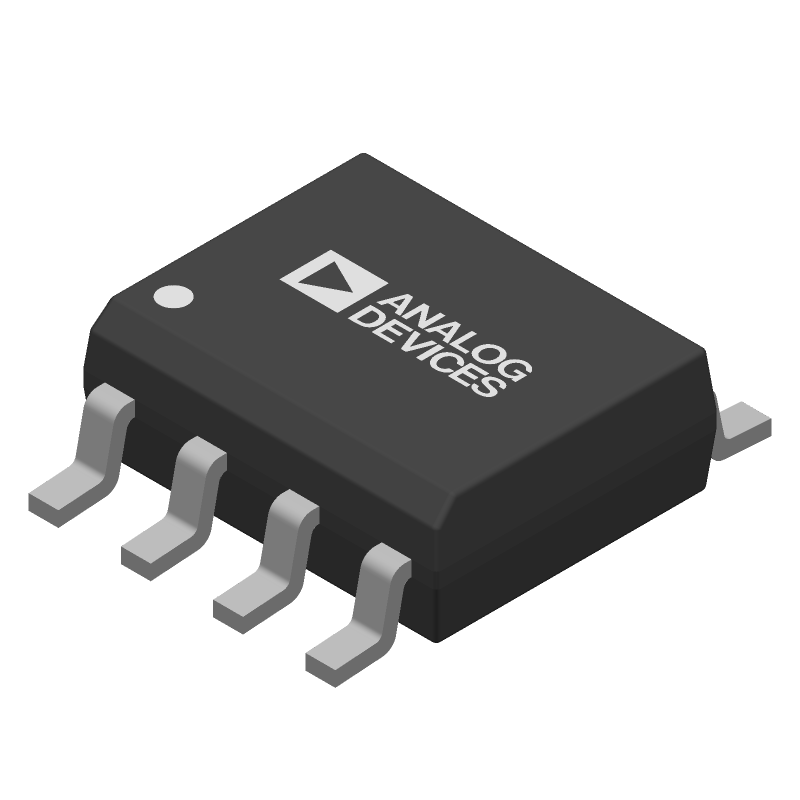

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADA4625-1ARDZ by Analog Devices Inc
Results Overview of ADA4625-1ARDZ by Analog Devices Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
ADA4625-1ARDZ Information
ADA4625-1ARDZ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4625-1ARDZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK4516
|
Newark | Op-Amp, 18Mhz, -40 To 125Deg C, Nsoic-Ep, No. Of Channels:1Channels, Gain Bandwidth Product:18Mhz, Supply Voltage Range:5V To 36V, ± 2.5V To ± 18V, Ic Case/Package:Nsoic-Ep, No. Of Pins:8Pins, Amplifier Type:Jfet, Product Range:- Rohs Compliant: Yes |Analog Devices ADA4625-1ARDZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 104 |
|
$6.2000 / $11.6200 | Buy Now |
|
DISTI #
505-ADA4625-1ARDZ-ND
|
DigiKey | IC OPAMP JFET 1 CIRCUIT 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
135 In Stock |
|
$5.9875 / $12.2200 | Buy Now |
|
DISTI #
584-ADA4625-1ARDZ
|
Mouser Electronics | Operational Amplifiers - Op Amps 36 V, 18 MHz, Low Noise, Fast Settling Single Supply, RRO, JFET Op Amp RoHS: Compliant | 1218 |
|
$6.1500 / $10.7800 | Buy Now |
|
DISTI #
V99:2348_18983685
|
Arrow Electronics | Op Amp Single Low Noise Amplifier R-R O/P ±18V/36V 8-Pin SOIC N EP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2434 | Americas - 7 |
|
$6.0790 / $10.2800 | Buy Now |
|
|
Analog Devices Inc | Single Low Noise, Fast Settlin Package Multiple: 98 | 4328 |
|
$4.4200 / $12.2200 | Buy Now |
|
DISTI #
26641596
|
Verical | Op Amp Single Low Noise Amplifier R-R O/P ±18V/36V 8-Pin SOIC N EP Tube RoHS: Compliant Min Qty: 98 Package Multiple: 98 | Americas - 4116 |
|
$6.0252 | Buy Now |
|
DISTI #
87008007
|
Verical | Op Amp Single Low Noise Amplifier R-R O/P ±18V/36V 8-Pin SOIC N EP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2434 | Americas - 7 |
|
$6.0790 | Buy Now |
|
|
Quest Components | 3 |
|
$6.3000 / $12.6000 | Buy Now | |
|
DISTI #
ADA4625-1ARDZ
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 98 | 0 |
|
$6.2600 / $6.6900 | Buy Now |
|
|
Vyrian | Amplifiers | 1311 |
|
RFQ |
Part Details for ADA4625-1ARDZ
ADA4625-1ARDZ CAD Models
ADA4625-1ARDZ Part Data Attributes
|
|
ADA4625-1ARDZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADA4625-1ARDZ
Analog Devices Inc
36 V, 18 MHz, Low Noise, Fast Settling Single Supply, RRO, JFET Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RD-8-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Date Of Intro | 2017-10-23 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.0055 µA | |
| Bias Current-Max (IIB) @25C | 0.000075 µA | |
| Common-mode Reject Ratio-Min | 94 dB | |
| Common-mode Reject Ratio-Nom | 115 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 250 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 3 | |
| Neg Supply Voltage Limit-Max | -20 V | |
| Neg Supply Voltage-Nom (Vsup) | -18 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HSOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 48 V/us | |
| Supply Current-Max | 5 mA | |
| Supply Voltage Limit-Max | 20 V | |
| Supply Voltage-Nom (Vsup) | 18 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 18000 | |
| Voltage Gain-Min | 3162277.66 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for ADA4625-1ARDZ
This table gives cross-reference parts and alternative options found for ADA4625-1ARDZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADA4625-1ARDZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADA4625-1ARDZ-RL | Analog Devices Inc | Check for Price | 36 V, 18 MHz, Low Noise, Fast Settling Single Supply, RRO, JFET Op Amp | ADA4625-1ARDZ vs ADA4625-1ARDZ-RL |
| ADA4625-1ARDZ-R7 | Analog Devices Inc | $7.4682 | 36 V, 18 MHz, Low Noise, Fast Settling Single Supply, RRO, JFET Op Amp | ADA4625-1ARDZ vs ADA4625-1ARDZ-R7 |
| LME49724MR/NOPB | Texas Instruments | $1.7950 | 50-MHz, high-fidelity, high-performance, fully-differential audio op amp 8-SO PowerPAD -40 to 85 | ADA4625-1ARDZ vs LME49724MR/NOPB |
| LME49724MRX/NOPB | Texas Instruments | $1.1471 | 50-MHz, high-fidelity, high-performance, fully-differential audio op amp 8-SO PowerPAD -40 to 85 | ADA4625-1ARDZ vs LME49724MRX/NOPB |
| OPA828IDR | Texas Instruments | $3.9148 | High-speed (45 MHz and 150 V/µs), 36-V, low-noise (4 nV/√Hz) RRO JFET operational amplifier 8-SOIC -40 to 125 | ADA4625-1ARDZ vs OPA828IDR |
| OPA828IDGNR | Texas Instruments | Check for Price | High-speed (45 MHz and 150 V/µs), 36-V, low-noise (4 nV/√Hz) RRO JFET operational amplifier 8-HVSSOP -40 to 125 | ADA4625-1ARDZ vs OPA828IDGNR |
| LME49724MR | Texas Instruments | Check for Price | OP-AMP, 1000uV OFFSET-MAX, 50MHz BAND WIDTH, PDSO8, PSOP-8 | ADA4625-1ARDZ vs LME49724MR |
| OPA828ID | Texas Instruments | $4.0813 | High-speed (45 MHz and 150 V/µs), 36-V, low-noise (4 nV/√Hz) RRO JFET operational amplifier 8-SOIC -40 to 125 | ADA4625-1ARDZ vs OPA828ID |
ADA4625-1ARDZ Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the ADA4625-1ARDZ is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability in a unity-gain configuration, it's recommended to add a 10nF to 22nF capacitor in parallel with a 1kΩ to 2kΩ resistor between the output and the inverting input. This helps to reduce the phase margin and prevent oscillations.
-
To minimize noise and EMI, it's recommended to keep the input and output traces as short as possible, use a solid ground plane, and avoid running sensitive traces near the power supply or other noisy signals. Additionally, use a low-ESR capacitor for decoupling and place it as close to the power pins as possible.
-
The ADA4625-1ARDZ is specified to operate from -40°C to 125°C, but the device's performance may degrade at higher temperatures. It's recommended to derate the power dissipation and ensure proper heat sinking to maintain a safe junction temperature.
-
The ADA4625-1ARDZ has built-in ESD protection, but it's still recommended to handle the device with ESD-safe materials and follow proper ESD handling procedures to prevent damage.
