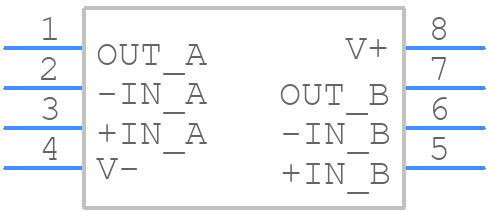

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADA4177-2ARMZ by Analog Devices Inc
Results Overview of ADA4177-2ARMZ by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADA4177-2ARMZ Information
ADA4177-2ARMZ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4177-2ARMZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK4467
|
Newark | Op-Amp, 3.5Mhz, -40 To 125Deg C, Msop-8, No. Of Channels:2Channels, Gain Bandwidth Product:3.5Mhz, Supply Voltage Range:± 2.5V To ± 18V, Ic Case/Package:Msop, No. Of Pins:8Pins, Amplifier Type:General Purpose, Product Range:- Rohs Compliant: Yes |Analog Devices ADA4177-2ARMZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 385 |
|
$3.5500 / $6.3600 | Buy Now |
|
DISTI #
505-ADA4177-2ARMZ-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
638 In Stock |
|
$2.7125 / $6.8000 | Buy Now |
|
DISTI #
584-ADA4177-2ARMZ
|
Mouser Electronics | Precision Amplifiers 30V, Precision w/OVP, EMI and RRO Op Amp RoHS: Compliant | 29772 |
|
$2.9100 / $6.8000 | Buy Now |
|
DISTI #
A01:0375_06440998
|
Arrow Electronics | Op Amp Dual Precision Amplifier R-R O/P ±18V 8-Pin MSOP Tube RoHS: Compliant Min Qty: 200 Package Multiple: 50 Lead time: 26 Weeks Date Code: 2245 | Asia - 600 |
|
$2.5280 | Buy Now |
|
|
Analog Devices Inc | 30V, Precision w/OVP, EMI and Package Multiple: 50 | 1038 |
|
$1.8000 / $6.8000 | Buy Now |
|
DISTI #
26617472
|
Verical | Op Amp Dual Precision Amplifier R-R O/P ±18V 8-Pin MSOP Tube RoHS: Compliant Min Qty: 200 Package Multiple: 200 | Americas - 1000 |
|
$2.7296 | Buy Now |
|
DISTI #
80553322
|
Verical | Op Amp Dual Precision Amplifier R-R O/P ±18V 8-Pin MSOP Tube RoHS: Compliant Min Qty: 200 Package Multiple: 50 | Americas - 600 |
|
$2.5280 | Buy Now |
|
DISTI #
ADA4177-2ARMZ
|
TME | IC: operational amplifier, 3.5MHz, Ch: 2, MSOP8, ±2.5÷18VDC Min Qty: 1 | 0 |
|
$3.9000 / $5.4600 | RFQ |
|
|
Vyrian | Amplifiers | 3898 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP GP 2 CIRCUIT 8MSOP | 1600 |
|
$4.0182 / $6.0273 | Buy Now |
Part Details for ADA4177-2ARMZ
ADA4177-2ARMZ CAD Models
ADA4177-2ARMZ Part Data Attributes
|
|
ADA4177-2ARMZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADA4177-2ARMZ
Analog Devices Inc
OVP and EMI Protected, Precision, Low Noise and Bias Current Dual Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.002 µA | |
| Common-mode Reject Ratio-Nom | 130 dB | |
| Input Offset Voltage-Max | 200 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Slew Rate-Nom | 1.5 V/us | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 3500 | |
| Width | 3 mm |
