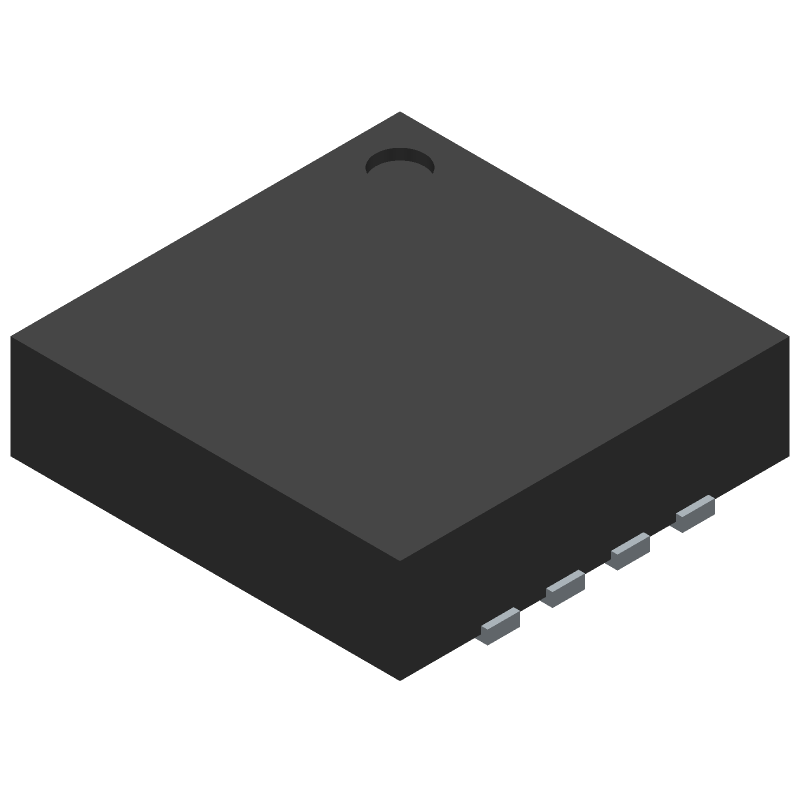

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADA4084-2ACPZ-R7 by Analog Devices Inc
Results Overview of ADA4084-2ACPZ-R7 by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
ADA4084-2ACPZ-R7 Information
ADA4084-2ACPZ-R7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4084-2ACPZ-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80AK8606
|
Newark | Op-Amp, 15.9Mhz, -40 To 125Deg C, Lfcsp Rohs Compliant: Yes |Analog Devices ADA4084-2ACPZ-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 980 |
|
$4.8800 / $8.5100 | Buy Now |
|
DISTI #
505-ADA4084-2ACPZ-R7CT-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3355 In Stock |
|
$4.6125 / $10.0500 | Buy Now |
|
DISTI #
584-ADA4084-2ACPZ-R7
|
Mouser Electronics | Operational Amplifiers - Op Amps 30V RRIO LowPwr Dual OpAmp RoHS: Compliant | 541 |
|
$4.7900 / $8.5100 | Buy Now |
|
DISTI #
V72:2272_06217330
|
Arrow Electronics | Op Amp Dual Low Noise Amplifier R-R I/O ±15V/30V 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2330 Container: Cut Strips | Americas - 77 |
|
$4.9530 / $6.5140 | Buy Now |
|
|
Analog Devices Inc | 30V RRIO LowPwr Dual OpAmp Min Qty: 1 Package Multiple: 1500 | 671 |
|
$3.5100 / $10.0500 | Buy Now |
|
DISTI #
70365884
|
Verical | Op Amp Dual Low Noise Amplifier R-R I/O ±15V/30V 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2330 | Americas - 77 |
|
$4.9530 / $6.5140 | Buy Now |
|
|
LCSC | Dual 400nA 4.6V/us 100uV LFCSP-8(3x3) Operational Amplifier ROHS | 219 |
|
$10.0934 / $12.5623 | Buy Now |
|
|
Vyrian | Amplifiers | 913 |
|
RFQ | |
|
|
Win Source Electronics | 30 V, Low Noise, Rail-to-Rail I/O, Low Power Operational Amplifier | IC OPAMP GP 2 CIRCUIT 8LFCSP | 3002 |
|
$8.3259 / $12.4888 | Buy Now |
Part Details for ADA4084-2ACPZ-R7
ADA4084-2ACPZ-R7 CAD Models
ADA4084-2ACPZ-R7 Part Data Attributes
|
|
ADA4084-2ACPZ-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADA4084-2ACPZ-R7
Analog Devices Inc
30 V, Low Noise, Rail-to-Rail Input/Output, Low Power Operational Dual Amplifier
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SON | |
| Package Description | LFCSP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | CP-8-11 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.45 µA | |
| Bias Current-Max (IIB) @25C | 0.3 µA | |
| Common-mode Reject Ratio-Nom | 124 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 300 µV | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Low-Bias | NO | |
| Low-Offset | YES | |
| Micropower | NO | |
| Moisture Sensitivity Level | 3 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.12,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.85 mm | |
| Slew Rate-Nom | 3.7 V/us | |
| Supply Current-Max | 2.1 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 15900 | |
| Voltage Gain-Min | 70800 | |
| Wideband | NO | |
| Width | 3 mm |
ADA4084-2ACPZ-R7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADA4084-2ACPZ-R7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To ensure proper biasing, connect the VREF pin to a quiet, low-impedance voltage source, and decouple the VCC and VEE pins with 10uF and 100nF capacitors, respectively. Also, ensure the input common-mode voltage is within the recommended range.
-
The ADA4084-2ACPZ-R7 can drive up to 1nF of capacitive load. Exceeding this limit may cause instability or oscillations.
-
To minimize noise and interference, use shielded cables, keep the device away from high-frequency sources, and use a low-pass filter at the input. Also, ensure good PCB layout practices, such as separating analog and digital grounds.
-
The recommended operating temperature range for the ADA4084-2ACPZ-R7 is -40°C to +125°C. Operating outside this range may affect the device's performance and reliability.
