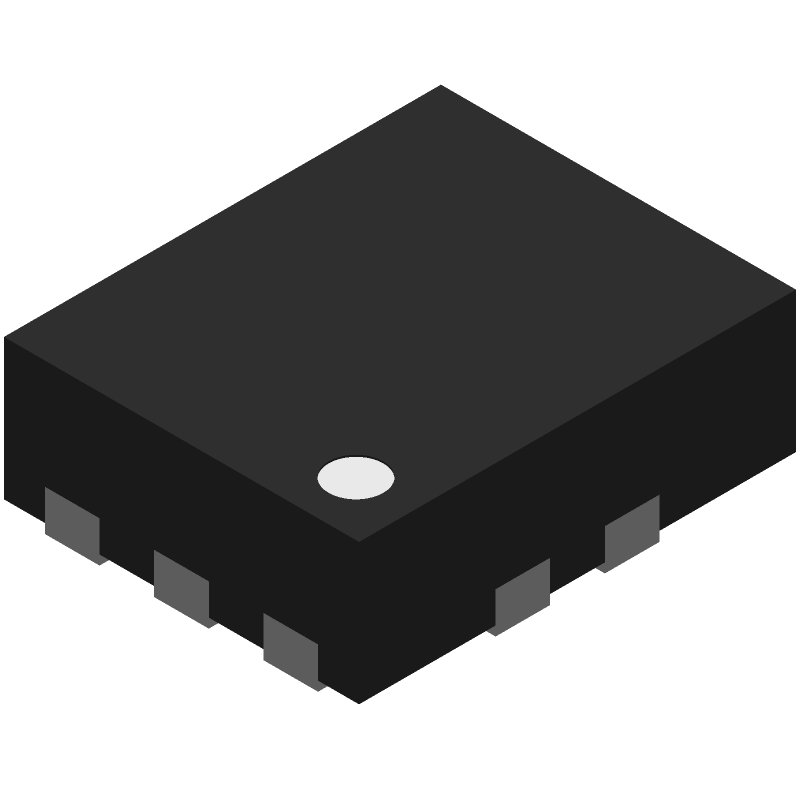

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADA4062-2ACPZ-R7 by Analog Devices Inc
Results Overview of ADA4062-2ACPZ-R7 by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADA4062-2ACPZ-R7 Information
ADA4062-2ACPZ-R7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4062-2ACPZ-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62AK1317
|
Newark | Op-Amp, 1.4Mhz, -40 To 125Deg C, Lfcsp Rohs Compliant: Yes |Analog Devices ADA4062-2ACPZ-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2305 |
|
$1.3000 / $2.6300 | Buy Now |
|
DISTI #
ADA4062-2ACPZ-R7CT-ND
|
DigiKey | IC OPAMP JFET 2 CIRCUIT 10LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2222 In Stock |
|
$1.2500 / $3.8800 | Buy Now |
|
DISTI #
584-ADA4062-2ACPZ-R7
|
Mouser Electronics | Operational Amplifiers - Op Amps Dual36vLowPwrLowCostJFETInputAmp RoHS: Compliant | 1200 |
|
$1.2800 / $2.6300 | Buy Now |
|
|
Analog Devices Inc | Dual36vLowPwrLowCostJFETInputA Min Qty: 1 Package Multiple: 3000 | 3445 |
|
$1.2500 / $3.8800 | Buy Now |
|
DISTI #
26647793
|
Verical | Op Amp Dual Low Power Amplifier ±15V 10-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 3000 |
|
$1.2369 | Buy Now |
|
|
Rochester Electronics | Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar RoHS: Compliant Status: Active Min Qty: 1 | 2768 |
|
$1.0600 / $1.3200 | Buy Now |
Part Details for ADA4062-2ACPZ-R7
ADA4062-2ACPZ-R7 CAD Models
ADA4062-2ACPZ-R7 Part Data Attributes
|
|
ADA4062-2ACPZ-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADA4062-2ACPZ-R7
Analog Devices Inc
Low Power JFET-Input Dual Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | 1.30 X 1.60 MM, 0.55 MM HEIGHT, ROHS COMPLIANT, LFCSP-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | CP-10-10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.005 µA | |
| Bias Current-Max (IIB) @25C | 0.00005 µA | |
| Common-mode Reject Ratio-Nom | 90 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 5000 µV | |
| JESD-30 Code | R-XQCC-N10 | |
| JESD-609 Code | e4 | |
| Length | 1.6 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 2 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | VQCCN | |
| Package Equivalence Code | LCC10,.05X.06,16 | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.6 mm | |
| Slew Rate-Nom | 3.3 V/us | |
| Supply Current-Max | 0.52 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | QUAD | |
| Unity Gain BW-Nom | 1400 | |
| Voltage Gain-Min | 3980 | |
| Width | 1.3 mm |
Alternate Parts for ADA4062-2ACPZ-R7
This table gives cross-reference parts and alternative options found for ADA4062-2ACPZ-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADA4062-2ACPZ-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADA4062-2ACPZ-R2 | Analog Devices Inc | Check for Price | DUAL OP-AMP, 5000uV OFFSET-MAX, 1.4MHz BAND WIDTH, QCC10, 1.30 X 1.60 MM, 0.55 MM HEIGHT, ROHS COMPLIANT, LFCSP-10 | ADA4062-2ACPZ-R7 vs ADA4062-2ACPZ-R2 |
ADA4062-2ACPZ-R7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADA4062-2ACPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure the ADA4062-2ACPZ-R7 operates within its specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat sources.
-
If the internal reference voltage is not used, the device will require an external reference voltage source. This may affect the overall accuracy and stability of the device. Additionally, the internal reference voltage is trimmed to ensure high accuracy, so using an external reference may compromise this accuracy.
-
Yes, the ADA4062-2ACPZ-R7 can be used in a single-supply configuration. However, this will affect the input common-mode range and the output voltage swing. It's essential to consult the datasheet and application notes for specific guidance on single-supply operation.
-
To troubleshoot issues with the ADA4062-2ACPZ-R7, start by checking the power supply voltage, decoupling, and PCB layout. Ensure that the device is properly bypassed and that the input and output signals are within the specified ranges. If the issue persists, consult the datasheet and application notes for guidance on troubleshooting and debugging.
