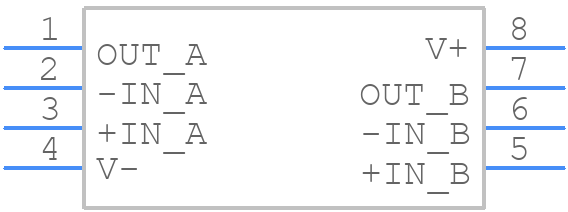

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADA4051-2ARMZ-R7 by Analog Devices Inc
Results Overview of ADA4051-2ARMZ-R7 by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
ADA4051-2ARMZ-R7 Information
ADA4051-2ARMZ-R7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4051-2ARMZ-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9046
|
Newark | Op-Amp, 125Khz, -40 To 125Deg C, Msop-8, No. Of Channels:2Channels, Gain Bandwidth Product:125Khz, Supply Voltage Range:1.8V To 5.5V, Ic Case/Package:Msop, No. Of Pins:8Pins, Amplifier Type:Zero Drift, Input Offset Voltage:2Μv Rohs Compliant: Yes |Analog Devices ADA4051-2ARMZ-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1914 |
|
$2.2600 / $4.0700 | Buy Now |
|
DISTI #
ADA4051-2ARMZ-R7CT-ND
|
DigiKey | IC OPAMP ZERO-DRIFT 2 CIRC 8MSOP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1399 In Stock |
|
$2.2625 / $5.9500 | Buy Now |
|
DISTI #
584-ADA4051-2ARMZ-R7
|
Mouser Electronics | Precision Amplifiers 1.8V, Power, Zero-Drift, RRIO Dual Amplifier RoHS: Compliant | 18195 |
|
$2.2600 / $3.8700 | Buy Now |
|
DISTI #
V72:2272_06217280
|
Arrow Electronics | Op Amp Dual Micropower Amplifier R-R I/O 5.5V 8-Pin MSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2131 Container: Cut Strips | Americas - 154 |
|
$2.3210 / $3.0040 | Buy Now |
|
|
Analog Devices Inc | Dual Micro Pwr Auto Zero Amp Min Qty: 1 Package Multiple: 1000 | 280 |
|
$2.2625 / $5.9500 | Buy Now |
|
|
Quest Components | OP-AMP, 15000 UV OFFSET-MAX, 0.125 MHZ BAND WIDTH, PDSO8 | 300 |
|
$3.0071 / $5.4675 | Buy Now |
|
|
Quest Components | OP-AMP, 15000 UV OFFSET-MAX, 0.125 MHZ BAND WIDTH, PDSO8 | 6 |
|
$3.6450 / $5.4675 | Buy Now |
|
|
LCSC | 125kHz 2uV 20pA Dual MSOP-8 Precision Op Amps ROHS | 6 |
|
$2.7775 / $4.2817 | Buy Now |
|
|
Win Source Electronics | IC OPAMP CHOPPER 125KHZ 8MSOP | 15970 |
|
$2.1199 / $2.7382 | Buy Now |
Part Details for ADA4051-2ARMZ-R7
ADA4051-2ARMZ-R7 CAD Models
ADA4051-2ARMZ-R7 Part Data Attributes
|
|
ADA4051-2ARMZ-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADA4051-2ARMZ-R7
Analog Devices Inc
1.8V, µPower, Zero-Drift, RRIO Dual Amplifier
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | ROHS COMPLIANT, MO-187AA, MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | CHOPPER-STAB | |
| Average Bias Current-Max (IIB) | 0.0002 µA | |
| Bias Current-Max (IIB) @25C | 0.00007 µA | |
| Common-mode Reject Ratio-Nom | 135 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 15000 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Low-Bias | YES | |
| Low-Offset | YES | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Slew Rate-Nom | 0.06 V/us | |
| Supply Current-Max | 0.034 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 125 | |
| Voltage Gain-Min | 100000 | |
| Width | 3 mm |
Alternate Parts for ADA4051-2ARMZ-R7
This table gives cross-reference parts and alternative options found for ADA4051-2ARMZ-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADA4051-2ARMZ-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADA4051-2ARMZ | Analog Devices Inc | $2.9570 | 1.8V, µPower, Zero-Drift, RRIO Dual Amplifier | ADA4051-2ARMZ-R7 vs ADA4051-2ARMZ |
| ADA4051-2ARMZ-R7 | Rochester Electronics LLC | Check for Price | OP-AMP, 15000 uV OFFSET-MAX, 0.125 MHz BAND WIDTH, PDSO8, ROHS COMPLIANT, MO-187AA, MSOP-8 | ADA4051-2ARMZ-R7 vs ADA4051-2ARMZ-R7 |
| ADA4051-2ARMZ | Rochester Electronics LLC | Check for Price | OP-AMP, 15000 uV OFFSET-MAX, 0.125 MHz BAND WIDTH, PDSO8, ROHS COMPLIANT, MO-187AA, MSOP-8 | ADA4051-2ARMZ-R7 vs ADA4051-2ARMZ |
ADA4051-2ARMZ-R7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADA4051-2ARMZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance.
-
Proper power supply decoupling is crucial for the ADA4051-2ARMZ-R7. Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close to the device as possible, and consider adding a 1uF capacitor in parallel for additional filtering.
-
The ADA4051-2ARMZ-R7 is rated for operation from -40°C to +125°C, but it's essential to consider the specific application's thermal requirements and ensure proper heat dissipation to prevent overheating.
-
To minimize EMI and ensure EMC, use proper shielding, grounding, and filtering techniques. Consider adding EMI filters or common-mode chokes to the input and output lines, and ensure the device is properly grounded and shielded.
-
Keep analog and digital signals separate, use differential signaling where possible, and avoid crossing analog and digital signal traces. Use a solid ground plane and consider using guard rings to reduce noise and crosstalk.
