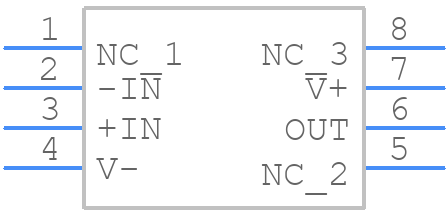

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADA4004-1ARZ by Analog Devices Inc
Results Overview of ADA4004-1ARZ by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Healthcare
Electronic Manufacturing
ADA4004-1ARZ Information
ADA4004-1ARZ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4004-1ARZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8195
|
Newark | Op-Amp, 12Mhz, -40 To 125Deg C, Nsoic-8, No. Of Channels:1Channels, Gain Bandwidth Product:12Mhz, Supply Voltage Range:± 5V To ± 15V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Amplifier Type:General Purpose, Rail To Rail:- Rohs Compliant: Yes |Analog Devices ADA4004-1ARZ RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 77 |
|
$3.3800 / $5.5700 | Buy Now |
|
DISTI #
505-ADA4004-1ARZ-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
23 In Stock |
|
$2.8875 / $7.1100 | Buy Now |
|
DISTI #
584-ADA4004-1ARZ
|
Mouser Electronics | Precision Amplifiers 36vLowNoise Precision OpAmp RoHS: Compliant | 1261 |
|
$2.9900 / $5.5700 | Buy Now |
|
|
Analog Devices Inc | 36vLowNoise Precision OpAmp Package Multiple: 98 | 31463 |
|
$1.3400 / $7.1100 | Buy Now |
|
DISTI #
26617445
|
Verical | Op Amp Single Precision Amplifier ±15V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 196 Package Multiple: 196 | Americas - 31360 |
|
$2.8571 | Buy Now |
|
|
Rochester Electronics | ADA4004 - Operational Amplifier, 300uV Offset-Max, BIPolar, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 42182 |
|
$2.4300 / $3.0400 | Buy Now |
Part Details for ADA4004-1ARZ
ADA4004-1ARZ CAD Models
ADA4004-1ARZ Part Data Attributes
|
|
ADA4004-1ARZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADA4004-1ARZ
Analog Devices Inc
1.8 nV/√Hz, 36 V, Precision Single Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.165 µA | |
| Bias Current-Max (IIB) @25C | 0.09 µA | |
| Common-mode Reject Ratio-Nom | 110 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 300 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | NO | |
| Low-Offset | YES | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 2.7 V/us | |
| Supply Current-Max | 2.4 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 12000 | |
| Voltage Gain-Min | 170000 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for ADA4004-1ARZ
This table gives cross-reference parts and alternative options found for ADA4004-1ARZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADA4004-1ARZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADA4004-1ARZ | Rochester Electronics LLC | Check for Price | OP-AMP, 300 uV OFFSET-MAX, 12 MHz BAND WIDTH, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8 | ADA4004-1ARZ vs ADA4004-1ARZ |
ADA4004-1ARZ Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADA4004-1ARZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
The ADA4004-1ARZ requires a single 3.3V or 5V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. The power sequencing requirement is to power up the analog supply (VCC) before the digital supply (VDD).
-
The recommended clock frequency for the ADA4004-1ARZ is between 1 MHz to 50 MHz. The clock signal should have a low jitter (<100 ps) and a signal amplitude of at least 2.5Vpp. A clock signal with a 50% duty cycle is recommended.
-
To optimize the ADA4004-1ARZ for low power consumption, use the lowest possible clock frequency, disable the internal reference voltage, and use the power-down mode when not in use. Additionally, consider using a lower power supply voltage and optimizing the analog input signal range.
-
The ADA4004-1ARZ has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. Use a thermal pad or a heat sink to dissipate heat, and ensure good airflow around the device.
