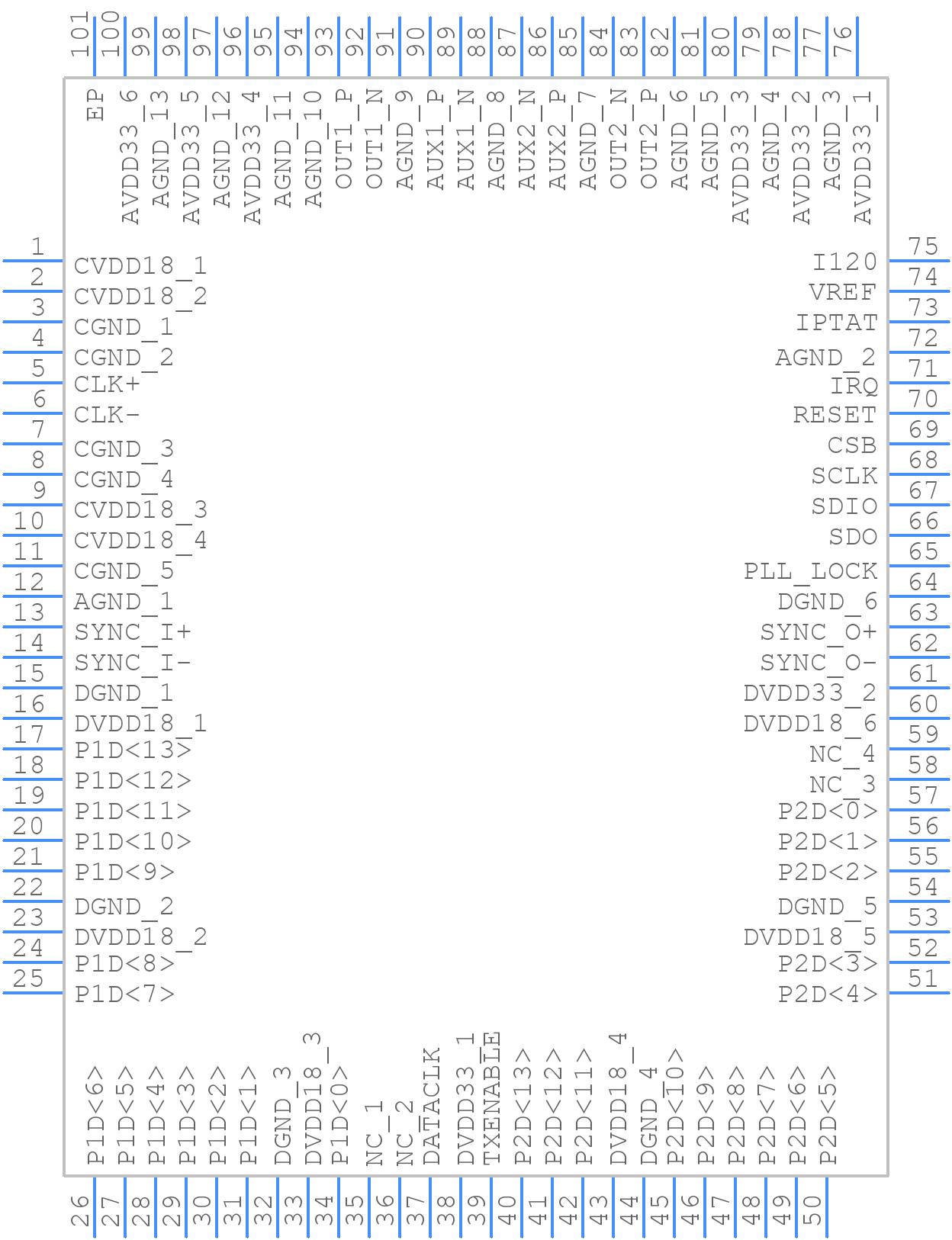

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD9778BSVZRL by Analog Devices Inc
Results Overview of AD9778BSVZRL by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD9778BSVZRL Information
AD9778BSVZRL by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD9778BSVZRL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-AD9778BSVZRL-ND
|
DigiKey | IC DAC 14BIT A-OUT 100TQFP Min Qty: 7 Lead time: 10 Weeks Container: Bulk MARKETPLACE PRODUCT |
2936 In Stock |
|
$49.0900 | Buy Now |
|
DISTI #
AD9778BSVZRLTR-ND
|
DigiKey | IC DAC 14BIT A-OUT 100TQFP Min Qty: 7 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$44.9500 | Buy Now |
|
DISTI #
584-AD9778BSVZR
|
Mouser Electronics | Digital to Analog Converters - DAC Dual 14B, 1.0 GSPS TxDAC RoHS: Compliant | 0 |
|
$44.9500 | Order Now |
|
|
Analog Devices Inc | Dual 14B, 1.0 GSPS TxDAC Min Qty: 1000 Package Multiple: 1000 | 0 |
|
$44.9500 / $65.3900 | Buy Now |
|
|
Rochester Electronics | D/A Converter, 2 Func, Parallel, Word Input Loading, PQFP100 RoHS: Compliant Status: Active Min Qty: 1 | 2936 |
|
$37.8600 / $47.3200 | Buy Now |
|
DISTI #
AD9778BSVZRL
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 1000 | 0 |
|
$47.0200 | Buy Now |
Part Details for AD9778BSVZRL
AD9778BSVZRL CAD Models
AD9778BSVZRL Part Data Attributes
|
|
AD9778BSVZRL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9778BSVZRL
Analog Devices Inc
Dual 14-Bit, 1 GSPS, Digital-to-Analog Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFP | |
| Package Description | LEAD FREE, MS-026AED-HD, TQFP-100 | |
| Pin Count | 100 | |
| Manufacturer Package Code | SV-100-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 1 V | |
| Analog Output Voltage-Min | -1 V | |
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | PARALLEL, WORD | |
| JESD-30 Code | S-PQFP-G100 | |
| JESD-609 Code | e3 | |
| Length | 14 mm | |
| Linearity Error-Max (EL) | 0.0061% | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 14 | |
| Number of Functions | 2 | |
| Number of Terminals | 100 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTFQFP | |
| Package Equivalence Code | TQFP100,.63SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 14 mm |
