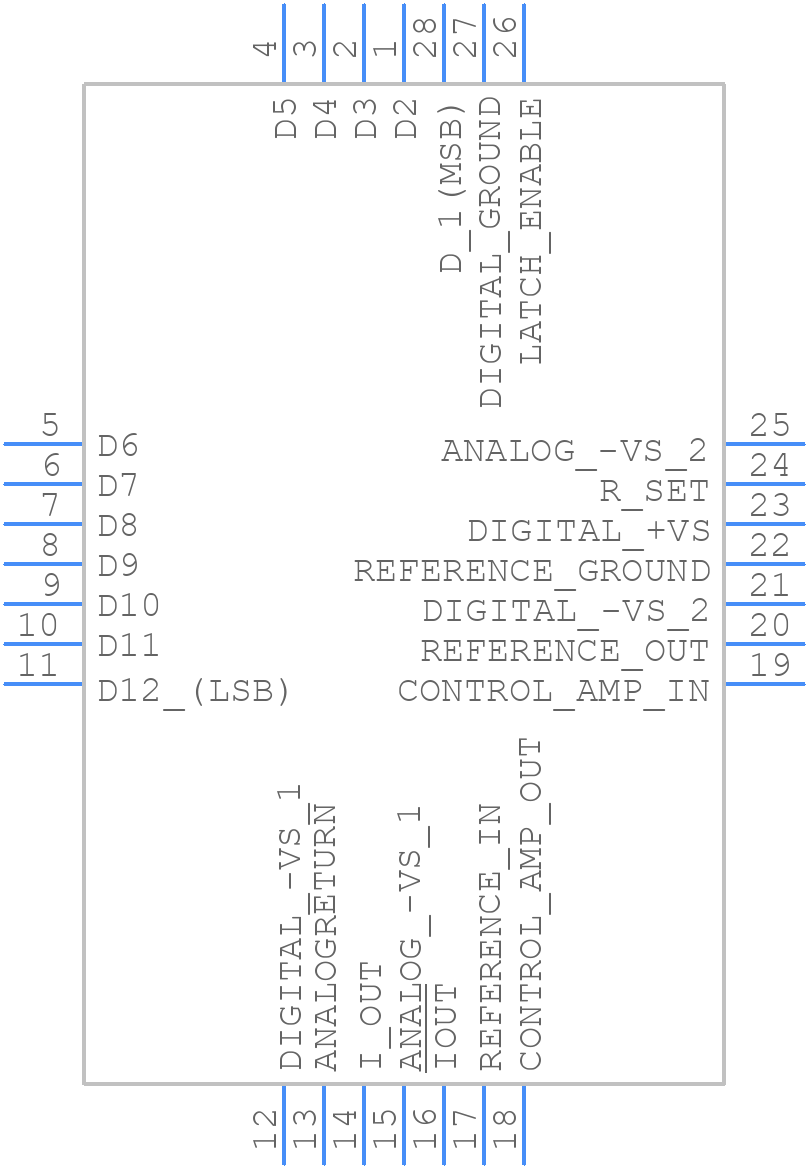

Part Symbol
-

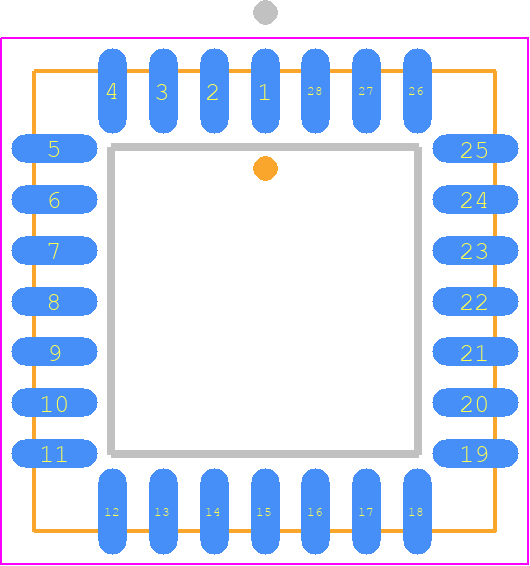

Footprint
-

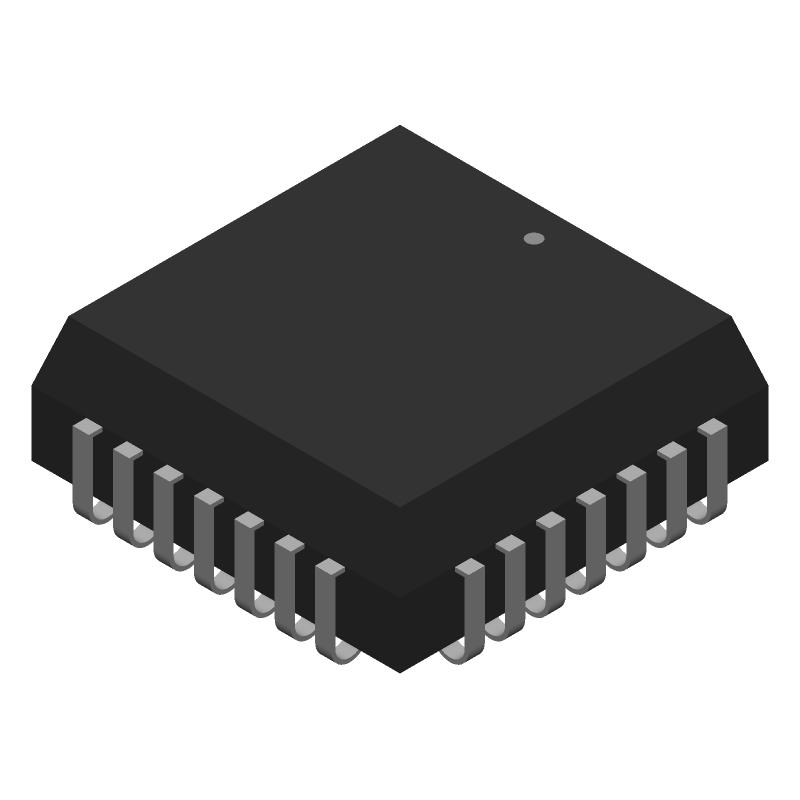

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD9713BAP by Analog Devices Inc
Results Overview of AD9713BAP by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD9713BAP Information
AD9713BAP by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD9713BAP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 158 |
|
RFQ | ||
|
|
Bristol Electronics | 114 |
|
RFQ | ||
|
|
Quest Components | IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,LDCC,28PIN | 764 |
|
$31.3800 / $41.8400 | Buy Now |
|
|
Quest Components | IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,LDCC,28PIN | 247 |
|
$20.6460 / $26.6400 | Buy Now |
|
|
Quest Components | IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,LDCC,28PIN | 98 |
|
$36.8000 / $41.6000 | Buy Now |
|
|
Quest Components | IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,LDCC,28PIN | 53 |
|
$49.4240 / $61.7800 | Buy Now |
|
|
Quest Components | IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,LDCC,28PIN | 33 |
|
$35.7000 / $42.0000 | Buy Now |
|
|
Quest Components | IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,LDCC,28PIN | 8 |
|
$34.7521 / $36.5812 | Buy Now |
|
|
Quest Components | IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,LDCC,28PIN | 4 |
|
$60.8000 / $64.0000 | Buy Now |
|
|
ComSIT USA | 12-BIT, 100 MSPS D/A CONVERTER D/A Converter, 1 Func, Parallel, Word Input Loading, 0.027us Settling Time, PQCC28 RoHS: Not Compliant |
|
|
RFQ |
Part Details for AD9713BAP
AD9713BAP CAD Models
AD9713BAP Part Data Attributes
|
|
AD9713BAP
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9713BAP
Analog Devices Inc
IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, PQCC28, PLASTIC, LCC-28, Digital to Analog Converter
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QLCC | |
| Package Description | PLASTIC, LCC-28 | |
| Pin Count | 28 | |
| Reach Compliance Code | not_compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | PARALLEL, WORD | |
| JESD-30 Code | S-PQCC-J28 | |
| JESD-609 Code | e0 | |
| Length | 11.5062 mm | |
| Linearity Error-Max (EL) | 0.0488% | |
| Negative Supply Voltage-Nom | -5.2 V | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QCCJ | |
| Package Equivalence Code | LDCC28,.5SQ | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 220 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 4.57 mm | |
| Settling Time-Nom (tstl) | 0.027 µs | |
| Supply Current-Max | 188 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | OTHER | |
| Terminal Finish | Tin/Lead (Sn85Pb15) | |
| Terminal Form | J BEND | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 11.5062 mm |
Alternate Parts for AD9713BAP
This table gives cross-reference parts and alternative options found for AD9713BAP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD9713BAP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD9713BBP | Analog Devices Inc | Check for Price | IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, PQCC28, PLASTIC, LCC-28, Digital to Analog Converter | AD9713BAP vs AD9713BBP |
| AD9713ASJ | Analog Devices Inc | Check for Price | IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, CQCC28, J LEAD, CERAMIC PACKAGE-28, Digital to Analog Converter | AD9713BAP vs AD9713ASJ |
| AD9713JP | Analog Devices Inc | Check for Price | IC PARALLEL, WORD INPUT LOADING, 0.03 us SETTLING TIME, 12-BIT DAC, PQCC28, PLASTIC, LCC-28, Digital to Analog Converter | AD9713BAP vs AD9713JP |
| AD9713BAP-REEL | Analog Devices Inc | Check for Price | IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, PQCC28, PLASTIC, LCC-28, Digital to Analog Converter | AD9713BAP vs AD9713BAP-REEL |
| 5962-9091104M3A | Analog Devices Inc | Check for Price | IC PARALLEL, WORD INPUT LOADING, 0.022 us SETTLING TIME, 12-BIT DAC, CQCC28, CERAMIC, LCC-28, Digital to Analog Converter | AD9713BAP vs 5962-9091104M3A |
| 5962-9091104M3X | Analog Devices Inc | Check for Price | IC PARALLEL, WORD INPUT LOADING, 0.022 us SETTLING TIME, 12-BIT DAC, CQCC28, CERAMIC, LCC-28, Digital to Analog Converter | AD9713BAP vs 5962-9091104M3X |
| 5962-9091104M3X | Defense Logistics Agency | Check for Price | D/A Converter, 1 Func, Parallel, Word Input Loading, 0.022us Settling Time, CQCC28, CERAMIC, LCC-28 | AD9713BAP vs 5962-9091104M3X |
| AD9712ASQ | Analog Devices Inc | Check for Price | IC PARALLEL, WORD INPUT LOADING, 0.022 us SETTLING TIME, 12-BIT DAC, CDIP28, CERDIP-28, Digital to Analog Converter | AD9713BAP vs AD9712ASQ |
| AD9713BTE | Analog Devices Inc | Check for Price | IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, CQCC28, CERAMIC, LCC-28, Digital to Analog Converter | AD9713BAP vs AD9713BTE |
AD9713BAP Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signal. This ensures proper operation and prevents damage to the device.
-
To optimize performance, use a low-noise power supply, decouple the power pins with 0.1uF and 10uF capacitors, and use a low-noise analog input signal. Additionally, consider using a shielded enclosure and minimizing digital noise coupling.
-
The maximum allowable input signal amplitude is 2.5Vpp differential, which is the maximum rating for the device. Exceeding this amplitude may result in distortion, clipping, or damage to the device.
-
For single-ended operation, connect the negative input pin to AGND and apply the signal to the positive input pin. For differential operation, apply the differential signal to the positive and negative input pins, ensuring that the common-mode voltage is within the specified range.
-
The VREF pin is used to set the internal reference voltage for the ADC. It can be connected to an external reference voltage source or left unconnected to use the internal reference voltage.
