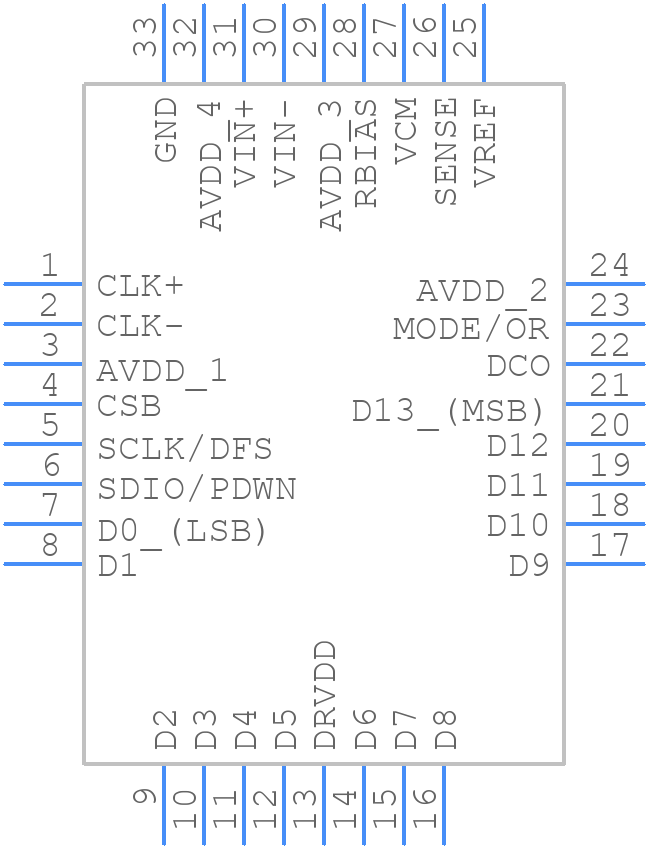

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD9649BCPZ-40 by Analog Devices Inc
Results Overview of AD9649BCPZ-40 by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD9649BCPZ-40 Information
AD9649BCPZ-40 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD9649BCPZ-40
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7866
|
Newark | Adc, 14Bit, 40Msps, Lfcsp-32, Resolution (Bits):14Bit, Sampling Rate:40Msps, Input Channel Type:Differential, Single Ended, Data Interface:Spi, Supply Voltage Type:Single, Supply Voltage Min:1.7V, Supply Voltage Max:1.9V Rohs Compliant: Yes |Analog Devices AD9649BCPZ-40 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 54 |
|
$27.6200 / $39.0000 | Buy Now |
|
DISTI #
505-AD9649BCPZ-40-ND
|
DigiKey | IC ADC 14BIT PIPELINED 32LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
160 In Stock |
|
$26.9500 / $39.0000 | Buy Now |
|
DISTI #
584-AD9649BCPZ-40
|
Mouser Electronics | Analog to Digital Converters - ADC 14 Bit 40 Msps ADC RoHS: Compliant | 10 |
|
$27.7600 / $40.3800 | Buy Now |
|
|
Analog Devices Inc | 14 Bit 40 Msps ADC Package Multiple: 1 | 578 |
|
$20.0100 / $39.0000 | Buy Now |
|
DISTI #
26617311
|
Verical | 1-Channel Single ADC Pipelined 40Msps 14-bit Parallel/Serial 32-Pin LFCSP EP Tray RoHS: Compliant Min Qty: 23 Package Multiple: 23 | Americas - 529 |
|
$27.1195 | Buy Now |
|
DISTI #
AD9649BCPZ-40
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 23 | 0 |
|
$28.1900 / $31.4200 | Buy Now |
|
|
LCSC | 14 Positions 1.7V1.9V 40MHz LFCSP-32(5x5) Analog to Digital Converters (ADC) ROHS | 60 |
|
$14.3868 / $18.6944 | Buy Now |
|
|
Vyrian | Converters | 137 |
|
RFQ | |
|
|
Win Source Electronics | 14-Bit, 20/40/65/80 MSPS 1.8 V Analog-to-Digital Converter | IC ADC 14BIT PIPELINED 32LFCSP | 2000 |
|
$12.6281 / $16.3113 | Buy Now |
Part Details for AD9649BCPZ-40
AD9649BCPZ-40 CAD Models
AD9649BCPZ-40 Part Data Attributes
|
|
AD9649BCPZ-40
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9649BCPZ-40
Analog Devices Inc
14-Bit, 20/40/65/80 MSPS, 1.8 V Analog-to-Digital Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | LFCSP-32 | |
| Pin Count | 32 | |
| Manufacturer Package Code | CP-32-11 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.C.3 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 2 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 0.025 µs | |
| Converter Type | ADC, FLASH METHOD | |
| JESD-30 Code | S-XQCC-N32 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Linearity Error-Max (EL) | 0.0079% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY, GRAY CODE | |
| Output Format | PARALLEL, WORD | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC32,.2SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 40 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 mm |
Alternate Parts for AD9649BCPZ-40
This table gives cross-reference parts and alternative options found for AD9649BCPZ-40. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD9649BCPZ-40, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD9649BCPZ-20 | Analog Devices Inc | $16.9490 | 14-Bit, 20/40/65/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9649BCPZ-40 vs AD9649BCPZ-20 |
| AD9649BCPZ-80 | Analog Devices Inc | $47.8778 | 14-Bit, 20/40/65/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9649BCPZ-40 vs AD9649BCPZ-80 |
| AD9609BCPZ-80 | Analog Devices Inc | $8.8542 | 10-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9649BCPZ-40 vs AD9609BCPZ-80 |
| AD9649BCPZRL7-65 | Analog Devices Inc | Check for Price | 14-Bit, 20/40/65/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9649BCPZ-40 vs AD9649BCPZRL7-65 |
| AD9629BCPZ-80 | Analog Devices Inc | Check for Price | 12-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9649BCPZ-40 vs AD9629BCPZ-80 |
| AD9237BCPZRL7-20 | Analog Devices Inc | Check for Price | IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, QCC32, LEAD FREE, MO-220-VHHD, LFSCP-32, Analog to Digital Converter | AD9649BCPZ-40 vs AD9237BCPZRL7-20 |
| AD9237BCPZ-20 | Analog Devices Inc | Check for Price | IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, QCC32, LEAD FREE, MO-220-VHHD, LFSCP-32, Analog to Digital Converter | AD9649BCPZ-40 vs AD9237BCPZ-20 |
| AD9629BCPZRL7-40 | Analog Devices Inc | Check for Price | 12-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9649BCPZ-40 vs AD9629BCPZRL7-40 |
| AD9237BCPZRL7-65 | Analog Devices Inc | Check for Price | IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, QCC32, LEAD FREE, MO-220-VHHD, LFSCP-32, Analog to Digital Converter | AD9649BCPZ-40 vs AD9237BCPZRL7-65 |
| AD9237BCPZ-65 | Analog Devices Inc | Check for Price | IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, QCC32, LEAD FREE, MO-220-VHHD, LFSCP-32, Analog to Digital Converter | AD9649BCPZ-40 vs AD9237BCPZ-65 |
AD9649BCPZ-40 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and decouple the power pins with 0.1uF and 10uF capacitors.
-
Use a low-jitter clock source (<100ps) and a 50Ω transmission line to drive the clock input. Terminate the clock line with a 50Ω resistor to match the impedance. Use a clock frequency that is a multiple of the sampling frequency to minimize jitter.
-
Power up the analog supply (AVDD) first, followed by the digital supply (DVDD). Ensure that the analog supply is stable before applying the clock signal. Finally, apply the digital input signals.
-
Use a FIFO or a buffer to handle the high-speed output data. Ensure that the receiving device can handle the data rate and format. Use a serializer or a deserializer if necessary. Consider using a data capture card or a logic analyzer for debugging.
-
Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device. Keep the device away from heat sources and avoid blocking airflow. Consider using a thermal interface material to improve heat transfer.
