AD9609BCPZRL7-80 Information
AD9609BCPZRL7-80 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD9609BCPZRL7-80
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
AD9609BCPZRL7-80TR-ND
|
DigiKey | IC ADC 10BIT PIPELINED 32LFCSP Min Qty: 1500 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$8.0125 | Buy Now |
|
DISTI #
584-AD9609BCPZR7-80
|
Mouser Electronics | Analog to Digital Converters - ADC 10 Bit 80 Msps Low Pwr ADC RoHS: Compliant | 0 |
|
$8.0100 | Order Now |
|
|
Analog Devices Inc | 10 Bit 80 Msps Low Pwr ADC Min Qty: 1500 Package Multiple: 1500 | 1500 |
|
$5.9600 / $16.2000 | Buy Now |
|
DISTI #
26694375
|
Verical | 1-Channel Single ADC Pipelined 80Msps 10-bit Parallel 32-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | Americas - 1500 |
|
$7.9283 | Buy Now |
|
DISTI #
AD9609BCPZR7-80
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 1500 | 0 |
|
$8.3800 | Buy Now |
Part Details for AD9609BCPZRL7-80

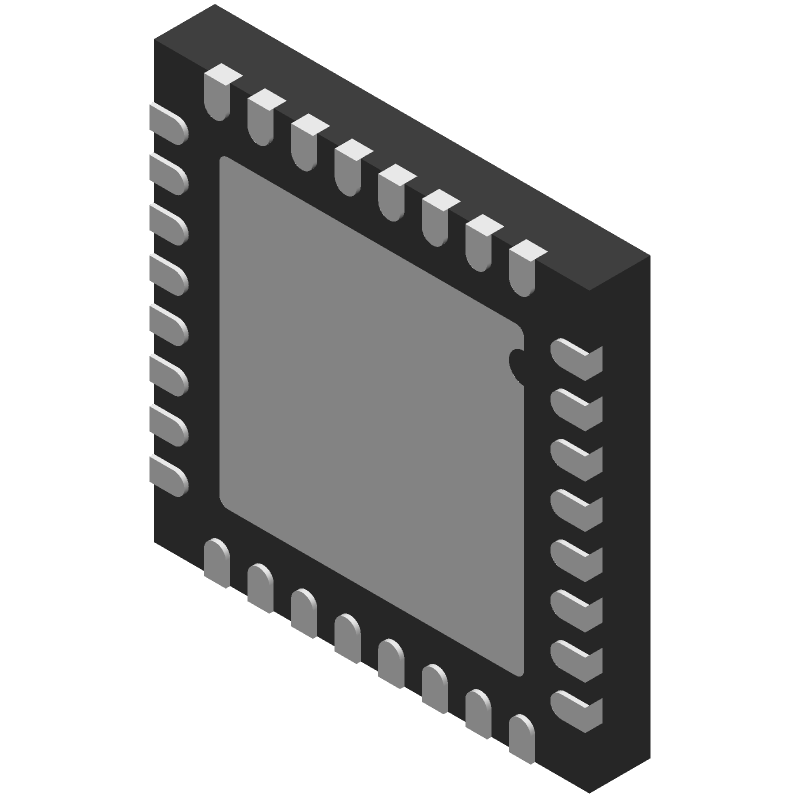

AD9609BCPZRL7-80 CAD Models
AD9609BCPZRL7-80 Part Data Attributes
|
|
AD9609BCPZRL7-80
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9609BCPZRL7-80
Analog Devices Inc
10-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | LFCSP-32 | |
| Pin Count | 32 | |
| Manufacturer Package Code | CP-32-11 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 2 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 0.0125 µs | |
| Converter Type | ADC, FLASH METHOD | |
| JESD-30 Code | S-XQCC-N32 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Linearity Error-Max (EL) | 0.0439% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 10 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY, GRAY CODE | |
| Output Format | PARALLEL, WORD | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC32,.2SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 80 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 mm |
Alternate Parts for AD9609BCPZRL7-80
This table gives cross-reference parts and alternative options found for AD9609BCPZRL7-80. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD9609BCPZRL7-80, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD9649BCPZ-20 | Analog Devices Inc | $16.9490 | 14-Bit, 20/40/65/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9609BCPZRL7-80 vs AD9649BCPZ-20 |
| AD9649BCPZ-80 | Analog Devices Inc | $47.8778 | 14-Bit, 20/40/65/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9609BCPZRL7-80 vs AD9649BCPZ-80 |
| AD9609BCPZ-80 | Analog Devices Inc | $8.8542 | 10-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9609BCPZRL7-80 vs AD9609BCPZ-80 |
| AD9649BCPZRL7-65 | Analog Devices Inc | Check for Price | 14-Bit, 20/40/65/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9609BCPZRL7-80 vs AD9649BCPZRL7-65 |
| AD9629BCPZ-80 | Analog Devices Inc | Check for Price | 12-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9609BCPZRL7-80 vs AD9629BCPZ-80 |
| AD9237BCPZRL7-20 | Analog Devices Inc | Check for Price | IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, QCC32, LEAD FREE, MO-220-VHHD, LFSCP-32, Analog to Digital Converter | AD9609BCPZRL7-80 vs AD9237BCPZRL7-20 |
| AD9237BCPZ-20 | Analog Devices Inc | Check for Price | IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, QCC32, LEAD FREE, MO-220-VHHD, LFSCP-32, Analog to Digital Converter | AD9609BCPZRL7-80 vs AD9237BCPZ-20 |
| AD9629BCPZRL7-40 | Analog Devices Inc | Check for Price | 12-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9609BCPZRL7-80 vs AD9629BCPZRL7-40 |
| AD9237BCPZRL7-65 | Analog Devices Inc | Check for Price | IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, QCC32, LEAD FREE, MO-220-VHHD, LFSCP-32, Analog to Digital Converter | AD9609BCPZRL7-80 vs AD9237BCPZRL7-65 |
| AD9237BCPZ-65 | Analog Devices Inc | Check for Price | IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, QCC32, LEAD FREE, MO-220-VHHD, LFSCP-32, Analog to Digital Converter | AD9609BCPZRL7-80 vs AD9237BCPZ-65 |
AD9609BCPZRL7-80 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. The AD9609 should be placed near the analog signal sources, and the digital outputs should be routed away from the analog inputs to minimize digital noise coupling.
-
The clock input should be a low-jitter, differential clock signal with a frequency of 80 MHz. The clock signal should be routed close to the AD9609 and should not be shared with other devices. A clock jitter of less than 100 ps is recommended for optimal performance.
-
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This sequence helps to prevent latch-up and ensures proper device operation.
-
The AD9609 outputs 14-bit data in a CMOS-compatible format. The output data should be captured by a FPGA or ASIC that can handle the high-speed data. The output data should be synchronized with the clock signal to ensure proper data capture.
-
The AD9609 is a high-speed device that dissipates heat. A thermal management strategy should be implemented to keep the device temperature below 85°C. This can be achieved by using a heat sink, thermal interface material, and a well-designed PCB with thermal vias.
