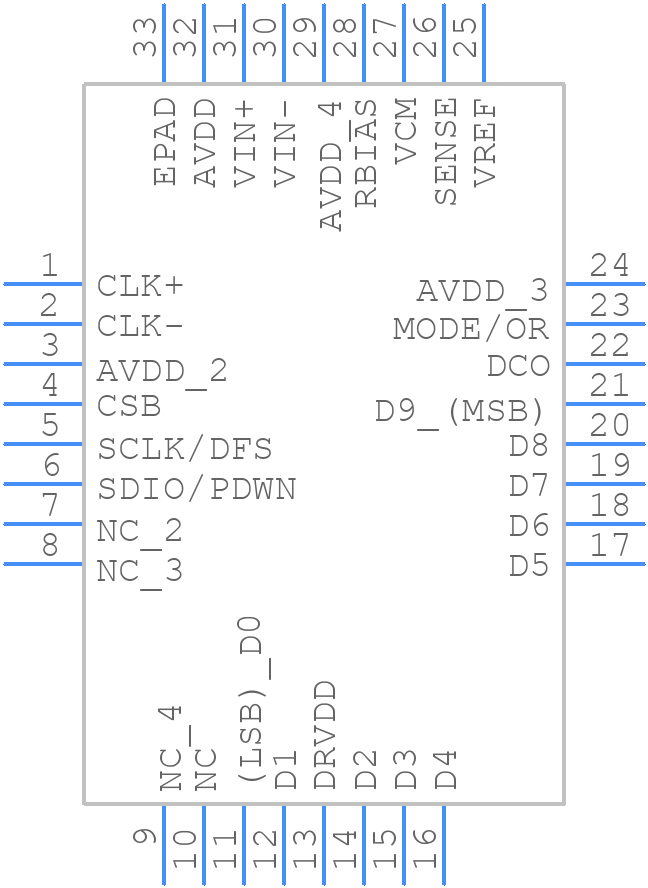

Part Symbol
-
Footprint
-

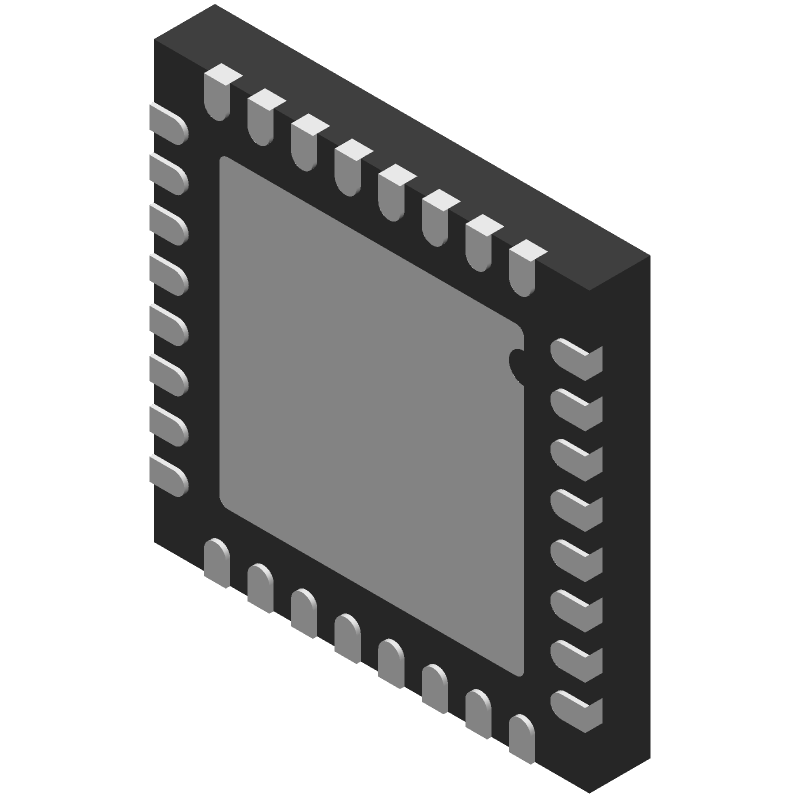

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD9609BCPZ-65 by Analog Devices Inc
Results Overview of AD9609BCPZ-65 by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD9609BCPZ-65 Information
AD9609BCPZ-65 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD9609BCPZ-65
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK9939
|
Newark | Adc, 10Bit, 65Msps, Lfcsp-32, Resolution (Bits):10Bit, Sampling Rate:65Msps, Input Channel Type:Differential, Data Interface:Spi, Supply Voltage Type:Single, Supply Voltage Min:1.7V, Supply Voltage Max:1.9V, No. Of Pins:32Pins Rohs Compliant: Yes |Analog Devices AD9609BCPZ-65 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 67 |
|
$7.4300 / $11.4900 | Buy Now |
|
DISTI #
505-AD9609BCPZ-65-ND
|
DigiKey | IC ADC 10BIT PIPELINED 32LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
338 In Stock |
|
$7.4250 / $14.3700 | Buy Now |
|
DISTI #
584-AD9609BCPZ-65
|
Mouser Electronics | Analog to Digital Converters - ADC 10 Bit 65 Msps Low Pwr ADC RoHS: Compliant | 30 |
|
$7.4300 / $11.4900 | Buy Now |
|
DISTI #
E54:1762_00539538
|
Arrow Electronics | 1-Channel Single ADC Pipelined 65Msps 10-bit Parallel 32-Pin LFCSP EP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2435 | Europe - 114 |
|
$8.1858 / $15.2395 | Buy Now |
|
|
Analog Devices Inc | 10 Bit 65 Msps Low Pwr ADC Package Multiple: 1 | 68 |
|
$5.5200 / $14.3700 | Buy Now |
|
DISTI #
87026824
|
Verical | 1-Channel Single ADC Pipelined 65Msps 10-bit Parallel 32-Pin LFCSP EP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2435 | Americas - 114 |
|
$16.0488 | Buy Now |
|
DISTI #
AD9609BCPZ-65
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 84 | 0 |
|
$7.7700 / $8.3000 | Buy Now |
Part Details for AD9609BCPZ-65
AD9609BCPZ-65 CAD Models
AD9609BCPZ-65 Part Data Attributes
|
|
AD9609BCPZ-65
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9609BCPZ-65
Analog Devices Inc
10-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | LFCSP-32 | |
| Pin Count | 32 | |
| Manufacturer Package Code | CP-32-11 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 2 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 0.015 µs | |
| Converter Type | ADC, FLASH METHOD | |
| JESD-30 Code | S-XQCC-N32 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Linearity Error-Max (EL) | 0.0439% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 10 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY, GRAY CODE | |
| Output Format | PARALLEL, WORD | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC32,.2SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 65 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 mm |
AD9609BCPZ-65 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital sections separate, and use a common mode filter to reduce noise.
-
Use a low-jitter clock source (<100 ps) and ensure the clock signal is properly terminated. A clock frequency of 1.25 GHz or higher is recommended for optimal performance.
-
Power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock input. Ensure all supplies are stable before applying the clock signal.
-
Use a low-latency, high-speed interface (e.g., JESD204B) to transmit the output data. Ensure the receiving device can handle the high-speed data rate (up to 12.5 Gbps).
-
Use a heat sink or thermal pad to dissipate heat. Ensure good airflow around the device, and consider using a thermal interface material to improve heat transfer.
