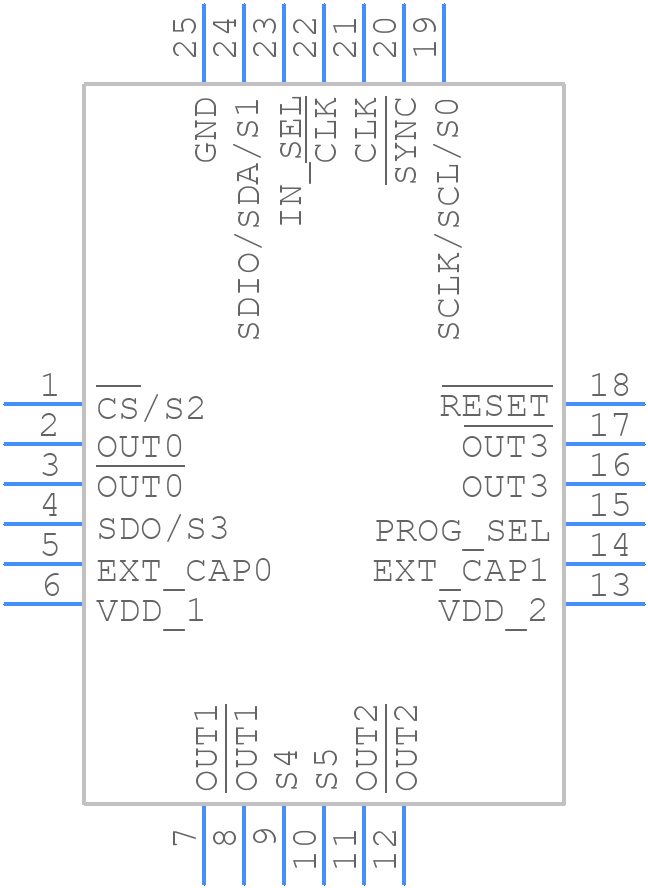

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD9508SCPZ-EP by Analog Devices Inc
Results Overview of AD9508SCPZ-EP by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
AD9508SCPZ-EP Information
AD9508SCPZ-EP by Analog Devices Inc is a Clock Driver.
Clock Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for AD9508SCPZ-EP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7838
|
Newark | Clock Fanout Buffer Ic, 3.465V, Lfcsp, Clock Ic Type:Clock Divider, Fanout Buffer, Frequency:1.65Ghz, No. Of Outputs:4Outputs, Supply Voltage Min:2.375V, Supply Voltage Max:3.465V, Clock Ic Case Style:Lfcsp, No. Of Pins:24Pins Rohs Compliant: Yes |Analog Devices AD9508SCPZ-EP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 115 |
|
$12.5100 / $20.2500 | Buy Now |
|
DISTI #
AD9508SCPZ-EP-ND
|
DigiKey | IC CLK BUFFER 1:4 1.2GHZ 24LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Tray | Temporarily Out of Stock |
|
$11.9625 / $20.6700 | Buy Now |
|
DISTI #
584-AD9508SCPZ-EP
|
Mouser Electronics | Clock Drivers & Distribution 1:4 Distribution IC, Dividers, Delay Adj RoHS: Compliant | 17 |
|
$11.9600 / $20.3300 | Buy Now |
|
DISTI #
V99:2348_06216221
|
Arrow Electronics | Clock Fanout Buffer 4-OUT 1-IN 1:4 24-Pin LFCSP EP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2327 | Americas - 16 |
|
$12.1500 / $19.4200 | Buy Now |
|
|
Analog Devices Inc | 1:4 Distribution IC, Dividers, Package Multiple: 1 | 2796 |
|
$8.8700 / $20.6700 | Buy Now |
|
DISTI #
26925263
|
Verical | Clock Fanout Buffer 4-OUT 1-IN 1:4 24-Pin LFCSP EP Tray RoHS: Compliant Min Qty: 52 Package Multiple: 52 | Americas - 2704 |
|
$11.8367 | Buy Now |
|
|
Rochester Electronics | Low Skew Clock Driver, 9508 Series, 8 True Output(s), CMOS RoHS: Compliant Status: Active Min Qty: 1 | 38 |
|
$10.0700 / $12.5900 | Buy Now |
Part Details for AD9508SCPZ-EP
AD9508SCPZ-EP CAD Models
AD9508SCPZ-EP Part Data Attributes
|
|
AD9508SCPZ-EP
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9508SCPZ-EP
Analog Devices Inc
1.65 GHz Clock Fanout Buffer with Output Dividers and Delay Adjust
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | CP-24-15 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Family | 9508 | |
| Input Conditioning | DIFFERENTIAL MUX | |
| JESD-30 Code | S-XQCC-N24 | |
| Length | 4 mm | |
| Logic IC Type | LOW SKEW CLOCK DRIVER | |
| Max I(ol) | 0.01 A | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Inverted Outputs | ||
| Number of Terminals | 24 | |
| Number of True Outputs | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC24,.16SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 3.14 ns | |
| Propagation Delay (tpd) | 3.14 ns | |
| Qualification Status | Not Qualified | |
| Same Edge Skew-Max (tskwd) | 0.965 ns | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max (Vsup) | 2.625 V | |
| Supply Voltage-Min (Vsup) | 2.375 V | |
| Supply Voltage-Nom (Vsup) | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Nickel/Silver/Gold (Ni/Ag/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 4 mm | |
| fmax-Min | 1200 MHz |
AD9508SCPZ-EP Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep analog and digital signals separate, and use decoupling capacitors close to the device. Refer to the ADI application note AN-756 for more details.
-
Follow the calibration procedure outlined in the datasheet, which involves setting the internal calibration registers and adjusting the gain and offset settings. You may also need to perform external calibration using an external reference voltage.
-
The maximum clock frequency is 100 MHz, but it's recommended to use a clock frequency of 50 MHz or less to ensure optimal performance and minimize jitter.
-
The AD9508SCPZ-EP is designed to operate from a single 3.3V supply, but it can tolerate a supply voltage range of 3.0V to 3.6V. However, operating the device outside of its recommended supply voltage range may affect its performance and reliability.
-
Use the device's built-in diagnostic features, such as the error flags and status registers, to identify the source of the issue. Also, check the device's power supply, clock signal, and input signals for any anomalies or noise.
