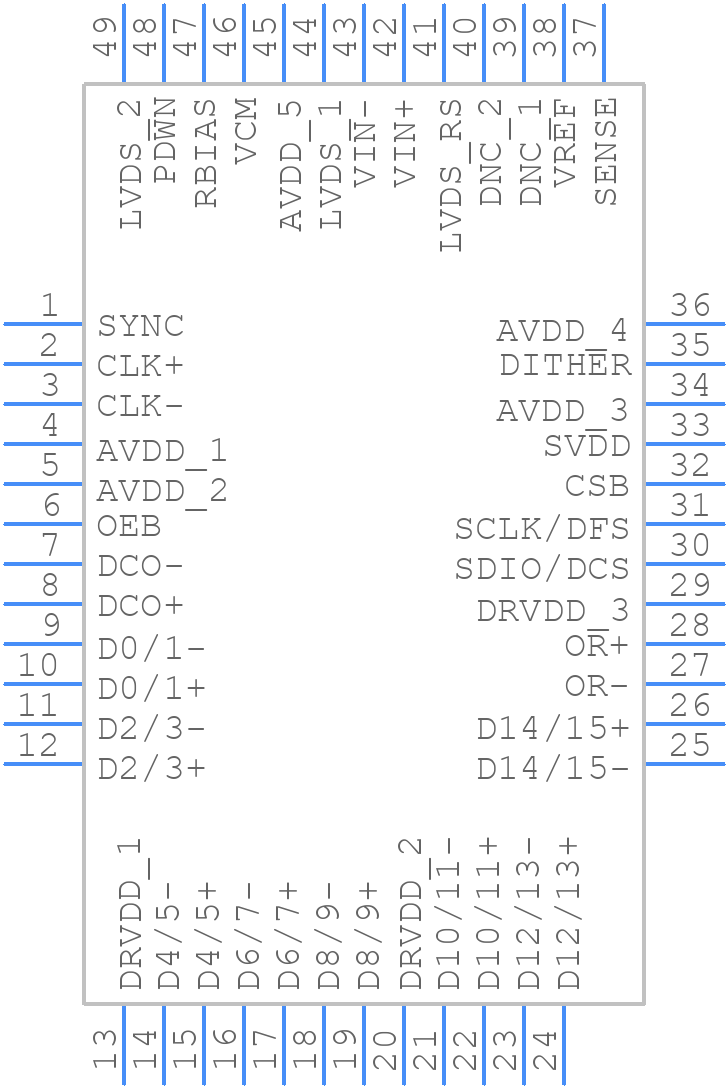

Part Symbol
-

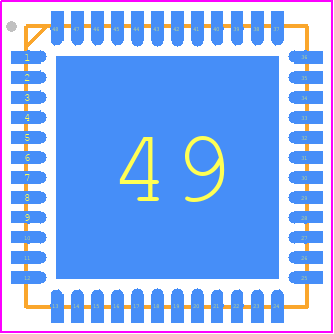

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD9265BCPZ-105 by Analog Devices Inc
Results Overview of AD9265BCPZ-105 by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD9265BCPZ-105 Information
AD9265BCPZ-105 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD9265BCPZ-105
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7825
|
Newark | Adc, 16Bit, 105Msps, Lfcsp-48, Resolution (Bits):16Bit, Sampling Rate:105Msps, Input Channel Type:Differential, Single Ended, Data Interface:Serial, Spi, Supply Voltage Type:Single, Supply Voltage Min:1.7V, Supply Voltage Max:1.9V Rohs Compliant: Yes |Analog Devices AD9265BCPZ-105 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 3 |
|
$100.3600 / $121.4700 | Buy Now |
|
DISTI #
AD9265BCPZ-105-ND
|
DigiKey | IC ADC 16BIT PIPELINED 48LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
39 In Stock |
|
$100.9250 / $114.3000 | Buy Now |
|
DISTI #
584-AD9265BCPZ-105
|
Mouser Electronics | Analog to Digital Converters - ADC 16 Bit 105 Msps high SNR 1.8 RoHS: Compliant | 2 |
|
$106.3500 / $128.2100 | Buy Now |
|
DISTI #
26634410
|
Verical | 1-Channel Single ADC Pipelined 105Msps 16-bit Parallel 48-Pin LFCSP EP Tray RoHS: Compliant Min Qty: 6 Package Multiple: 6 | Americas - 3048 |
|
$101.5597 | Buy Now |
|
|
Quest Components | 1-CH 16-BIT FLASH METHOD ADC, PARALLEL ACCESS, QCC48 | 1 |
|
$159.6000 / $168.0000 | Buy Now |
|
|
NexGen Digital | 1 |
|
RFQ | ||
|
DISTI #
AD9265BCPZ-105
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 6 | 0 |
|
$105.5800 / $121.1100 | Buy Now |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 12 |
|
$110.0000 / $169.2300 | Buy Now |
|
|
Cytech Systems Limited | IC ADC 16BIT PIPELINED 48LFCSP | 332 |
|
RFQ | |
|
|
Vyrian | Converters | 255 |
|
RFQ |
Part Details for AD9265BCPZ-105
AD9265BCPZ-105 CAD Models
AD9265BCPZ-105 Part Data Attributes
|
|
AD9265BCPZ-105
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9265BCPZ-105
Analog Devices Inc
16-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | LFCSP-48 | |
| Pin Count | 48 | |
| Manufacturer Package Code | CP-48-9 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A001.A.5.A.5 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 2 V | |
| Analog Input Voltage-Min | -2 V | |
| Conversion Time-Max | 0.1 µs | |
| Converter Type | ADC, FLASH METHOD | |
| JESD-30 Code | S-XQCC-N48 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Linearity Error-Max (EL) | 0.00534% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY, GRAY CODE | |
| Output Format | PARALLEL, WORD | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC48,.27SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 105 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 0.8 mm | |
| Supply Current-Max | 176 mA | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 mm |
Alternate Parts for AD9265BCPZ-105
This table gives cross-reference parts and alternative options found for AD9265BCPZ-105. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD9265BCPZ-105, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD9265BCPZ-125 | Analog Devices Inc | $104.2949 | 16-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9265BCPZ-105 vs AD9265BCPZ-125 |
| AD9255BCPZ-80 | Analog Devices Inc | $36.4177 | 14-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9265BCPZ-105 vs AD9255BCPZ-80 |
| AD9255BCPZ-105 | Analog Devices Inc | $78.4367 | 14-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9265BCPZ-105 vs AD9255BCPZ-105 |
| AD9255BCPZ-125 | Analog Devices Inc | $92.9629 | 14-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9265BCPZ-105 vs AD9255BCPZ-125 |
| AD9255BCPZRL7-105 | Analog Devices Inc | Check for Price | 14-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9265BCPZ-105 vs AD9255BCPZRL7-105 |
| AD9265BCPZRL7-80 | Analog Devices Inc | Check for Price | 16-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9265BCPZ-105 vs AD9265BCPZRL7-80 |
| AD9255BCPZRL7-80 | Analog Devices Inc | Check for Price | 14-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9265BCPZ-105 vs AD9255BCPZRL7-80 |
| AD9255BCPZRL7-125 | Analog Devices Inc | Check for Price | 14-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9265BCPZ-105 vs AD9255BCPZRL7-125 |
| AD9265BCPZ-80 | Analog Devices Inc | Check for Price | 16-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9265BCPZ-105 vs AD9265BCPZ-80 |
| AD9265BCPZRL7-105 | Analog Devices Inc | Check for Price | 16-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter | AD9265BCPZ-105 vs AD9265BCPZRL7-105 |
AD9265BCPZ-105 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital signals separate and avoid crossing them over each other. Use a common mode filter and a ferrite bead to filter the power supply.
-
Use a low-jitter clock source (<100 ps) and a 50-ohm transmission line to drive the clock input. Ensure the clock signal is clean and free of noise. Use a clock buffer or a clock conditioner if necessary.
-
Power up the analog supply (AVDD) first, followed by the digital supply (DVDD). Ensure the analog supply is stable before applying the digital supply. Use a power-up sequence controller or a power management IC if necessary.
-
Use a DDR (Double Data Rate) interface to capture the output data. Ensure the FPGA or ASIC is configured to capture data on both the rising and falling edges of the clock. Use a data alignment circuit or a deserializer if necessary.
-
Perform a full-scale calibration after power-up. Use the CAL pin to initiate calibration. The device will automatically adjust its internal settings for optimal performance. Refer to the datasheet for specific calibration procedures.
