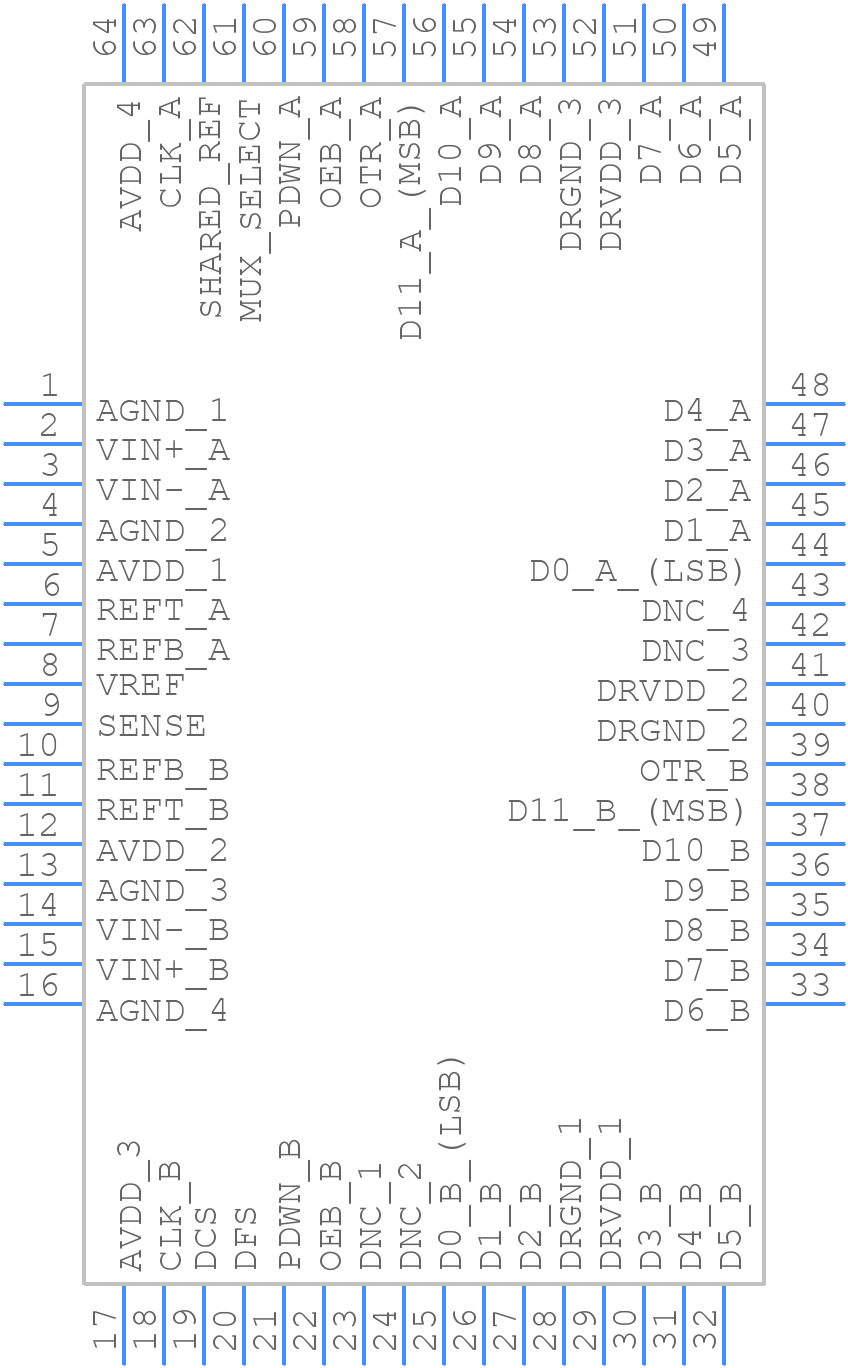

Part Symbol
-

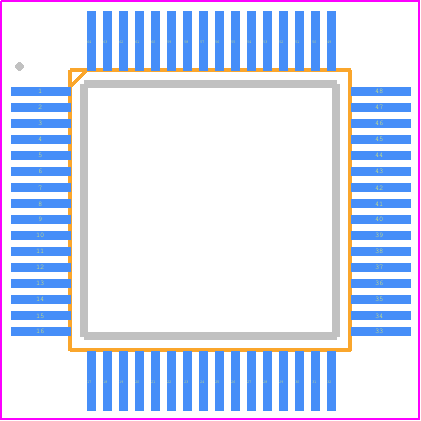

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD9238BSTZ-65 by Analog Devices Inc
Results Overview of AD9238BSTZ-65 by Analog Devices Inc
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD9238BSTZ-65 Information
AD9238BSTZ-65 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD9238BSTZ-65
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9998
|
Newark | Adc, 12Bit, 65Msps, Lqfp-64, Resolution (Bits):12Bit, Sampling Rate:65Msps, Input Channel Type:Differential, Data Interface:Parallel, Supply Voltage Type:Single, Supply Voltage Min:2.7V, Supply Voltage Max:3.6V, No. Of Pins:64Pins Rohs Compliant: Yes |Analog Devices AD9238BSTZ-65 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 4 |
|
$35.6900 / $48.7900 | Buy Now |
|
DISTI #
505-AD9238BSTZ-65-ND
|
DigiKey | IC ADC 12BIT PIPELINED 64LQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
173 In Stock |
|
$35.6876 / $48.7900 | Buy Now |
|
DISTI #
584-AD9238BSTZ-65
|
Mouser Electronics | Analog to Digital Converters - ADC DUAL 12-BIT 65 MSPS ADC RoHS: Compliant | 219 |
|
$37.8000 / $51.7100 | Buy Now |
|
DISTI #
V36:1790_06215722
|
Arrow Electronics | 2-Channel Dual ADC Pipelined 65Msps 12-bit Parallel 64-Pin LQFP Tray RoHS: Compliant Min Qty: 17 Package Multiple: 17 Lead time: 10 Weeks Date Code: 2227 | Americas - 45 |
|
$35.6100 | Buy Now |
|
DISTI #
E54:1762_00107599
|
Arrow Electronics | 2-Channel Dual ADC Pipelined 65Msps 12-bit Parallel 64-Pin LQFP Tray RoHS: Compliant Min Qty: 5 Package Multiple: 1 Lead time: 10 Weeks | Europe - 5 |
|
$33.0100 | Buy Now |
|
|
Analog Devices Inc | DUAL 12-BIT 65 MSPS ADC Package Multiple: 1 | 4901 |
|
$26.5100 / $48.7900 | Buy Now |
|
DISTI #
27519336
|
Verical | 2-Channel Dual ADC Pipelined 65Msps 12-bit Parallel 64-Pin LQFP Tray RoHS: Compliant Min Qty: 17 Package Multiple: 17 | Americas - 4862 |
|
$35.9119 | Buy Now |
|
DISTI #
66417540
|
Verical | 2-Channel Dual ADC Pipelined 65Msps 12-bit Parallel 64-Pin LQFP Tray RoHS: Compliant Min Qty: 17 Package Multiple: 17 Date Code: 2227 | Americas - 34 |
|
$35.6100 | Buy Now |
|
DISTI #
12856885
|
Verical | 2-Channel Dual ADC Pipelined 65Msps 12-bit Parallel 64-Pin LQFP Tray RoHS: Compliant Min Qty: 5 Package Multiple: 5 | Americas - 5 |
|
$77.1372 | Buy Now |
|
|
Bristol Electronics | 9 |
|
RFQ |
Part Details for AD9238BSTZ-65
AD9238BSTZ-65 CAD Models
AD9238BSTZ-65 Part Data Attributes
|
|
AD9238BSTZ-65
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9238BSTZ-65
Analog Devices Inc
Dual 12-Bit, 20/40/65 MSPS, 3 V ADC
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFP | |
| Package Description | LEAD FREE, MS-026-BBD, LQFP-64 | |
| Pin Count | 64 | |
| Manufacturer Package Code | ST-64-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 2 V | |
| Analog Input Voltage-Min | 1 V | |
| Converter Type | ADC, FLASH METHOD | |
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Linearity Error-Max (EL) | 0.0427% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 2 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | PARALLEL, WORD | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP64,.35SQ,16 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 65 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 mm |
