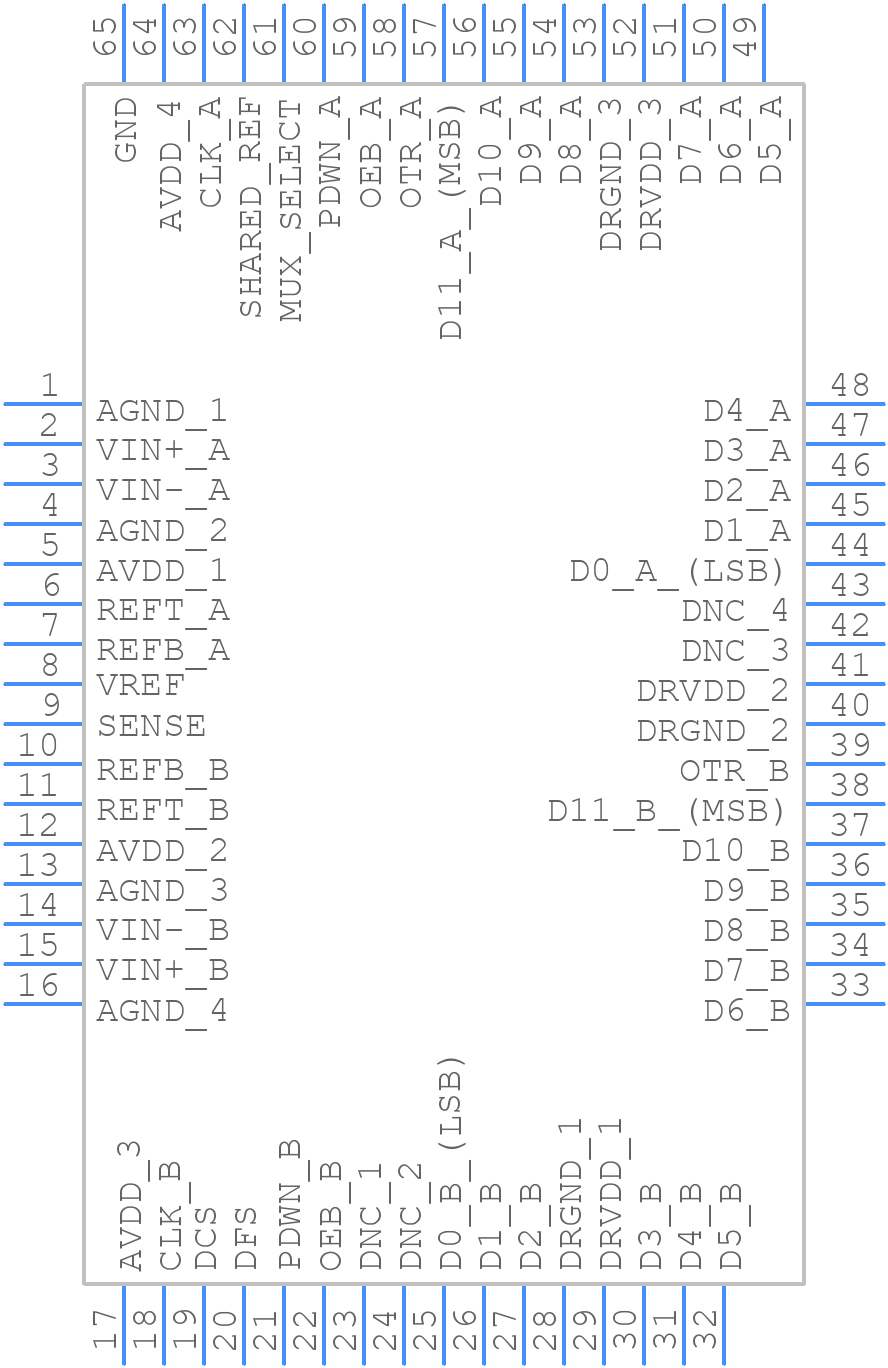

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD9238BCPZ-20 by Analog Devices Inc
Results Overview of AD9238BCPZ-20 by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD9238BCPZ-20 Information
AD9238BCPZ-20 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD9238BCPZ-20
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK9856
|
Newark | Adc, 12Bit, 20Msps, Lfcsp-Vq-Ep-64, Resolution (Bits):12Bit, Sampling Rate:20Msps, Input Channel Type:Differential, Data Interface:Parallel, Supply Voltage Type:Single, Supply Voltage Min:2.7V, Supply Voltage Max:3.6V Rohs Compliant: Yes |Analog Devices AD9238BCPZ-20 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 33 |
|
$23.1700 / $24.9600 | Buy Now |
|
DISTI #
AD9238BCPZ-20-ND
|
DigiKey | IC ADC 12BIT PIPELINED 64LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
80 In Stock |
|
$21.8375 / $33.0200 | Buy Now |
|
DISTI #
584-AD9238BCPZ-20
|
Mouser Electronics | Analog to Digital Converters - ADC 12 BIT DUAL 20/40/65 MSPS ADC RoHS: Compliant | 702 |
|
$21.8300 / $23.1100 | Buy Now |
|
|
Analog Devices Inc | 12 BIT DUAL 20/40/65 MSPS ADC Package Multiple: 1 | 16 |
|
$16.1800 / $23.1100 | Buy Now |
|
DISTI #
AD9238BCPZ-20
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 28 | 0 |
|
$22.8500 / $24.4100 | Buy Now |
|
|
Vyrian | Converters | 107 |
|
RFQ |
Part Details for AD9238BCPZ-20
AD9238BCPZ-20 CAD Models
AD9238BCPZ-20 Part Data Attributes
|
|
AD9238BCPZ-20
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9238BCPZ-20
Analog Devices Inc
Dual 12-Bit, 20/40/65 MSPS, 3 V ADC
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | LEAD FREE, MO-220-VHHD-2, LFCSP-64 | |
| Pin Count | 64 | |
| Manufacturer Package Code | CP-64-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 2 V | |
| Analog Input Voltage-Min | 1 V | |
| Converter Type | ADC, FLASH METHOD | |
| JESD-30 Code | S-XQCC-N64 | |
| JESD-609 Code | e3 | |
| Length | 9 mm | |
| Linearity Error-Max (EL) | 0.0342% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 2 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | PARALLEL, WORD | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC64,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 20 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9 mm |
AD9238BCPZ-20 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital sections separate, and use a star-grounding configuration to minimize noise.
-
Use a low-jitter clock source (<100 ps) and ensure the clock signal is properly terminated. A clock frequency of 20 MHz to 65 MHz is recommended, with a duty cycle of 40% to 60%.
-
Power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and finally the clock input. Ensure all supplies are stable before applying the clock signal.
-
The AD9238BCPZ-20 outputs 14-bit data in offset binary format. Use a FIFO or a buffer to handle the output data, and perform digital filtering, gain correction, and data formatting as needed for the specific application.
-
Perform a full-scale calibration by applying a full-scale input signal and adjusting the offset and gain registers to achieve optimal performance. Repeat the calibration process for each channel and at each operating temperature range.
