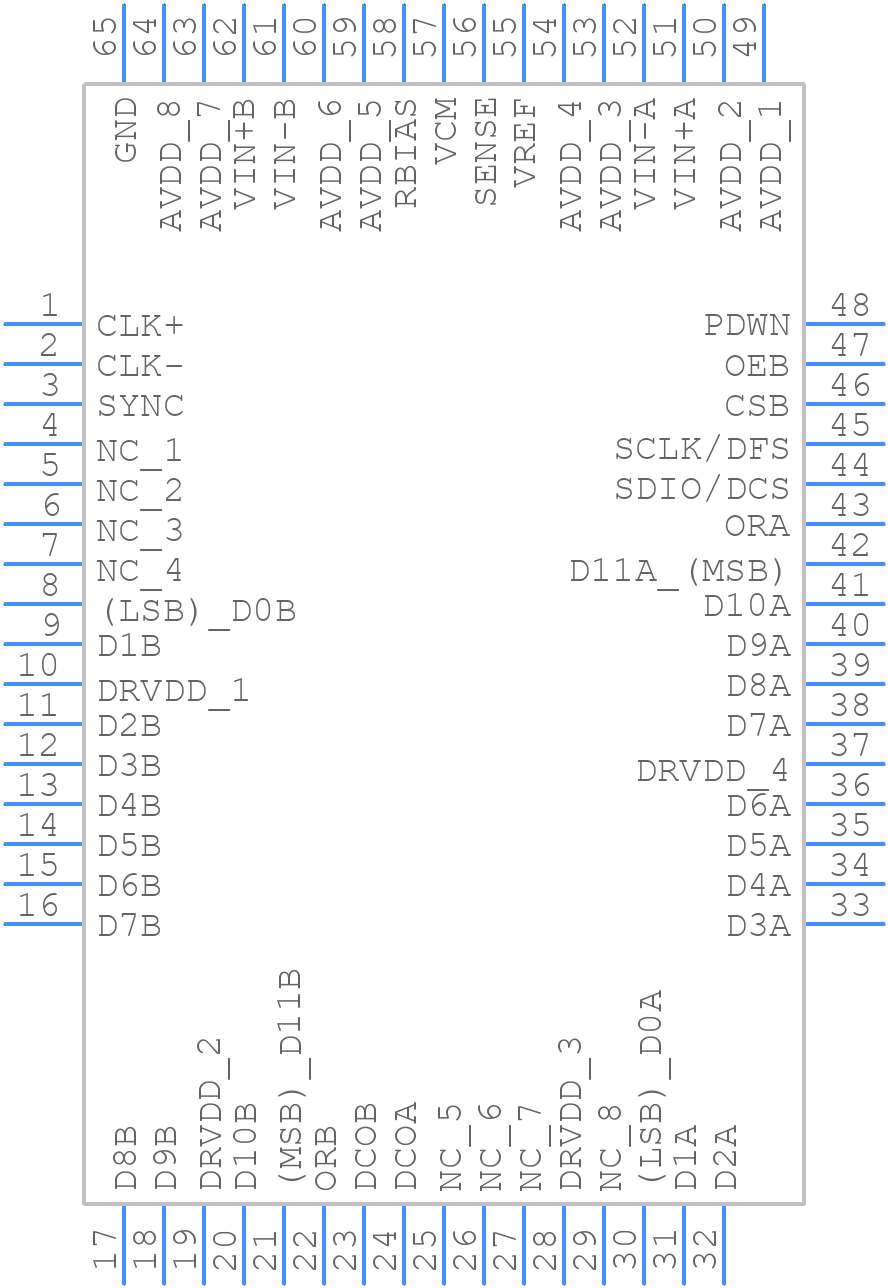

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD9231BCPZ-65 by Analog Devices Inc
Results Overview of AD9231BCPZ-65 by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD9231BCPZ-65 Information
AD9231BCPZ-65 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD9231BCPZ-65
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
AD9231BCPZ-65-ND
|
DigiKey | IC ADC 12BIT PIPELINED 64LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Tray | Temporarily Out of Stock |
|
$32.0747 / $44.8000 | Buy Now |
|
DISTI #
584-AD9231BCPZ-65
|
Mouser Electronics | Analog to Digital Converters - ADC 12 Bit, 65 MSPS Dual Low Power ADC RoHS: Compliant | 0 |
|
$36.2800 / $49.4800 | Order Now |
|
|
Analog Devices Inc | 12 Bit, 65 MSPS Dual Low Power Package Multiple: 1 | 4255 |
|
$23.8100 / $44.8000 | Buy Now |
|
DISTI #
26617025
|
Verical | 2-Channel Dual ADC Pipelined 65Msps 12-bit Parallel 64-Pin LFCSP EP Tray RoHS: Compliant Min Qty: 19 Package Multiple: 19 | Americas - 4237 |
|
$31.7378 | Buy Now |
|
DISTI #
AD9231BCPZ-65
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 19 | 0 |
|
$33.5600 / $37.3900 | Buy Now |
|
|
LCSC | 12Bit 1.7V1.9V 65MHz SPI LFCSP-64(9x9) Analog to Digital Converters (ADC) ROHS | 98 |
|
$42.5940 / $44.7598 | Buy Now |
Part Details for AD9231BCPZ-65

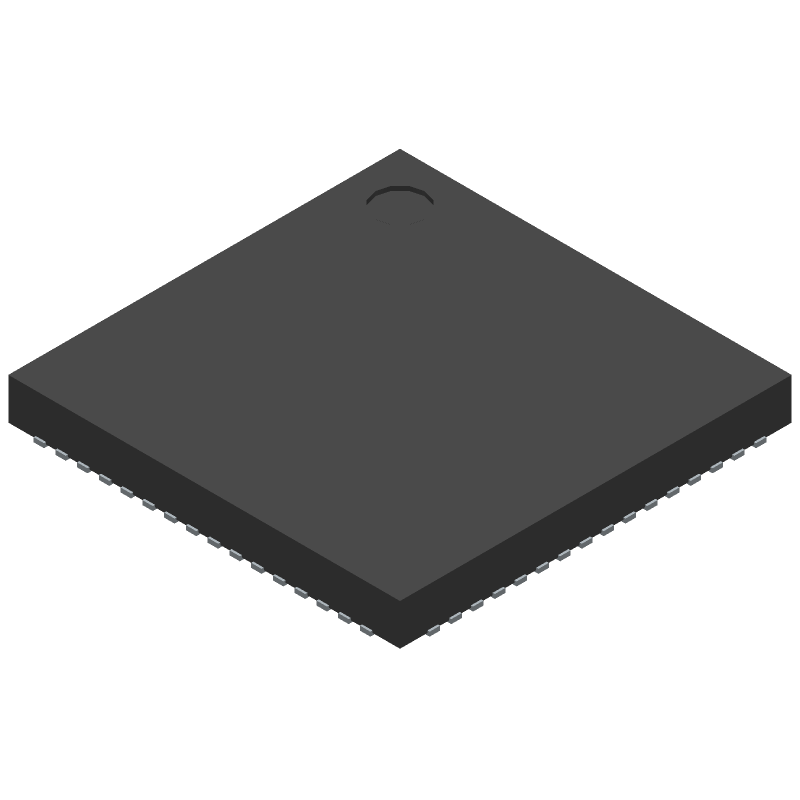

AD9231BCPZ-65 CAD Models
