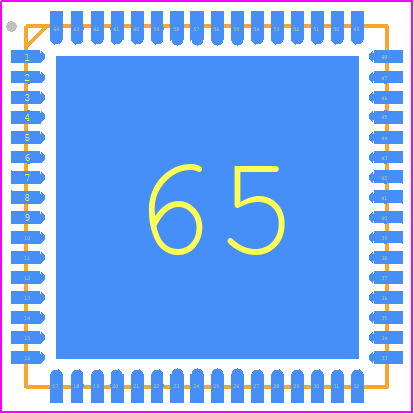

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD9222ABCPZRL7-50 by Analog Devices Inc
Results Overview of AD9222ABCPZRL7-50 by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Financial Technology (Fintech)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Electronic Manufacturing
Automotive
AD9222ABCPZRL7-50 Information
AD9222ABCPZRL7-50 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD9222ABCPZRL7-50
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
AD9222ABCPZRL7-50TR-ND
|
DigiKey | IC ADC 12BIT PIPELINED 64LFCSP Min Qty: 750 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$86.4750 | Buy Now |
|
DISTI #
584-AD9222ABCPZR7-50
|
Mouser Electronics | Analog to Digital Converters - ADC Octal 12 bit, 50 MSPS serial LVDS ADC RoHS: Compliant | 0 |
|
$86.4700 | Order Now |
|
|
Analog Devices Inc | Octal 12 bit, 50 MSPS serial L Min Qty: 750 Package Multiple: 750 | 1500 |
|
$64.2500 / $113.6300 | Buy Now |
|
DISTI #
86931459
|
Verical | 8-Channel Octal ADC Pipelined 50Msps 12-bit Serial 64-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 750 Package Multiple: 750 | Americas - 1500 |
|
$85.5659 | Buy Now |
|
DISTI #
AD9222ABCPZR750
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 750 | 0 |
|
$90.4600 / $91.6400 | Buy Now |
Part Details for AD9222ABCPZRL7-50
AD9222ABCPZRL7-50 CAD Models
AD9222ABCPZRL7-50 Part Data Attributes
|
|
AD9222ABCPZRL7-50
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9222ABCPZRL7-50
Analog Devices Inc
Octal, 12-Bit, 40/50/65 MSPS Serial LVDS 1.8 V A/D Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | 9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64 | |
| Pin Count | 64 | |
| Manufacturer Package Code | CP-64-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 2 V | |
| Analog Input Voltage-Min | ||
| Converter Type | ADC, PROPRIETARY METHOD | |
| JESD-30 Code | S-XQCC-N64 | |
| JESD-609 Code | e3 | |
| Length | 9 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC64,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Qualification Status | Not Qualified | |
| Sample Rate | 50 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 9 mm |
Alternate Parts for AD9222ABCPZRL7-50
This table gives cross-reference parts and alternative options found for AD9222ABCPZRL7-50. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD9222ABCPZRL7-50, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD9212ABCPZ-40 | Analog Devices Inc | $22.8825 | Octal, 10-Bit, 40 MSPS/65 MSPS, Serial LVDS, 1.8 V ADC | AD9222ABCPZRL7-50 vs AD9212ABCPZ-40 |
| AD9252ABCPZ-50 | Analog Devices Inc | $78.7690 | Octal, 14-Bit, 50 MSPS, Serial LVDS, 1.8 V ADC | AD9222ABCPZRL7-50 vs AD9252ABCPZ-50 |
| AD9222ABCPZ-50 | Analog Devices Inc | Check for Price | Octal, 12-Bit, 40/50/65 MSPS Serial LVDS 1.8 V A/D Converter | AD9222ABCPZRL7-50 vs AD9222ABCPZ-50 |
| AD9222BCPZRL7-40 | Analog Devices Inc | Check for Price | IC 8-CH 12-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, QCC64, 9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64, Analog to Digital Converter | AD9222ABCPZRL7-50 vs AD9222BCPZRL7-40 |
| AD9252BCPZRL7-50 | Analog Devices Inc | Check for Price | IC 8-CH 14-BIT FLASH METHOD ADC, SERIAL ACCESS, QCC64, 9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64, Analog to Digital Converter | AD9222ABCPZRL7-50 vs AD9252BCPZRL7-50 |
| AD9222ABCPZRL7-65 | Analog Devices Inc | Check for Price | Octal, 12-Bit, 40/50/65 MSPS Serial LVDS 1.8 V A/D Converter | AD9222ABCPZRL7-50 vs AD9222ABCPZRL7-65 |
| AD9212ABCPZ-65 | Analog Devices Inc | Check for Price | Octal, 10-Bit, 40 MSPS/65 MSPS, Serial LVDS, 1.8 V ADC | AD9222ABCPZRL7-50 vs AD9212ABCPZ-65 |
| AD9212BCPZRL7-40 | Analog Devices Inc | Check for Price | IC 8-CH 10-BIT FLASH METHOD ADC, SERIAL ACCESS, QCC64, 9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64, Analog to Digital Converter | AD9222ABCPZRL7-50 vs AD9212BCPZRL7-40 |
| AD9212BCPZ-65 | Analog Devices Inc | Check for Price | IC 8-CH 10-BIT FLASH METHOD ADC, SERIAL ACCESS, QCC64, 9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64, Analog to Digital Converter | AD9222ABCPZRL7-50 vs AD9212BCPZ-65 |
| AD9212ABCPZRL7-40 | Analog Devices Inc | Check for Price | Octal, 10-Bit, 40 MSPS/65 MSPS, Serial LVDS, 1.8 V ADC | AD9222ABCPZRL7-50 vs AD9212ABCPZRL7-40 |
AD9222ABCPZRL7-50 Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD9222ABCPZRL7-50 involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing noise coupling between the analog and digital signals. A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance and reduce noise.
-
To optimize the performance of the AD9222ABCPZRL7-50, ensure that the input signal is properly filtered and amplified, and that the reference voltage is stable and noise-free. Additionally, optimize the clock frequency and clock jitter, and use a low-noise power supply. It's also important to follow proper PCB layout and grounding techniques to minimize noise coupling and ensure good thermal performance.
-
The maximum clock frequency that can be used with the AD9222ABCPZRL7-50 is 50 MSPS, as specified in the datasheet. However, the actual clock frequency used may need to be lower depending on the specific application and the performance required.
-
The AD9222ABCPZRL7-50 can be interfaced with a FPGA or ASIC using a parallel or serial interface. The device's output data can be connected directly to the FPGA or ASIC's input pins, and the clock and control signals can be generated by the FPGA or ASIC. It's important to ensure that the interface timing and signal integrity are properly managed to avoid data errors and ensure reliable operation.
-
The power consumption of the AD9222ABCPZRL7-50 is typically around 125 mW at 50 MSPS. To minimize power consumption, the device's power-down mode can be used when not in operation, and the clock frequency can be reduced to the minimum required for the application. Additionally, using a low-power FPGA or ASIC and optimizing the system's power management can also help reduce overall power consumption.
