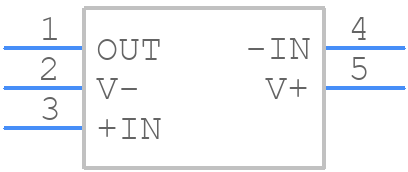

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8638ARJZ-R2 by Analog Devices Inc
Results Overview of AD8638ARJZ-R2 by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD8638ARJZ-R2 Information
AD8638ARJZ-R2 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8638ARJZ-R2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
AD8638ARJZ-R2CT-ND
|
DigiKey | IC OPAMP ZER-DRIFT 1CIRC SOT23-5 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Limited Supply - Call |
|
Buy Now | |
|
DISTI #
SMC-AD8638ARJZ-R2
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Year Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days | 11 |
|
RFQ | |
|
|
Vyrian | Amplifiers | 1442 |
|
RFQ |
Part Details for AD8638ARJZ-R2
AD8638ARJZ-R2 CAD Models
AD8638ARJZ-R2 Part Data Attributes
|
|
AD8638ARJZ-R2
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8638ARJZ-R2
Analog Devices Inc
16 V Auto-Zero, Rail-to-Rail Output Operational Amplifier
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MO-178AA, SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Manufacturer Package Code | RJ-5 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.000105 µA | |
| Bias Current-Max (IIB) @25C | 0.000075 µA | |
| Common-mode Reject Ratio-Nom | 133 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 23 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Low-Bias | YES | |
| Low-Offset | YES | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Slew Rate-Nom | 2.5 V/us | |
| Supply Current-Max | 1.7 mA | |
| Supply Voltage Limit-Max | 16 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 1350 | |
| Voltage Gain-Min | 891000 | |
| Wideband | NO | |
| Width | 1.6 mm |
Alternate Parts for AD8638ARJZ-R2
This table gives cross-reference parts and alternative options found for AD8638ARJZ-R2. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8638ARJZ-R2, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD8638ARJZ | Analog Devices Inc | Check for Price | IC OP-AMP, 20 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, PDSO5, ROHS COMPLIANT, SOT-23, 5 PIN, Operational Amplifier | AD8638ARJZ-R2 vs AD8638ARJZ |
AD8638ARJZ-R2 Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the AD8638ARJZ-R2 is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability, it's essential to follow proper PCB layout practices, minimize parasitic capacitance, and use a compensation capacitor (if necessary) as recommended in the datasheet. Additionally, consider using a series resistor (Rs) to isolate the op-amp from capacitive loads.
-
For optimal performance, keep the input and output traces short and symmetrical, and avoid running digital signals near the op-amp's analog signals. Use a solid ground plane, and consider using a guard ring around the op-amp to reduce noise and interference.
-
The AD8638ARJZ-R2 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at higher temperatures. Consult the datasheet for temperature-related specifications and consider using thermal management techniques to maintain a safe operating temperature.
-
To minimize EMI, use a shielded enclosure, keep the op-amp and surrounding components away from radiating sources, and consider using EMI filters or shielding on the PCB. Additionally, follow proper grounding and shielding techniques to reduce radiated emissions.
