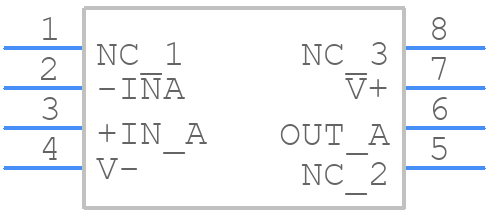

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8551ARZ-REEL7 by Analog Devices Inc
Results Overview of AD8551ARZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD8551ARZ-REEL7 Information
AD8551ARZ-REEL7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8551ARZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7585
|
Newark | Op-Amp, 1.5Mhz, -40 To 125Deg C, Nsoic-8, No. Of Channels:1Channels, Gain Bandwidth Product:1.5Mhz, Supply Voltage Range:2.7V To 5.5V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Amplifier Type:Zero Drift, Input Offset Voltage:1Μv Rohs Compliant: Yes |Analog Devices AD8551ARZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 585 |
|
$2.2100 / $4.3900 | Buy Now |
|
DISTI #
AD8551ARZ-REEL7CT-ND
|
DigiKey | IC OPAMP ZERO-DRIFT 1 CIRC 8SOIC Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
11973 In Stock |
|
$2.2125 / $5.8600 | Buy Now |
|
DISTI #
584-AD8551ARZ-R7
|
Mouser Electronics | Precision Amplifiers SINGLE PRECISION RAIL-RAIL CHOPPER OPAMP RoHS: Compliant | 1517 |
|
$2.2100 / $4.3900 | Buy Now |
|
DISTI #
V72:2272_06215064
|
Arrow Electronics | Op Amp Single Auto Zero/Chopper R-R I/O 5V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Container: Cut Strips | Americas - 317 |
|
$2.2700 / $4.3350 | Buy Now |
|
|
Analog Devices Inc | SINGLE PRECISION RAIL-RAIL CHO Min Qty: 1 Package Multiple: 1000 | 6395 |
|
$2.2125 / $5.8600 | Buy Now |
|
DISTI #
26616979
|
Verical | Op Amp Single Auto Zero/Chopper R-R I/O 5V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 4000 |
|
$2.1892 | Buy Now |
|
DISTI #
84940373
|
Verical | Op Amp Single Auto Zero/Chopper R-R I/O 5V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2434 | Americas - 317 |
|
$2.2700 / $4.3350 | Buy Now |
|
|
Bristol Electronics | 246 |
|
RFQ | ||
|
|
Vyrian | Amplifiers | 4890 |
|
RFQ | |
|
|
Win Source Electronics | Op Amp Single Auto Zero/Chopper R-R I/O 5V 8-Pin SOIC N T/R / IC OPAMP CHOPPER 1.5MHZ 8SOIC | 3550 |
|
$2.0213 / $2.6109 | Buy Now |
Part Details for AD8551ARZ-REEL7
AD8551ARZ-REEL7 CAD Models
AD8551ARZ-REEL7 Part Data Attributes
|
|
AD8551ARZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8551ARZ-REEL7
Analog Devices Inc
Zero-Drift, Single-Supply, RRIO Single Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | CHOPPER-STAB | |
| Average Bias Current-Max (IIB) | 0.0015 µA | |
| Bias Current-Max (IIB) @25C | 0.00005 µA | |
| Common-mode Reject Ratio-Nom | 130 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 10 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | YES | |
| Low-Offset | YES | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 0.4 V/us | |
| Supply Current-Max | 1.07 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1500 | |
| Voltage Gain-Min | 177000 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for AD8551ARZ-REEL7
This table gives cross-reference parts and alternative options found for AD8551ARZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8551ARZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LMP2011MA/NOPB | Texas Instruments | $1.2383 | Single, High Precision, Rail-to-Rail Output Operational Amplifier 8-SOIC -40 to 125 | AD8551ARZ-REEL7 vs LMP2011MA/NOPB |
| AD8551ARZ | Analog Devices Inc | $2.7661 | Zero-Drift, Single-Supply, RRIO Single Op Amp | AD8551ARZ-REEL7 vs AD8551ARZ |
| LTC1049CN8 | Linear Technology | Check for Price | LTC1049 - Low Power Zero-Drift Operational Amplifier with Internal Capacitors; Package: PDIP; Pins: 8; Temperature Range: 0°C to 70°C | AD8551ARZ-REEL7 vs LTC1049CN8 |
| TLC4501QDR | Texas Instruments | Check for Price | Advanced LinEPIC Self-Calibrating (Self-Cal) Precision Single Operational Amplifier 8-SOIC -40 to 125 | AD8551ARZ-REEL7 vs TLC4501QDR |
| MAX4239ASA+T | Maxim Integrated Products | Check for Price | Operational Amplifier, 1 Func, 3.5uV Offset-Max, BICMOS, PDSO8, ROHS COMPLIANT, PLASTIC, 0.150 INCH, MS-012AA, SOIC-8 | AD8551ARZ-REEL7 vs MAX4239ASA+T |
| OPA335AIDBVRG4 | Texas Instruments | Check for Price | Single 0.05uV/C max, single-supply CMOS operational amplifier 5-SOT-23 -40 to 125 | AD8551ARZ-REEL7 vs OPA335AIDBVRG4 |
| LTC1049CS8#TR | Analog Devices Inc | Check for Price | Operational Amplifier, 1 Func, 10uV Offset-Max, PDSO8 | AD8551ARZ-REEL7 vs LTC1049CS8#TR |
| LMP2011MAX/NOPB | Texas Instruments | Check for Price | Single, High Precision, Rail-to-Rail Output Operational Amplifier 8-SOIC -40 to 125 | AD8551ARZ-REEL7 vs LMP2011MAX/NOPB |
| LTC1049MJ8 | Linear Technology | Check for Price | IC OP-AMP, 10 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, CDIP8, HERMETIC SEALED, CERDIP-8, Operational Amplifier | AD8551ARZ-REEL7 vs LTC1049MJ8 |
| LMV2011MF/NOPB | National Semiconductor Corporation | Check for Price | IC OP-AMP, 35 uV OFFSET-MAX, 3 MHz BAND WIDTH, PDSO5, ROHS COMPLIANT, SOT-23, 5-PIN, Operational Amplifier | AD8551ARZ-REEL7 vs LMV2011MF/NOPB |
AD8551ARZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD8551ARZ-REEL7 involves keeping the input traces as short as possible, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To ensure proper biasing, connect the VCC pin to a stable voltage source between 2.7V and 5.5V, and the GND pin to a solid ground plane. The VREF pin should be connected to a stable voltage reference or left open-circuit if not used.
-
The recommended input impedance for the AD8551ARZ-REEL7 is 1 kΩ to 10 kΩ. This ensures optimal signal-to-noise ratio and minimizes input current noise.
-
To prevent ESD damage, handle the AD8551ARZ-REEL7 by the body or use an anti-static wrist strap. Use ESD-protected workstations and follow proper ESD handling procedures.
-
The AD8551ARZ-REEL7 has a thermal pad on the bottom of the package. Ensure good thermal contact between the thermal pad and the PCB using thermal interface material or thermal tape.
