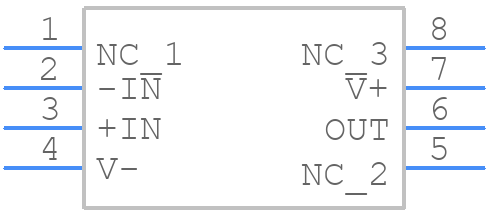

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8538ARZ-REEL7 by Analog Devices Inc
Results Overview of AD8538ARZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD8538ARZ-REEL7 Information
AD8538ARZ-REEL7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8538ARZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9957
|
Newark | Op-Amp, 430Khz, -40 To 125Deg C, Nsoic8, No. Of Channels:1Channels, Gain Bandwidth Product:430Khz, Supply Voltage Range:2.7V To 5.5V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Amplifier Type:General Purpose, Rail To Rail:- Rohs Compliant: Yes |Analog Devices AD8538ARZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 786 |
|
$1.5300 / $2.4900 | Buy Now |
|
DISTI #
AD8538ARZ-REEL7CT-ND
|
DigiKey | IC OPAMP ZERO-DRIFT 1 CIRC 8SOIC Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2316 In Stock |
|
$1.5000 / $4.4200 | Buy Now |
|
DISTI #
584-AD8538ARZ-R7
|
Mouser Electronics | Precision Amplifiers Single Low Power AutoZero Amp RoHS: Compliant | 73 |
|
$1.5000 / $3.1000 | Buy Now |
|
DISTI #
V72:2272_06214777
|
Arrow Electronics | Op Amp Single Precision Amplifier R-R I/O ±2.5V/5V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2241 Container: Cut Strips | Americas - 949 |
|
$1.5390 / $1.6700 | Buy Now |
|
|
Analog Devices Inc | Single Low Power AutoZero Amp Min Qty: 1 Package Multiple: 1000 | 464 |
|
$1.5000 / $4.4200 | Buy Now |
|
DISTI #
64933754
|
Verical | Op Amp Single Precision Amplifier R-R I/O ±2.5V/5V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2241 | Americas - 949 |
|
$1.5390 / $1.6700 | Buy Now |
|
|
Rochester Electronics | AD8538 - Operational Amplifier, 30uV Offset-Max, CMOS, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 59 |
|
$1.2600 / $1.5700 | Buy Now |
|
|
LCSC | 430kHz 5uV 15pA Single channel SOIC-8 Precision Op Amps ROHS | 23 |
|
$1.5109 / $1.7327 | Buy Now |
|
|
Vyrian | Amplifiers | 970 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP ZERO-DRIFT 1 CIRC 8SOIC | 22200 |
|
$1.4842 / $1.9170 | Buy Now |
Part Details for AD8538ARZ-REEL7
AD8538ARZ-REEL7 CAD Models
AD8538ARZ-REEL7 Part Data Attributes
|
|
AD8538ARZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8538ARZ-REEL7
Analog Devices Inc
Low Power, Precision, Auto-Zero Op Amp (5-lead TSOT-23)
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.0001 µA | |
| Bias Current-Max (IIB) @25C | 0.000025 µA | |
| Common-mode Reject Ratio-Nom | 135 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 30 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | YES | |
| Low-Offset | YES | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | ||
| Neg Supply Voltage-Nom (Vsup) | ||
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 0.4 V/us | |
| Supply Current-Max | 0.215 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 430 | |
| Voltage Gain-Min | 178000 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for AD8538ARZ-REEL7
This table gives cross-reference parts and alternative options found for AD8538ARZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8538ARZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD8538AUJZ-REEL7 | Analog Devices Inc | $1.1838 | Low Power, Precision, Auto-Zero Op Amp (5-lead TSOT-23) | AD8538ARZ-REEL7 vs AD8538AUJZ-REEL7 |
| AD8538ARZ | Analog Devices Inc | $2.0738 | Low Power, Precision, Auto-Zero Op Amp (5-lead TSOT-23) | AD8538ARZ-REEL7 vs AD8538ARZ |
| AD8538ARZ-REEL7 | Rochester Electronics LLC | Check for Price | OP-AMP, 30 uV OFFSET-MAX, 0.43 MHz BAND WIDTH, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8 | AD8538ARZ-REEL7 vs AD8538ARZ-REEL7 |
| AD8538ARZ | Rochester Electronics LLC | Check for Price | OP-AMP, 30 uV OFFSET-MAX, 0.43 MHz BAND WIDTH, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8 | AD8538ARZ-REEL7 vs AD8538ARZ |
| AD8538ARZ-REEL | Analog Devices Inc | Check for Price | Low Power, Precision, Auto-Zero Op Amp (5-lead TSOT-23) | AD8538ARZ-REEL7 vs AD8538ARZ-REEL |
| AD8538AUJZ-REEL | Analog Devices Inc | Check for Price | Low Power, Precision, Auto-Zero Op Amp (5-lead TSOT-23) | AD8538ARZ-REEL7 vs AD8538AUJZ-REEL |
| AD8538AUJZ | Analog Devices Inc | Check for Price | OP-AMP, 30uV OFFSET-MAX, 0.43MHz BAND WIDTH, PDSO5 | AD8538ARZ-REEL7 vs AD8538AUJZ |
AD8538ARZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD8538ARZ-REEL7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
The gain resistors (Rf and Rg) should be chosen based on the desired gain and bandwidth requirements. A good starting point is to use 1 kΩ to 10 kΩ resistors, and then adjust based on the specific application. The datasheet provides a gain resistor calculator to help with the selection.
-
The maximum power dissipation for the AD8538ARZ-REEL7 is 670 mW, which is calculated based on the package thermal resistance (θJA) and the maximum junction temperature (TJ). Proper thermal design and heat sinking are essential to ensure reliable operation.
-
To minimize EMI, use a shielded enclosure, keep the op-amp and surrounding components away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, use a low-pass filter or a shielded cable to reduce radiated emissions.
-
A 0.1 μF to 1 μF ceramic capacitor is recommended for the decoupling capacitor (C2) in the typical application circuit. This value provides adequate decoupling and noise filtering for most applications.
