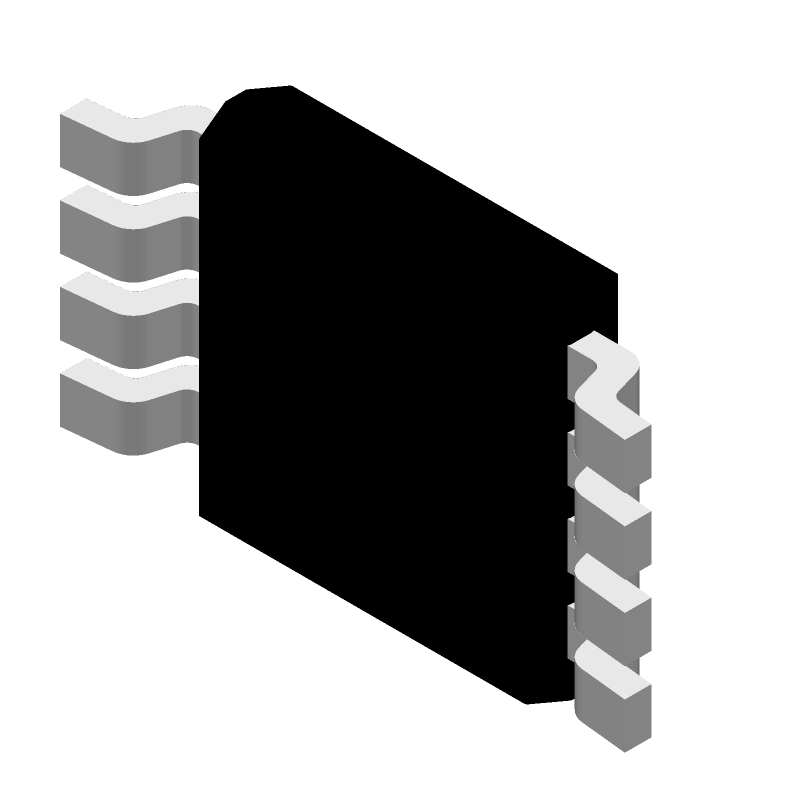

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8495CRMZ-R7 by Analog Devices Inc
Results Overview of AD8495CRMZ-R7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Energy and Power Systems
Renewable Energy
AD8495CRMZ-R7 Information
AD8495CRMZ-R7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8495CRMZ-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7540
|
Newark | Sensor Signal Conditioner, 125 Deg C, Signal Conditioner Type:Thermocouple Signal Conditioner, Supply Voltage Min:2.7V, Supply Voltage Max:36V, Ic Case/Package:Msop, No. Of Pins:8Pins, Operating Temperature Min:-40°C, Bandwidth:- Rohs Compliant: Yes |Analog Devices AD8495CRMZ-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 163 |
|
$6.8400 / $11.6300 | Buy Now |
|
DISTI #
AD8495CRMZ-R7CT-ND
|
DigiKey | IC THERMOCOUPLE A W/COMP 8MSOP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1726 In Stock |
|
$6.8500 / $13.5200 | Buy Now |
|
DISTI #
584-AD8495CRMZ-R7
|
Mouser Electronics | Board Mount Temperature Sensors Full K-Type Range 0 to 50 Thermocouple Amplifier w/Cold Junction Compensation RoHS: Compliant | 199 |
|
$7.0400 / $12.1800 | Buy Now |
|
|
Analog Devices Inc | Thermocouple InAmp Min Qty: 1 Package Multiple: 1000 | 3346 |
|
$6.8500 / $13.5200 | Buy Now |
|
DISTI #
79359731
|
Verical | Sensor and Detector Interface 36V 8-Pin MSOP T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 3000 |
|
$6.8931 | Buy Now |
|
|
Greenchips | Date Code: 22+/MY | 1000 |
|
$5.2610 | Buy Now |
|
|
Vyrian | Amplifiers | 1454 |
|
RFQ | |
|
|
Win Source Electronics | IC THERMOCOUPLE A W/COMP 8MSOP | 2750 |
|
$11.6667 / $15.0695 | Buy Now |
Part Details for AD8495CRMZ-R7
AD8495CRMZ-R7 CAD Models
AD8495CRMZ-R7 Part Data Attributes
|
|
AD8495CRMZ-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8495CRMZ-R7
Analog Devices Inc
Full K-Type Range 0° to 50° Thermocouple Amplifier w/Cold Junction Compensation
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.05 µA | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 0.25 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for AD8495CRMZ-R7
This table gives cross-reference parts and alternative options found for AD8495CRMZ-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8495CRMZ-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD8495ARMZ-R7 | Analog Devices Inc | $4.3198 | Full K-Type Range 0° to 50° Thermocouple Amplifier w/Cold Junction Compensation | AD8495CRMZ-R7 vs AD8495ARMZ-R7 |
| AD8497ARMZ | Analog Devices Inc | $4.9075 | Full K-Type Range 25° to 100° Thermocouple Amplifier w/Cold Junction Compensation | AD8495CRMZ-R7 vs AD8497ARMZ |
| AD8494ARMZ | Analog Devices Inc | $4.9517 | Full J-Type Range 0° to 50° Thermocouple Amplifier w/Cold Junction Compensation | AD8495CRMZ-R7 vs AD8494ARMZ |
| AD8494ARMZ-R7 | Analog Devices Inc | $5.1974 | Full J-Type Range 0° to 50° Thermocouple Amplifier w/Cold Junction Compensation | AD8495CRMZ-R7 vs AD8494ARMZ-R7 |
| AD8497CRMZ | Analog Devices Inc | $6.8512 | Full K-Type Range 25° to 100° Thermocouple Amplifier w/Cold Junction Compensation | AD8495CRMZ-R7 vs AD8497CRMZ |
| AD8495CRMZ | Analog Devices Inc | $7.9978 | Full K-Type Range 0° to 50° Thermocouple Amplifier w/Cold Junction Compensation | AD8495CRMZ-R7 vs AD8495CRMZ |
| AD8496CRMZ-R7 | Analog Devices Inc | Check for Price | Full J-Type Range 25° to 100° Thermocouple Amplifier w/Cold Junction Compensation | AD8495CRMZ-R7 vs AD8496CRMZ-R7 |
| AD8494CRMZ-R7 | Analog Devices Inc | Check for Price | Full J-Type Range 0° to 50° Thermocouple Amplifier w/Cold Junction Compensation | AD8495CRMZ-R7 vs AD8494CRMZ-R7 |
| AD8496ARMZ-R7 | Analog Devices Inc | Check for Price | Full J-Type Range 25° to 100° Thermocouple Amplifier w/Cold Junction Compensation | AD8495CRMZ-R7 vs AD8496ARMZ-R7 |
| AD8495CRMZ | Rochester Electronics LLC | Check for Price | OP-AMP, 0 uV OFFSET-MAX, PDSO8, ROHS COMPLIANT, MO-187AA, MSOP-8 | AD8495CRMZ-R7 vs AD8495CRMZ |
AD8495CRMZ-R7 Frequently Asked Questions (FAQ)
-
The AD8495CRMZ-R7 can operate from -40°C to +125°C, but the accuracy of the temperature measurement is specified from -20°C to +150°C.
-
The AD8495CRMZ-R7 does not require calibration. It is a pre-calibrated device, and the calibration data is stored in the device's internal memory.
-
The typical current consumption of the AD8495CRMZ-R7 is 350 μA, but it can vary depending on the operating conditions and the output voltage.
-
Yes, the AD8495CRMZ-R7 can be used with other types of thermocouples, but the accuracy and temperature range may vary. The device is optimized for type K thermocouples, but it can be used with other types of thermocouples with some limitations.
-
The response time of the AD8495CRMZ-R7 is typically 10 ms, but it can vary depending on the thermocouple type and the operating conditions.
