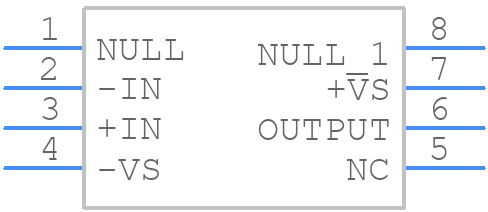

Part Symbol
-
Footprint
-

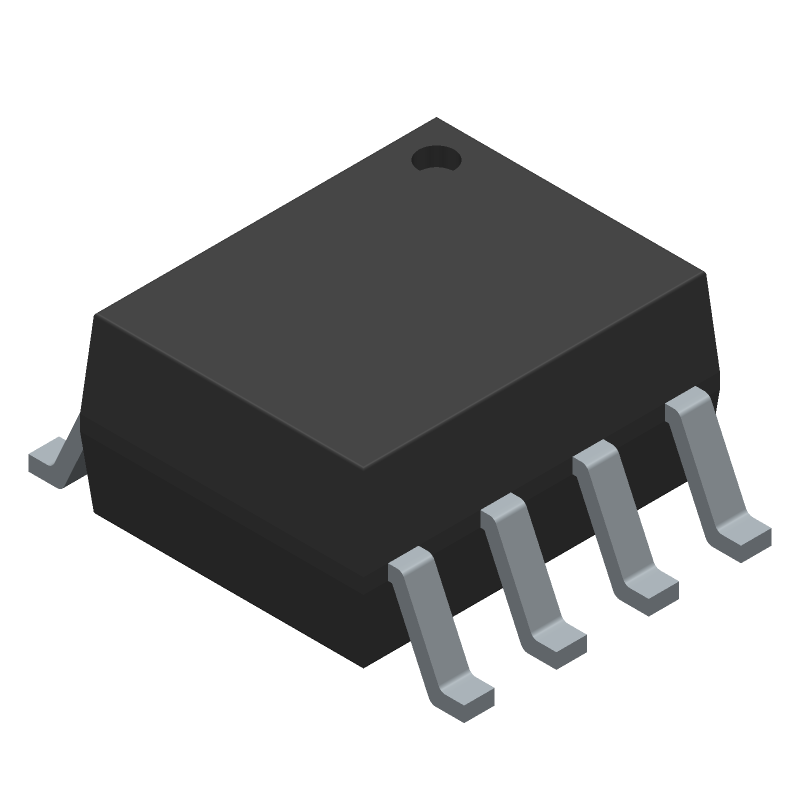

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD847JRZ by Analog Devices Inc
Results Overview of AD847JRZ by Analog Devices Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD847JRZ Information
AD847JRZ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD847JRZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7526
|
Newark | Op-Amp, 50Mhz, 0 To 70Deg C, Soic-8, No. Of Channels:1Channels, Gain Bandwidth Product:50Mhz, Supply Voltage Range:± 4.5V To ± 18V, Ic Case/Package:Soic, No. Of Pins:8Pins, Amplifier Type:General Purpose, Rail To Rail:- Rohs Compliant: Yes |Analog Devices AD847JRZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$5.9600 / $11.6800 | Buy Now |
|
DISTI #
AD847JRZ-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
538 In Stock |
|
$5.7375 / $11.8300 | Buy Now |
|
DISTI #
584-AD847JRZ
|
Mouser Electronics | Precision Amplifiers LOW POWER, HIGH SPEED AMP RoHS: Compliant | 1188 |
|
$5.9000 / $10.3700 | Buy Now |
|
DISTI #
E54:1762_00113625
|
Arrow Electronics | Op Amp Single High Speed Amplifier ±18V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 98 Package Multiple: 98 Lead time: 10 Weeks Date Code: 2447 | Europe - 882 |
|
$5.6690 / $5.9760 | Buy Now |
|
|
Analog Devices Inc | LOW POWER, HIGH SPEED AMP Package Multiple: 98 | 206 |
|
$3.4000 / $11.8300 | Buy Now |
|
DISTI #
87631327
|
Verical | Op Amp Single High Speed Amplifier ±18V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 98 Package Multiple: 98 Date Code: 2447 | Americas - 882 |
|
$5.6690 / $5.9760 | Buy Now |
|
DISTI #
27557006
|
Verical | Op Amp Single High Speed Amplifier ±18V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 98 Package Multiple: 98 | Americas - 98 |
|
$5.7736 | Buy Now |
|
|
Quest Components | OP-AMP, 3500 UV OFFSET-MAX, 35 MHZ BAND WIDTH, PDSO8 | 470 |
|
$11.6970 / $17.5455 | Buy Now |
|
|
Quest Components | OP-AMP, 3500 UV OFFSET-MAX, 35 MHZ BAND WIDTH, PDSO8 | 25 |
|
$6.3750 / $12.7500 | Buy Now |
|
|
Rochester Electronics | High Speed, Low Power Monolithic Op Amp RoHS: Compliant Status: Active Min Qty: 1 | 87 |
|
$4.8200 / $6.0200 | Buy Now |
Part Details for AD847JRZ
AD847JRZ CAD Models
AD847JRZ Part Data Attributes
|
|
AD847JRZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD847JRZ
Analog Devices Inc
High Speed, Low Power Monolithic Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 7.2 µA | |
| Bias Current-Max (IIB) @25C | 6.6 µA | |
| Common-mode Reject Ratio-Min | 75 dB | |
| Common-mode Reject Ratio-Nom | 95 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 3500 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Offset | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.59 mm | |
| Slew Rate-Min | 225 V/us | |
| Slew Rate-Nom | 200 V/us | |
| Supply Current-Max | 7.6 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 35000 | |
| Voltage Gain-Min | 1500 | |
| Width | 3.9 mm |
Alternate Parts for AD847JRZ
This table gives cross-reference parts and alternative options found for AD847JRZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD847JRZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD847JR-REEL7 | Analog Devices Inc | Check for Price | High Speed, Low Power Monolithic Op Amp | AD847JRZ vs AD847JR-REEL7 |
| AD847JRZ-REEL7 | Rochester Electronics LLC | Check for Price | OP-AMP, 3500 uV OFFSET-MAX, 35 MHz BAND WIDTH, PDSO8, SOIC-8 | AD847JRZ vs AD847JRZ-REEL7 |
| AD847JRZ-REEL | Analog Devices Inc | Check for Price | High Speed, Low Power Monolithic Op Amp | AD847JRZ vs AD847JRZ-REEL |
| 5962-01-415-7056 | Analog Devices Inc | Check for Price | IC IC,OP-AMP,SINGLE,BIPOLAR,SOP,8PIN,PLASTIC, Operational Amplifier | AD847JRZ vs 5962-01-415-7056 |
AD847JRZ Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the AD847JRZ is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10nF to 100nF) between the output and the inverting input to compensate for the op-amp's internal capacitance and ensure stability.
-
To minimize noise and EMI, it's recommended to follow good PCB layout practices, such as keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the op-amp's power pins.
-
The AD847JRZ is rated for operation from -40°C to 125°C, but it's recommended to derate the power dissipation and ensure proper heat sinking to prevent overheating in high-temperature environments.
-
The choice of resistors for the feedback network depends on the desired gain, bandwidth, and noise requirements. A good starting point is to use 1% or 0.1% tolerance resistors with a temperature coefficient of 25ppm/°C or better.
