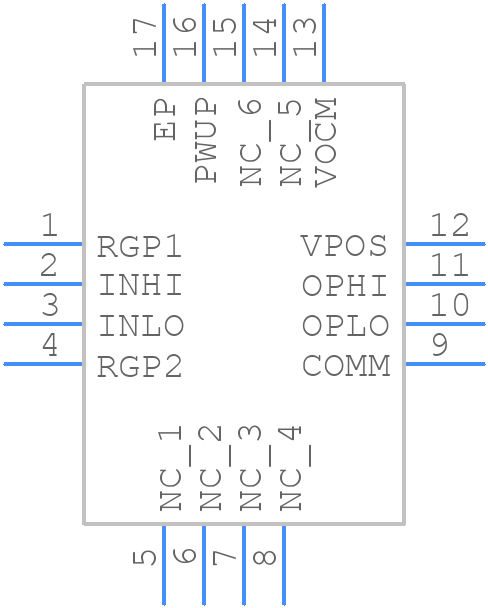

Part Symbol
-
Footprint
-

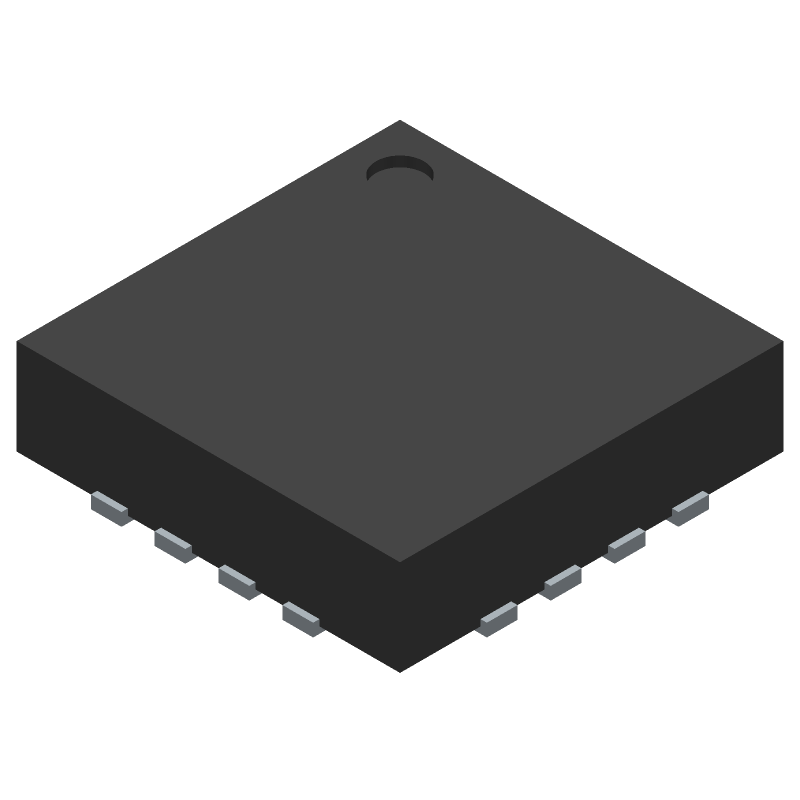

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Low Distortion Differential RF/IF Amplifier
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
AD8351SCPZ-EP-R7CT-ND
|
DigiKey | IC RF AMP 2.2GHZ 16LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1183 In Stock |
|
$10.2125 / $17.2700 | Buy Now |
DISTI #
584-AD8351SCPZ-EP-R7
|
Mouser Electronics | RF Amplifier Low Distortion Differential RF/IF Amp RoHS: Compliant | 0 |
|
$10.2100 | Order Now |
|
Analog Devices Inc | Low Distortion Differential RF Min Qty: 1 Package Multiple: 1500 | 15237 |
|
$7.7600 / $17.2700 | Buy Now |
DISTI #
28995986
|
Verical | RF Amp Single DIFF Amp 2.2GHz 5.5V 16-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | Americas - 15000 |
|
$10.2767 | Buy Now |
|
Bristol Electronics | 59 |
|
RFQ | ||
|
Rochester Electronics | AD8351 - Low Distortion Differential RF/IF Amplifier RoHS: Compliant Status: Active Min Qty: 1 | 12334 |
|
$8.5800 / $10.7200 | Buy Now |
DISTI #
AD8351SCPZEP-R7
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 1500 | 0 |
|
$10.6800 | Buy Now |
|
Vyrian | General Purpose ICs | 7401 |
|
RFQ |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
AD8351SCPZ-EP-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8351SCPZ-EP-R7
Analog Devices Inc
Low Distortion Differential RF/IF Amplifier
|
Pbfree Code | No | |
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | ANALOG DEVICES INC | |
Package Description | LFCSP-16 | |
Pin Count | 16 | |
Manufacturer Package Code | CP-16-33 | |
Reach Compliance Code | compliant | |
ECCN Code | EAR99 | |
HTS Code | 8542.33.00.01 | |
Samacsys Manufacturer | Analog Devices |
A good PCB layout for the AD8351SCPZ-EP-R7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper biasing, connect the VPOS and VNEG pins to a stable voltage source, and decouple them with 10uF and 100nF capacitors, respectively. Also, ensure the input common-mode voltage is within the recommended range of 1.5V to 3.5V.
For optimal performance, use a low-pass filter or an anti-aliasing filter to condition the input signal, and ensure the input signal amplitude is within the recommended range of 100mV to 2V peak-to-peak.
To minimize EMI, use a shielded enclosure, keep the AD8351SCPZ-EP-R7 away from high-frequency sources, and use a common-mode choke or ferrite beads on the input and output lines. Also, ensure good PCB layout practices, such as keeping traces short and using a solid ground plane.
To ensure reliable operation, keep the junction temperature below 150°C. Use a heat sink or a thermal pad on the exposed pad of the package, and ensure good airflow around the device. Also, avoid overheating the device during soldering or rework.
