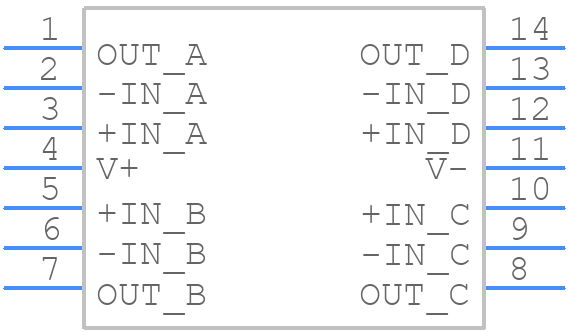

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD824ARZ-14 by Analog Devices Inc
Results Overview of AD824ARZ-14 by Analog Devices Inc
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD824ARZ-14 Information
AD824ARZ-14 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD824ARZ-14
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7386
|
Newark | Op-Amp, 2Mhz, -40 To 85Deg C, Nsoic-14, No. Of Channels:4Channels, Gain Bandwidth Product:2Mhz, Supply Voltage Range:3V To 30V, Ic Case/Package:Nsoic, No. Of Pins:14Pins, Amplifier Type:Jfet, Rail To Rail:Rail - Rail Output (Rro) Rohs Compliant: Yes |Analog Devices AD824ARZ-14 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 75 |
|
$8.2900 / $15.7500 | Buy Now |
|
DISTI #
AD824ARZ-14-ND
|
DigiKey | IC OPAMP JFET 4 CIRCUIT 14SOIC Min Qty: 1 Lead time: 20 Weeks Container: Tube |
2064 In Stock |
|
$8.2250 / $15.5200 | Buy Now |
|
DISTI #
584-AD824ARZ-14
|
Mouser Electronics | Precision Amplifiers QUAD FET-INPUT SINGLE SPLY RoHS: Compliant | 1954 |
|
$8.6200 / $14.3900 | Buy Now |
|
DISTI #
E54:1762_00108942
|
Arrow Electronics | Op Amp Quad Low Power Amplifier R-R O/P ±15V/30V 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2512 | Europe - 2056 |
|
$7.9620 / $14.2230 | Buy Now |
|
DISTI #
V36:1790_06214039
|
Arrow Electronics | Op Amp Quad Low Power Amplifier R-R O/P ±15V/30V 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 56 Package Multiple: 56 Lead time: 10 Weeks Date Code: 2429 | Americas - 118 |
|
$7.9620 / $8.7300 | Buy Now |
|
|
Analog Devices Inc | QUAD FET-INPUT SINGLE SPLY Package Multiple: 56 | 413 |
|
$6.4700 / $15.5200 | Buy Now |
|
DISTI #
88177336
|
Verical | Op Amp Quad Low Power Amplifier R-R O/P ±15V/30V 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2512 | Americas - 2056 |
|
$7.9620 / $14.2230 | Buy Now |
|
DISTI #
87250567
|
Verical | Op Amp Quad Low Power Amplifier R-R O/P ±15V/30V 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 56 Package Multiple: 56 Date Code: 2429 | Americas - 112 |
|
$8.7300 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 38 |
|
$6.0938 / $9.7500 | Buy Now |
|
|
Quest Components | QUAD OP-AMP, 4000 UV OFFSET-MAX, 2 MHZ BAND WIDTH, PDSO14 | 30 |
|
$8.7750 / $13.0000 | Buy Now |
Part Details for AD824ARZ-14
AD824ARZ-14 CAD Models
AD824ARZ-14 Part Data Attributes
|
|
AD824ARZ-14
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD824ARZ-14
Analog Devices Inc
Single Supply, Rail-to-Rail Low Power, FET-Input Quad Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | PLASTIC, SOIC-14 | |
| Pin Count | 14 | |
| Manufacturer Package Code | R-14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.004 µA | |
| Bias Current-Max (IIB) @25C | 0.000035 µA | |
| Common-mode Reject Ratio-Nom | 80 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 4000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 8.65 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 2 V/us | |
| Supply Current-Max | 2.7 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 2000 | |
| Voltage Gain-Min | 12000 | |
| Width | 3.9 mm |
Alternate Parts for AD824ARZ-14
This table gives cross-reference parts and alternative options found for AD824ARZ-14. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD824ARZ-14, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD824AR-14-3V | Rochester Electronics LLC | Check for Price | QUAD OP-AMP, 4000uV OFFSET-MAX, 2MHz BAND WIDTH, PDSO14, PLASTIC, SOIC-14 | AD824ARZ-14 vs AD824AR-14-3V |
| AD824AR-14 | Rochester Electronics LLC | Check for Price | QUAD OP-AMP, 4000uV OFFSET-MAX, 2MHz BAND WIDTH, PDSO14, PLASTIC, MS-012AB, SOIC-14 | AD824ARZ-14 vs AD824AR-14 |
| AD824ARZ-14 | Rochester Electronics LLC | Check for Price | QUAD OP-AMP, 4000uV OFFSET-MAX, 2MHz BAND WIDTH, PDSO14, PLASTIC, SOIC-14 | AD824ARZ-14 vs AD824ARZ-14 |
| AD824ARZ-14-3V | Rochester Electronics LLC | Check for Price | QUAD OP-AMP, 4000uV OFFSET-MAX, 2MHz BAND WIDTH, PDSO14, PLASTIC, SOIC-14 | AD824ARZ-14 vs AD824ARZ-14-3V |
AD824ARZ-14 Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the AD824ARZ-14 is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-100pF) between the output and the inverting input to compensate for the op-amp's internal capacitance and ensure stability.
-
For optimal performance, it's recommended to use a star-grounding technique, where the grounds of the power supplies, analog circuits, and digital circuits are connected at a single point. Additionally, keep the input and output traces short and away from noise sources.
-
While the AD824ARZ-14 can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate (0.5V/μs) and limited bandwidth (3MHz). A dedicated comparator like the AD790 or AD8561 would be a better choice for comparator applications.
-
To prevent electrostatic discharge (ESD) damage, handle the AD824ARZ-14 with an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static bag or tube. Avoid touching the device's pins or handling it in a way that could generate static electricity.
