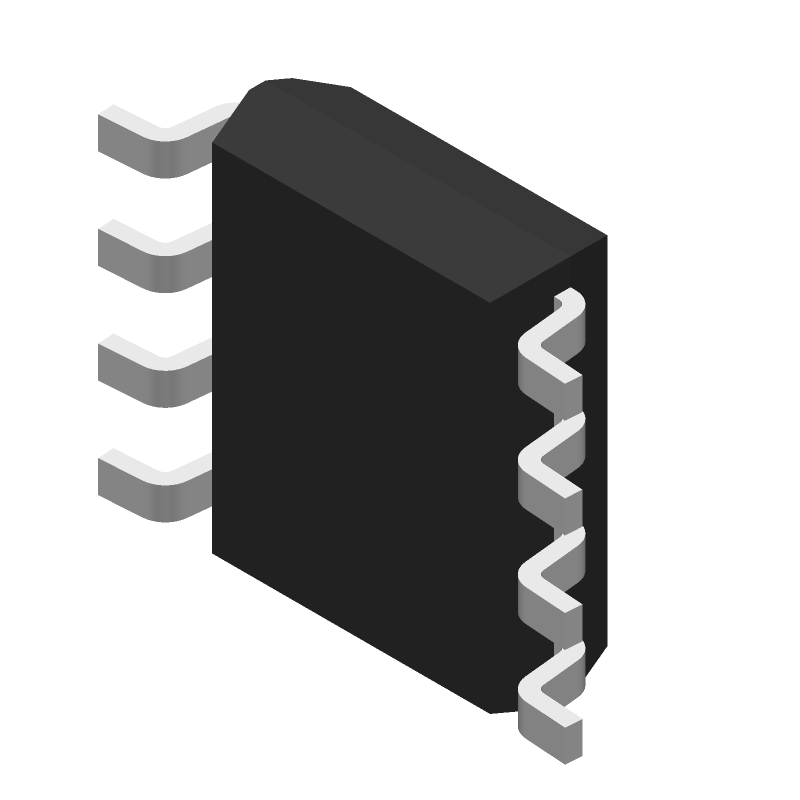

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD823ARZ by Analog Devices Inc
Results Overview of AD823ARZ by Analog Devices Inc
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Aerospace and Defense
Healthcare
Medical Imaging
AD823ARZ Information
AD823ARZ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD823ARZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7379
|
Newark | Opamp, 16Mhz, -40 To 85Deg C, No. Of Channels:2Channels, Gain Bandwidth Product:16Mhz, Supply Voltage Range:± 1.5V To ± 18V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Amplifier Type:Jfet, Rail To Rail:Rail - Rail Output (Rro) Rohs Compliant: Yes |Analog Devices AD823ARZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 2095 |
|
$4.4700 / $8.8000 | Buy Now |
|
DISTI #
505-AD823ARZ-ND
|
DigiKey | IC OPAMP JFET 2 CIRCUIT 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
2473 In Stock |
|
$4.1750 / $9.3300 | Buy Now |
|
DISTI #
584-AD823ARZ
|
Mouser Electronics | Precision Amplifiers DUAL FET R-TO-R 16MHZ AMP RoHS: Compliant | 5055 |
|
$4.3500 / $7.7700 | Buy Now |
|
DISTI #
E54:1762_00108217
|
Arrow Electronics | Op Amp Dual Precision Amplifier R-R O/P ±18V/36V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks | Europe - 5960 |
|
$4.0010 / $7.6690 | Buy Now |
|
|
Analog Devices Inc | DUAL FET R-TO-R 16MHZ AMP Package Multiple: 98 | 497 |
|
$3.2800 / $9.3300 | Buy Now |
|
|
Bristol Electronics | 70 |
|
RFQ | ||
|
DISTI #
AD823ARZ
|
TME | IC: operational amplifier, 16MHz, Ch: 2, SO8, ±1.5÷18VDC,3÷36VDC Min Qty: 1 | 1 |
|
$2.1800 / $3.2800 | Buy Now |
|
|
ComSIT USA | DUAL, 16 MHZ, RAIL-TO-RAIL FET INPUT AMPLIFIER Operational Amplifier, 2 Func, 3500uV Offset-Max, BIPolar, PDSO8 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
|
NexGen Digital | 1 |
|
RFQ | ||
|
DISTI #
AD823ARZ
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 1 | 398 |
|
$4.6700 / $5.0100 | Buy Now |
Part Details for AD823ARZ
AD823ARZ CAD Models
AD823ARZ Part Data Attributes
|
|
AD823ARZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD823ARZ
Analog Devices Inc
16 MHz, Rail-to-Rail FET Input Dual Amplifier
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.005 µA | |
| Bias Current-Max (IIB) @25C | 0.00003 µA | |
| Common-mode Reject Ratio-Min | 66 dB | |
| Common-mode Reject Ratio-Nom | 82 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 3500 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Min | 17 V/us | |
| Slew Rate-Nom | 25 V/us | |
| Supply Current-Max | 8.4 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Gain-Min | 30000 | |
| Wideband | NO | |
| Width | 3.9 mm |
