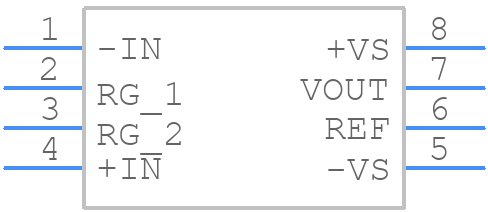

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8227BRZ-RL by Analog Devices Inc
Results Overview of AD8227BRZ-RL by Analog Devices Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Industrial Automation
Aerospace and Defense
Energy and Power Systems
Healthcare
Medical Imaging
AD8227BRZ-RL Information
AD8227BRZ-RL by Analog Devices Inc is an Instrumentation Amplifier.
Instrumentation Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8227BRZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Amplifiers | 621 |
|
RFQ |
Part Details for AD8227BRZ-RL
AD8227BRZ-RL CAD Models
AD8227BRZ-RL Part Data Attributes
|
|
AD8227BRZ-RL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8227BRZ-RL
Analog Devices Inc
Wide Supply Range, Rail-to-Rail Output Instrumentation Amplifier
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | INSTRUMENTATION AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.027 µA | |
| Bandwidth (3dB)-Nom | 0.25 MHz | |
| Common-mode Reject Ratio-Min | 110 dB | |
| Input Offset Current-Max (IIO) | 0.0015 µA | |
| Input Offset Voltage-Max | 100 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Non-linearity-Max | 0.015% | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 0.8 V/us | |
| Supply Current-Max | 0.6 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Voltage Gain-Max | 1000 | |
| Voltage Gain-Min | 5 | |
| Width | 3.9 mm |
Alternate Parts for AD8227BRZ-RL
This table gives cross-reference parts and alternative options found for AD8227BRZ-RL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8227BRZ-RL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD8227BRZ | Analog Devices Inc | $3.5839 | Wide Supply Range, Rail-to-Rail Output Instrumentation Amplifier | AD8227BRZ-RL vs AD8227BRZ |
AD8227BRZ-RL Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD8227BRZ-RL involves keeping the input and output traces separate, using a ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer and to avoid running digital signals near the analog signals.
-
The gain resistor values for the AD8227BRZ-RL depend on the desired gain and the input impedance of the signal source. A good starting point is to use the gain calculation formula provided in the datasheet and then adjust the values based on the specific requirements of your application. It's also recommended to use 1% or 0.1% tolerance resistors to ensure accurate gain settings.
-
The AD8227BRZ-RL can handle input voltages up to ±25V without damaging the device. However, it's recommended to limit the input voltage to ±20V to ensure optimal performance and to prevent damage to the device.
-
Yes, the AD8227BRZ-RL can be used in a single-supply configuration. However, it's recommended to use a voltage divider or a level-shifting circuit to shift the input signal to the correct voltage range for the device. Additionally, the output voltage swing will be limited to the supply voltage minus the headroom voltage (typically 1.5V).
-
The AD8227BRZ-RL has a built-in antialiasing filter, but additional filtering may be required depending on the specific requirements of your application. A good approach is to use a combination of passive and active filters, such as a low-pass filter followed by a notch filter, to remove high-frequency noise and aliasing.
