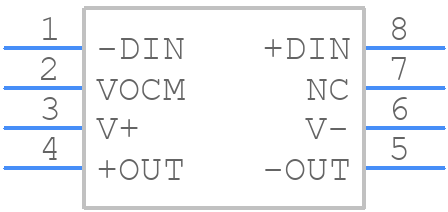

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8131ARM by Analog Devices Inc
Results Overview of AD8131ARM by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
AD8131ARM Information
AD8131ARM by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for AD8131ARM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | IC,DIFFERENTIAL AMPLIFIER,SINGLE,TSSOP,8PIN,PLASTIC | 80 |
|
$5.8284 / $9.4515 | Buy Now |
|
|
Quest Components | IC,DIFFERENTIAL AMPLIFIER,SINGLE,TSSOP,8PIN,PLASTIC | 9 |
|
$3.6113 / $7.2225 | Buy Now |
|
|
Rochester Electronics | Operational Amplifier, 1 Func, 7000uV Offset-Max, BIPolar, PDSO8 RoHS: Not Compliant Status: Obsolete Min Qty: 1 | 32087 |
|
$2.7200 / $3.4000 | Buy Now |
|
|
Win Source Electronics | IC OPAMP DIFF 400MHZ 8MSOP | 8600 |
|
$3.0000 / $3.8750 | Buy Now |
Part Details for AD8131ARM
AD8131ARM CAD Models
AD8131ARM Part Data Attributes
|
|
AD8131ARM
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8131ARM
Analog Devices Inc
Low-Cost, High Speed Differential Driver
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | MO-187AA, MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | YES | |
| Driver Number of Bits | 1 | |
| Input Characteristics | DIFFERENTIAL | |
| Interface IC Type | LINE DRIVER | |
| JESD-30 Code | S-PDSO-G8 | |
| Length | 3 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 7.2 V | |
| Output Characteristics | DIFFERENTIAL | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 1.4 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 3 mm |
