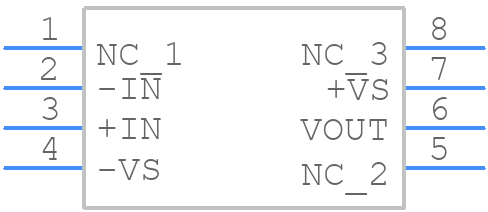

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8091ARZ-REEL7 by Analog Devices Inc
Results Overview of AD8091ARZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD8091ARZ-REEL7 Information
AD8091ARZ-REEL7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8091ARZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7262
|
Newark | Op-Amp, 110Mhz, -40 To 85Deg C, Nsoic-8, No. Of Channels:1Channels, Gain Bandwidth Product:110Mhz, Supply Voltage Range:3V To 12V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Amplifier Type:Voltage Feedback, Input Bias Current:1.3Μa Rohs Compliant: Yes |Analog Devices AD8091ARZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1074 |
|
$1.2600 / $3.2400 | Buy Now |
|
DISTI #
584-AD8091ARZ-R7
|
Mouser Electronics | High Speed Operational Amplifiers Low Cost Rail-to-Rail Output Amplifier RoHS: Compliant | 606 |
|
$1.2100 / $3.2400 | Buy Now |
|
DISTI #
V72:2272_06213859
|
Arrow Electronics | Op Amp Single High Speed Amplifier R-R O/P ±6V/12V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2129 Container: Cut Strips | Americas - 58 |
|
$1.2440 / $2.0010 | Buy Now |
|
|
Analog Devices Inc | Low Cost Rail-to-Rail Output A Min Qty: 1 Package Multiple: 1000 | 3642 |
|
$1.2125 / $3.8000 | Buy Now |
|
DISTI #
26646888
|
Verical | Op Amp Single High Speed Amplifier R-R O/P ±6V/12V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 3000 |
|
$1.1998 | Buy Now |
|
DISTI #
58343031
|
Verical | Op Amp Single High Speed Amplifier R-R O/P ±6V/12V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2129 | Americas - 58 |
|
$1.2440 / $1.5860 | Buy Now |
|
|
Bristol Electronics | 382 |
|
RFQ | ||
|
|
Quest Components | OP-AMP, 27000 UV OFFSET-MAX, SOIC-8, TandR, LEAD FREE | 40 |
|
$2.0400 / $3.0600 | Buy Now |
|
|
Rochester Electronics | AD8091 - Operational Amplifier, 27000uV Offset-Max, BIPolar, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 30900 |
|
$1.3200 / $1.6500 | Buy Now |
Part Details for AD8091ARZ-REEL7
AD8091ARZ-REEL7 CAD Models
AD8091ARZ-REEL7 Part Data Attributes
|
|
AD8091ARZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8091ARZ-REEL7
Analog Devices Inc
Low Cost, High Speed Rail-to-Rail Amplifier (Single)
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 3.5 µA | |
| Bias Current-Max (IIB) @25C | 2.6 µA | |
| Common-mode Reject Ratio-Nom | 88 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 27000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -6.3 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Min | 90 V/us | |
| Slew Rate-Nom | 170 V/us | |
| Supply Current-Max | 5.5 mA | |
| Supply Voltage Limit-Max | 6.3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 110000 | |
| Voltage Gain-Min | 5000 | |
| Wideband | YES | |
| Width | 3.9 mm |
Alternate Parts for AD8091ARZ-REEL7
This table gives cross-reference parts and alternative options found for AD8091ARZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8091ARZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD8051ARZ-REEL | Analog Devices Inc | $2.0317 | Low Cost, High Speed, Single, Rail-to-Rail Amplifier | AD8091ARZ-REEL7 vs AD8051ARZ-REEL |
| AD8051ARZ | Analog Devices Inc | $2.1384 | Low Cost, High Speed, Single, Rail-to-Rail Amplifier | AD8091ARZ-REEL7 vs AD8051ARZ |
| AD8091AR | Analog Devices Inc | Check for Price | IC OP-AMP, 27000 uV OFFSET-MAX, PDSO8, MS-012AA, SOIC-8, Operational Amplifier | AD8091ARZ-REEL7 vs AD8091AR |
| AD8091AR-REEL7 | Analog Devices Inc | Check for Price | IC OP-AMP, 27000 uV OFFSET-MAX, PDSO8, MS-012AA, SOIC-8, Operational Amplifier | AD8091ARZ-REEL7 vs AD8091AR-REEL7 |
| AD8051AR-REEL | Analog Devices Inc | Check for Price | IC OP-AMP, 27000 uV OFFSET-MAX, PDSO8, MS-012AA, SOIC-8, Operational Amplifier | AD8091ARZ-REEL7 vs AD8051AR-REEL |
AD8091ARZ-REEL7 Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the AD8091ARZ-REEL7 is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability, it's essential to follow proper PCB layout practices, use a low-ESR capacitor for decoupling, and consider adding a small capacitor (e.g., 10nF) in parallel with the feedback resistor to improve phase margin.
-
The recommended input common-mode voltage range for the AD8091ARZ-REEL7 is between VEE + 2V and VCC - 2V, where VEE is the negative supply voltage and VCC is the positive supply voltage.
-
While the AD8091ARZ-REEL7 can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate (20V/μs) and limited output current (±20mA). A dedicated comparator like the AD8561 or AD9671 might be a better option.
-
To ensure ESD protection, use a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection device, such as the ADG3231, in conjunction with proper PCB layout practices and a robust grounding scheme.
