AD8067ARTZ-REEL7 Information
AD8067ARTZ-REEL7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8067ARTZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80AK8705
|
Newark | Op-Amp, 54Mhz, -40 To 85Deg C, Sot-23-5, No. Of Channels:1Channels, Gain Bandwidth Product:54Mhz, Supply Voltage Range:5V To 24V, Ic Case/Package:Sot-23, No. Of Pins:5Pins, Amplifier Type:Voltage Feedback, Input Bias Current:0.6Pa Rohs Compliant: Yes |Analog Devices AD8067ARTZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 6 |
|
$3.4000 / $5.8800 | Buy Now |
|
DISTI #
505-AD8067ARTZ-REEL7CT-ND
|
DigiKey | IC OPAMP VFB 1 CIRCUIT SOT23-5 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1427 In Stock |
|
$3.0625 / $7.4300 | Buy Now |
|
DISTI #
584-AD8067ARTZ-R7
|
Mouser Electronics | Precision Amplifiers High Gain Band Width High Perf Fast FET RoHS: Compliant | 1110 |
|
$3.1200 / $5.8800 | Buy Now |
|
DISTI #
V72:2272_06213610
|
Arrow Electronics | Op Amp Single Precision Amplifier R-R O/P ±12V/24V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2343 Container: Cut Strips | Americas - 4072 |
|
$3.1420 / $4.1390 | Buy Now |
|
|
Analog Devices Inc | High Gain Band Width High Perf Min Qty: 1 Package Multiple: 3000 | 286 |
|
$2.4500 / $7.4300 | Buy Now |
|
DISTI #
73509300
|
Verical | Op Amp Single Precision Amplifier R-R O/P ±12V/24V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2343 | Americas - 4072 |
|
$3.1420 / $4.1390 | Buy Now |
|
|
Bristol Electronics | 16 |
|
RFQ | ||
|
|
Vyrian | Amplifiers | 1779 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP VFB 54MHZ RRO SOT23-5 | 11429 |
|
$4.5105 / $5.8262 | Buy Now |
Part Details for AD8067ARTZ-REEL7

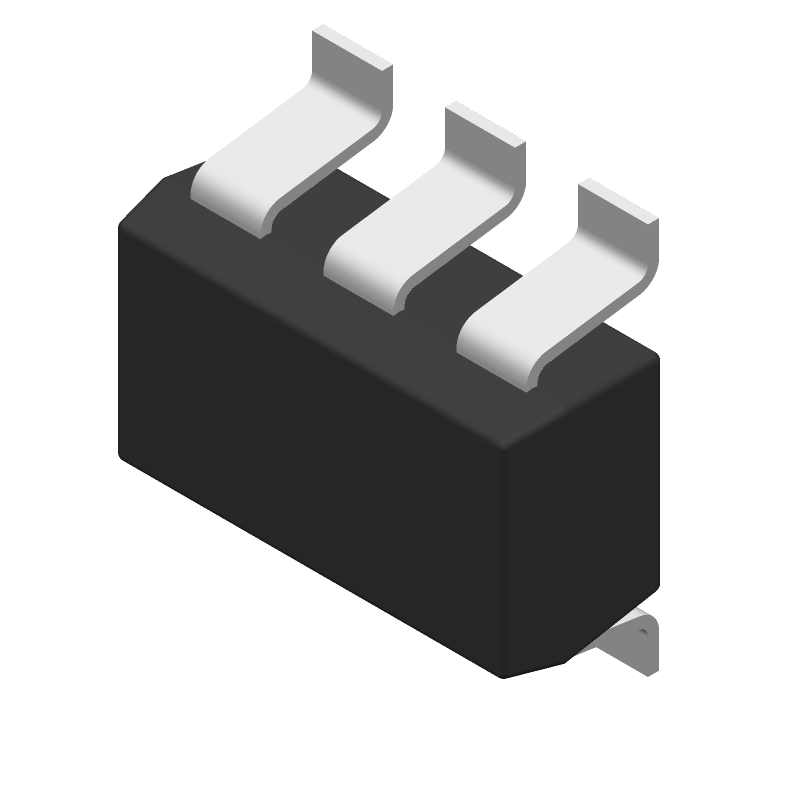

AD8067ARTZ-REEL7 CAD Models
AD8067ARTZ-REEL7 Part Data Attributes
|
|
AD8067ARTZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8067ARTZ-REEL7
Analog Devices Inc
High Gain Bandwidth Product, Precision FastFET™ Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, PLASTIC, MO-178AA, SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Manufacturer Package Code | RJ-5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.000005 µA | |
| Common-mode Reject Ratio-Nom | 106 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 1000 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -12 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Slew Rate-Min | 390 V/us | |
| Slew Rate-Nom | 640 V/us | |
| Supply Voltage Limit-Max | 12 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Gain-Min | 100000 | |
| Wideband | NO | |
| Width | 1.6 mm |
Alternate Parts for AD8067ARTZ-REEL7
This table gives cross-reference parts and alternative options found for AD8067ARTZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8067ARTZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD8067ART-R2 | Analog Devices Inc | Check for Price | OP-AMP, 1000uV OFFSET-MAX, PDSO5, MO-178AA, SOT-23, 5 PIN | AD8067ARTZ-REEL7 vs AD8067ART-R2 |
AD8067ARTZ-REEL7 Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the AD8067 is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability, use a compensation capacitor (CC) of 10pF to 22pF between pins 2 and 6, and a series resistor (RS) of 10Ω to 50Ω in the feedback path. This will help to reduce ringing and oscillations.
-
Use a star-grounding technique, where the analog and digital grounds are connected at a single point. Keep the input and output traces short and away from noise sources. Use a ground plane to reduce electromagnetic interference (EMI).
-
While the AD8067 can be used as a comparator, it's not recommended due to its op-amp architecture. The AD8067 is optimized for linear applications, and its output stage is not designed for high-speed switching. For comparator applications, consider using a dedicated comparator like the AD8561.
-
Use proper electrostatic discharge (ESD) protection when handling the AD8067, such as wearing an ESD strap, using an ESD mat, and storing the devices in ESD-protective packaging. The AD8067 has a human body model (HBM) ESD rating of 2kV.
