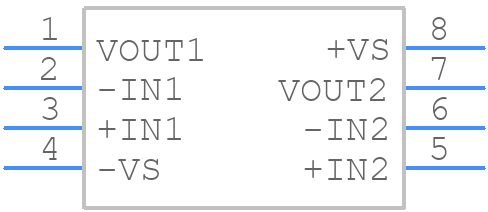

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8066ARZ-R7 by Analog Devices Inc
Results Overview of AD8066ARZ-R7 by Analog Devices Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AD8066ARZ-R7 Information
AD8066ARZ-R7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8066ARZ-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47AK1361
|
Newark | Op-Amp, 145Mhz, -40 To 85Deg C, Nsoic-8, No. Of Channels:2Channels, Gain Bandwidth Product:145Mhz, Supply Voltage Range:5V To 24V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Amplifier Type:Voltage Feedback, Input Bias Current:2Pa Rohs Compliant: Yes |Analog Devices AD8066ARZ-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 111 |
|
$4.1300 / $8.0300 | Buy Now |
|
DISTI #
505-AD8066ARZ-R7CT-ND
|
DigiKey | IC VOLTAGE FEEDBACK 2 CIRC 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1979 In Stock |
|
$4.0375 / $9.1100 | Buy Now |
|
DISTI #
584-AD8066ARZ-R7
|
Mouser Electronics | Operational Amplifiers - Op Amps SOIC Dual Hi Perf Hi Speed FET Amplifier RoHS: Compliant | 128 |
|
$4.1900 / $7.5400 | Buy Now |
|
DISTI #
E54:1762_00108025
|
Arrow Electronics | Op Amp Dual High Performance Amplifier R-R O/P ±12V/24V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks Date Code: 2450 | Europe - 1000 |
|
$4.3350 | Buy Now |
|
DISTI #
V72:2272_06213606
|
Arrow Electronics | Op Amp Dual High Performance Amplifier R-R O/P ±12V/24V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2405 Container: Cut Strips | Americas - 605 |
|
$4.3350 / $8.3980 | Buy Now |
|
|
Analog Devices Inc | SOIC Dual Hi Perf Hi Speed FET Min Qty: 1 Package Multiple: 1000 | 43 |
|
$4.0375 / $9.1100 | Buy Now |
|
DISTI #
87743566
|
Verical | Op Amp Dual High Performance Amplifier R-R O/P ±12V/24V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2450 | Americas - 1000 |
|
$8.7270 | Buy Now |
|
DISTI #
88119501
|
Verical | Op Amp Dual High Performance Amplifier R-R O/P ±12V/24V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2405 | Americas - 605 |
|
$4.3350 / $8.3980 | Buy Now |
|
|
Quest Components | IC,OP-AMP,DUAL,BIPOLAR/JFET,SOP,8PIN,PLASTIC | 9 |
|
$2.9436 / $4.0140 | Buy Now |
|
DISTI #
AD8066ARZ-R7
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 1000 | 0 |
|
$4.2200 | Buy Now |
Part Details for AD8066ARZ-R7
AD8066ARZ-R7 CAD Models
AD8066ARZ-R7 Part Data Attributes
|
|
AD8066ARZ-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8066ARZ-R7
Analog Devices Inc
High Performance, 145 MHz FastFET™ Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.000006 µA | |
| Bias Current-Max (IIB) @25C | 0.000006 µA | |
| Common-mode Reject Ratio-Min | 85 dB | |
| Common-mode Reject Ratio-Nom | 100 dB | |
| Frequency Compensation | NO | |
| Input Offset Current-Max (IIO) | 0.000125 µA | |
| Input Offset Voltage-Max | 1500 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -13.2 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,0.236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Min | 130 V/us | |
| Slew Rate-Nom | 180 V/us | |
| Supply Current-Max | 14.4 mA | |
| Supply Voltage Limit-Max | 13.2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Gain-Min | 100000 | |
| Width | 3.9 mm |
