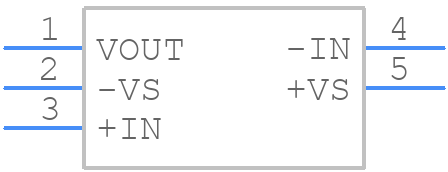

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8031ARTZ-R2 by Analog Devices Inc
Results Overview of AD8031ARTZ-R2 by Analog Devices Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD8031ARTZ-R2 Information
AD8031ARTZ-R2 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8031ARTZ-R2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7204
|
Newark | Op-Amp, 80Mhz, -40 To 85Deg C, Sot-23-5, No. Of Channels:1Channels, Gain Bandwidth Product:80Mhz, Supply Voltage Range:± 1.35V To ± 6V, Ic Case/Package:Sot-23, No. Of Pins:5Pins, Amplifier Type:Voltage Feedback, Product Range:- Rohs Compliant: Yes |Analog Devices AD8031ARTZ-R2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 103 |
|
$3.1500 / $6.6300 | Buy Now |
|
DISTI #
505-AD8031ARTZ-R2CT-ND
|
DigiKey | IC OPAMP VFB 1 CIRCUIT SOT23-5 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1854 In Stock |
|
$2.6250 / $6.6300 | Buy Now |
|
DISTI #
584-AD8031ARTZ-R2
|
Mouser Electronics | Operational Amplifiers - Op Amps SOT23 SINGLE LOW POWER OP AMP RoHS: Compliant | 50 |
|
$2.6900 / $5.1200 | Buy Now |
|
|
Analog Devices Inc | SOT23 SINGLE LOW POWER OP AMP Min Qty: 1 Package Multiple: 250 | 639 |
|
$2.1000 / $6.6300 | Buy Now |
|
DISTI #
26616790
|
Verical | Op Amp Single High Speed Amplifier R-R I/O ±6V/12V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 250 Package Multiple: 250 | Americas - 250 |
|
$2.6415 | Buy Now |
|
|
Bristol Electronics | 156 |
|
RFQ | ||
|
|
Quest Components | IC,OP-AMP,SINGLE,BIPOLAR,TSOP,5PIN,PLASTIC | 124 |
|
$7.5735 / $13.7700 | Buy Now |
|
DISTI #
AD8031ARTZ-R2
|
TME | IC: operational amplifier, 80MHz, Ch: 1, SOT23-5, 500nA Min Qty: 1 | 0 |
|
$4.6100 / $6.8400 | RFQ |
|
DISTI #
AD8031ARTZ-R2
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 250 | 0 |
|
$2.7400 / $2.8600 | Buy Now |
|
DISTI #
SMC-AD8031ARTZ-R2
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 281 |
|
RFQ |
Part Details for AD8031ARTZ-R2
AD8031ARTZ-R2 CAD Models
AD8031ARTZ-R2 Part Data Attributes
|
|
AD8031ARTZ-R2
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8031ARTZ-R2
Analog Devices Inc
2.7 V, 800 µA, 80 MHz Rail-to-Rail I/O Single Amplifier
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOT-23 | |
| Package Description | ROHS COMPLIANT, PLASTIC, SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Manufacturer Package Code | RJ-5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 2 µA | |
| Bias Current-Max (IIB) @25C | 2 µA | |
| Common-mode Reject Ratio-Nom | 80 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 10000 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -6.3 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Slew Rate-Min | 25 V/us | |
| Slew Rate-Nom | 35 V/us | |
| Supply Current-Max | 1.6 mA | |
| Supply Voltage Limit-Max | 6.3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 80000 | |
| Voltage Gain-Min | 5000 | |
| Wideband | YES | |
| Width | 1.6 mm |
Alternate Parts for AD8031ARTZ-R2
This table gives cross-reference parts and alternative options found for AD8031ARTZ-R2. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8031ARTZ-R2, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD8031ARTZ-REEL7 | Analog Devices Inc | $2.3900 | 2.7 V, 800 µA, 80 MHz Rail-to-Rail I/O Single Amplifier | AD8031ARTZ-R2 vs AD8031ARTZ-REEL7 |
| AD8031ART-REEL7 | Analog Devices Inc | Check for Price | 2.7 V, 800 µA, 80 MHz Rail-to-Rail I/O Single Amplifier | AD8031ARTZ-R2 vs AD8031ART-REEL7 |
| AD8031ART-REEL | Rochester Electronics LLC | Check for Price | OP-AMP, 10000 uV OFFSET-MAX, PDSO5, PLASTIC, MO-178AA, SOT-23, 5 PIN | AD8031ARTZ-R2 vs AD8031ART-REEL |
| AD8031ART | Analog Devices Inc | Check for Price | IC OP-AMP, 10000 uV OFFSET-MAX, PDSO5, PLASTIC, SOT-23, 5 PIN, Operational Amplifier | AD8031ARTZ-R2 vs AD8031ART |
| AD8031ARTZ-R2 | Rochester Electronics LLC | Check for Price | OP-AMP, 10000 uV OFFSET-MAX, PDSO5, ROHS COMPLIANT, PLASTIC, SOT-23, 5 PIN | AD8031ARTZ-R2 vs AD8031ARTZ-R2 |
AD8031ARTZ-R2 Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the AD8031ARTZ-R2 is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability in a gain-of-10 configuration, add a 10nF to 22nF capacitor in parallel with a 1kΩ to 2kΩ resistor between the output and the inverting input. This helps to compensate for the phase shift and ensure stability.
-
To minimize noise and EMI, use a star-ground configuration, keep the input and output traces short and away from each other, and use a ground plane to shield the device. Also, avoid running digital signals near the AD8031ARTZ-R2.
-
Yes, the AD8031ARTZ-R2 can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC - 1.5V to VCC + 0.5V. Ensure that the input signal is within this range to maintain proper operation.
-
Handle the AD8031ARTZ-R2 with ESD-protective equipment, such as wrist straps or mats, to prevent damage from electrostatic discharge. Also, ensure that the device is stored in an ESD-protective package when not in use.
