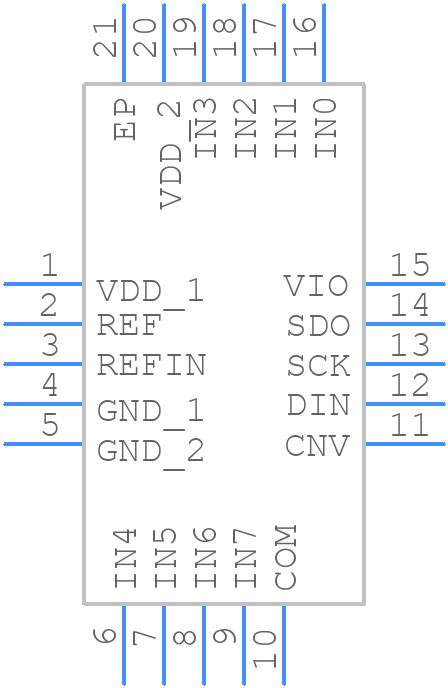

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD7949SCPZ-EP-R2 by Analog Devices Inc
Results Overview of AD7949SCPZ-EP-R2 by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD7949SCPZ-EP-R2 Information
AD7949SCPZ-EP-R2 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD7949SCPZ-EP-R2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
AD7949SCPZ-EP-R2CT-ND
|
DigiKey | IC ADC 14BIT SAR 20LFCSP Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$13.1375 / $22.2200 | Buy Now |
|
DISTI #
584-AD7949SCPZ-EP-R2
|
Mouser Electronics | Analog to Digital Converters - ADC 8 ch 250ksps 14bit ADC IC RoHS: Compliant | 250 |
|
$13.4800 / $22.0600 | Buy Now |
|
DISTI #
29002204
|
Verical | 8-Channel Single ADC SAR 250ksps 14-bit Serial 20-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 250 Package Multiple: 250 | Americas - 1250 |
|
$13.2201 | Buy Now |
|
DISTI #
AD7949SCPZEPR2
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 250 | 0 |
|
$13.7400 / $14.2900 | Buy Now |
Part Details for AD7949SCPZ-EP-R2
AD7949SCPZ-EP-R2 CAD Models
AD7949SCPZ-EP-R2 Part Data Attributes
|
|
AD7949SCPZ-EP-R2
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD7949SCPZ-EP-R2
Analog Devices Inc
14-Bit, 8-Channel, 250 kSPS PulSAR ADC
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | CP-20-10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A001.A.2.C | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2018-05-02 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 2.053 V | |
| Analog Input Voltage-Min | -2.043 V | |
| Conversion Time-Max | 2.2 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | S-XQCC-N20 | |
| JESD-609 Code | e4 | |
| Length | 4 mm | |
| Linearity Error-Max (EL) | 1% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Bit Code | BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC20,.16SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Sample Rate | 0.25 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
AD7949SCPZ-EP-R2 Frequently Asked Questions (FAQ)
-
A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
-
The AD7949SCPZ-EP-R2 has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device also has an internal voltage reference that can be calibrated using the VREFIN pin. It is recommended to follow the calibration procedure outlined in the datasheet to ensure accurate conversions.
-
The maximum sampling rate of the AD7949SCPZ-EP-R2 is 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal.
-
The AD7949SCPZ-EP-R2 outputs 16-bit data in a twos-complement format. The output data can be handled by using a microcontroller or a digital signal processor to read the data from the SPI interface. The output data can be processed and formatted according to the system's requirements.
-
The power consumption of the AD7949SCPZ-EP-R2 is typically 15 mW at 3.3 V and 250 kSPS. To minimize power consumption, the device can be powered down when not in use, and the power-down mode can be controlled using the PDWN pin. Additionally, the device's power consumption can be reduced by reducing the clock frequency and the sampling rate.
