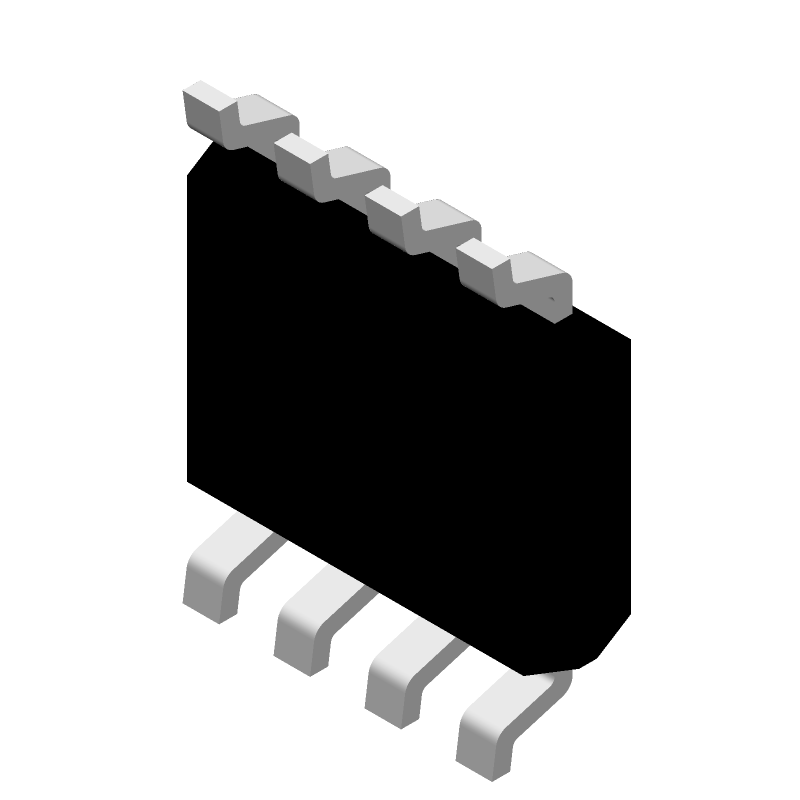

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD7896AR by Analog Devices Inc
Results Overview of AD7896AR by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD7896AR Information
AD7896AR by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD7896AR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | IC,A/D CONVERTER,SINGLE,12-BIT,CMOS,SOP,8PIN | 132 |
|
$19.3178 / $24.1472 | Buy Now |
|
|
Quest Components | IC,A/D CONVERTER,SINGLE,12-BIT,CMOS,SOP,8PIN | 75 |
|
$15.7500 / $20.2500 | Buy Now |
|
|
Rochester Electronics | 12-Bit, Serial ADC RoHS: Not Compliant Status: Obsolete Min Qty: 1 | 36603 |
|
$10.5500 / $13.1900 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ |
Part Details for AD7896AR
AD7896AR CAD Models
AD7896AR Part Data Attributes
|
|
AD7896AR
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD7896AR
Analog Devices Inc
2.7 V to 5.5 V, 12-Bit, 8 µs ADC in 8-Pin SO/DIP
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | not_compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 5.5 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 8 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e0 | |
| Length | 4.9 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 240 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.1 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 3.9 mm |
Alternate Parts for AD7896AR
This table gives cross-reference parts and alternative options found for AD7896AR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD7896AR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD7896JRZ | Analog Devices Inc | $12.1836 | 2.7 V to 5.5 V, 12-Bit, 8 µs ADC in 8-Pin SO/DIP | AD7896AR vs AD7896JRZ |
| AD7896BRZ | Analog Devices Inc | $28.3588 | 2.7 V to 5.5 V, 12-Bit, 8 µs ADC in 8-Pin SO/DIP | AD7896AR vs AD7896BRZ |
| AD7896ARZ-REEL | Analog Devices Inc | Check for Price | 2.7 V to 5.5 V, 12-Bit, 8 µs ADC in 8-Pin SO/DIP | AD7896AR vs AD7896ARZ-REEL |
| AD7896AR-REEL7 | Analog Devices Inc | Check for Price | IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO8, MS-012AA, SOIC-8, Analog to Digital Converter | AD7896AR vs AD7896AR-REEL7 |
| AD7896JR-REEL | Analog Devices Inc | Check for Price | IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO8, MS-012AA, SOIC-8, Analog to Digital Converter | AD7896AR vs AD7896JR-REEL |
| AD7896AR-REEL | Analog Devices Inc | Check for Price | 2.7 V to 5.5 V, 12-Bit, 8 µs ADC in 8-Pin SO/DIP | AD7896AR vs AD7896AR-REEL |
| AD7896BRZ-REEL7 | Analog Devices Inc | Check for Price | 2.7 V to 5.5 V, 12-Bit, 8 µs ADC in 8-Pin SO/DIP | AD7896AR vs AD7896BRZ-REEL7 |
| AD7896BR | Analog Devices Inc | Check for Price | 2.7 V to 5.5 V, 12-Bit, 8 µs ADC in 8-Pin SO/DIP | AD7896AR vs AD7896BR |
| AD7896BRZ-REEL | Analog Devices Inc | Check for Price | 2.7 V to 5.5 V, 12-Bit, 8 µs ADC in 8-Pin SO/DIP | AD7896AR vs AD7896BRZ-REEL |
| AD7896BR-REEL | Analog Devices Inc | Check for Price | 2.7 V to 5.5 V, 12-Bit, 8 µs ADC in 8-Pin SO/DIP | AD7896AR vs AD7896BR-REEL |
AD7896AR Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper operation and prevents any potential latch-up conditions.
-
If the analog input signal exceeds the maximum rating, it's recommended to use an external voltage limiter or clamp circuit to prevent damage to the device. Additionally, consider using a buffer amplifier or an attenuator to reduce the signal amplitude.
-
Clock jitter can affect the AD7896AR's performance by introducing noise and reducing the converter's effective resolution. It's recommended to use a low-jitter clock source and to consider using a clock jitter attenuator or a phase-locked loop (PLL) to minimize the impact of clock jitter.
-
Yes, the AD7896AR can be used in a multiplexed configuration. However, it's essential to ensure that the multiplexer switch-on resistance is low enough to maintain the required signal bandwidth and to minimize the impact of switch-on time on the converter's performance.
-
To optimize the layout and grounding for the AD7896AR, follow good analog design practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing noise coupling between signals. Additionally, consider using a star-ground configuration and placing the AD7896AR close to the analog signal source.
