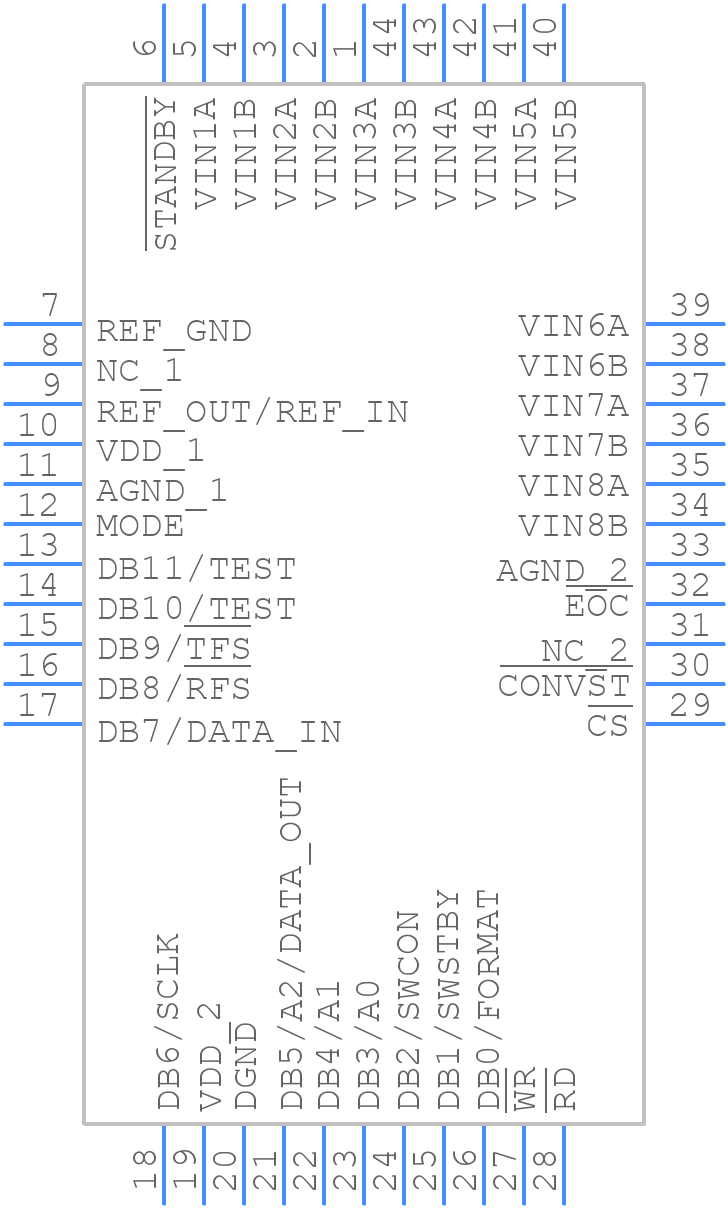

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD7891APZ-2 by Analog Devices Inc
Results Overview of AD7891APZ-2 by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
AD7891APZ-2 Information
AD7891APZ-2 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD7891APZ-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4296479
|
Farnell | ADC, 12BIT, 500KSPS, PLCC-44 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 26 |
|
$27.7865 / $41.4271 | Buy Now |
|
DISTI #
AD7891APZ-2-ND
|
DigiKey | IC DAS 12BIT 500K 44PLCC Min Qty: 1 Lead time: 10 Weeks Container: Tube | Temporarily Out of Stock |
|
$26.5374 / $38.5200 | Buy Now |
|
DISTI #
584-AD7891APZ-2
|
Mouser Electronics | Data Acquisition ADCs/DACs - Specialized 8 CHANNEL, 12-BIT ADC I.C. RoHS: Compliant | 27 |
|
$27.6100 / $38.6300 | Buy Now |
|
DISTI #
V36:1790_06212223
|
Arrow Electronics | 8-Channel Single ADC SAR 500ksps 12-bit Parallel/Serial 44-Pin PLCC Tube RoHS: Compliant Min Qty: 27 Package Multiple: 27 Lead time: 10 Weeks Date Code: 2216 | Americas - 39 |
|
$24.7900 | Buy Now |
|
|
Analog Devices Inc | 8 CHANNEL, 12-BIT ADC I.C. Package Multiple: 27 | 0 |
|
$21.2300 / $38.5200 | Buy Now |
|
DISTI #
77688871
|
Verical | 8-Channel Single ADC SAR 500ksps 12-bit Parallel/Serial 44-Pin PLCC Tube RoHS: Compliant Min Qty: 27 Package Multiple: 27 Date Code: 2216 | Americas - 27 |
|
$24.7900 | Buy Now |
|
DISTI #
AD7891APZ-2
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 27 | 0 |
|
$27.7600 / $29.6600 | Buy Now |
|
|
Cytech Systems Limited | IC DAS 12BIT 500K 44PLCC | 2700 |
|
RFQ | |
|
|
Vyrian | Converters | 28 |
|
RFQ |
Part Details for AD7891APZ-2
AD7891APZ-2 CAD Models
AD7891APZ-2 Part Data Attributes
|
|
AD7891APZ-2
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD7891APZ-2
Analog Devices Inc
True Bipolar Input, Single Supply, Parallel, 8-Channel, 12-Bit High Speed Data Acquisition System
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | LPCC | |
| Package Description | PLASTIC, MO-047AC, LCC-44 | |
| Pin Count | 44 | |
| Manufacturer Package Code | P-44A | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 2.5 V | |
| Analog Input Voltage-Min | -2.5 V | |
| Conversion Time-Max | 1.6 µs | |
| Converter Type | ADC, PROPRIETARY METHOD | |
| JESD-30 Code | S-PQCC-J44 | |
| JESD-609 Code | e3 | |
| Length | 16.585 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 44 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL, PARALLEL, WORD | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QCCJ | |
| Package Equivalence Code | LDCC44,.7SQ | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.5 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 4.57 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | J BEND | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 16.585 mm |
Alternate Parts for AD7891APZ-2
This table gives cross-reference parts and alternative options found for AD7891APZ-2. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD7891APZ-2, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD7891BP-2 | Analog Devices Inc | Check for Price | True Bipolar Input, Single Supply, Parallel, 8-Channel, 12-Bit High Speed Data Acquisition System | AD7891APZ-2 vs AD7891BP-2 |
| AD7891APZ-2REEL | Analog Devices Inc | Check for Price | True Bipolar Input, Single Supply, Parallel, 8-Channel, 12-Bit High Speed Data Acquisition System | AD7891APZ-2 vs AD7891APZ-2REEL |
| AD7891AP-2 | Analog Devices Inc | Check for Price | True Bipolar Input, Single Supply, Parallel, 8-Channel, 12-Bit High Speed Data Acquisition System | AD7891APZ-2 vs AD7891AP-2 |
| AD7891AS-2 | Analog Devices Inc | Check for Price | IC 8-CH 12-BIT PROPRIETARY METHOD ADC, SERIAL/PARALLEL ACCESS, PQFP44, PLASTIC, MO-112-AA-1, MQFP-44, Analog to Digital Converter | AD7891APZ-2 vs AD7891AS-2 |
| AD7891AS-2Z | Analog Devices Inc | Check for Price | IC 8-CH 12-BIT PROPRIETARY METHOD ADC, SERIAL/PARALLEL ACCESS, PQFP44, PLASTIC, MO-112-AA-1, MQFP-44, Analog to Digital Converter | AD7891APZ-2 vs AD7891AS-2Z |
| AD7891YS-2 | Analog Devices Inc | Check for Price | IC 8-CH 12-BIT PROPRIETARY METHOD ADC, SERIAL/PARALLEL ACCESS, PQFP44, PLASTIC, MO-112-AA-1, MQFP-44, Analog to Digital Converter | AD7891APZ-2 vs AD7891YS-2 |
| AD7891YSZ-2 | Analog Devices Inc | Check for Price | True Bipolar Input, Single Supply, Parallel, 8-Channel, 12-Bit High Speed Data Acquisition System | AD7891APZ-2 vs AD7891YSZ-2 |
| AD7891ASZ-2REEL | Analog Devices Inc | Check for Price | True Bipolar Input, Single Supply, Parallel, 8-Channel, 12-Bit High Speed Data Acquisition System | AD7891APZ-2 vs AD7891ASZ-2REEL |
AD7891APZ-2 Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC before applying VREF. This ensures that the internal reference voltage is stable before the ADC starts converting.
-
To minimize noise and ensure accurate conversions, keep the analog and digital grounds separate, use a solid ground plane, and keep the analog input traces away from digital traces. Also, use a low-ESR capacitor for the VREF pin and a 0.1uF capacitor for the VCC pin.
-
The maximum sampling rate of the AD7891APZ-2 is 250 kSPS. As the sampling rate increases, the power consumption also increases. At maximum sampling rate, the power consumption is approximately 15 mW.
-
The AD7891APZ-2 outputs 12-bit data in a serial format. The output data is in two's complement format, with the most significant bit (MSB) first. The output data can be handled using a microcontroller or a dedicated interface IC.
-
The AD7891APZ-2 operates over a temperature range of -40°C to +85°C. Temperature affects the ADC's offset and gain errors, which can be calibrated out using external circuitry or software correction.
