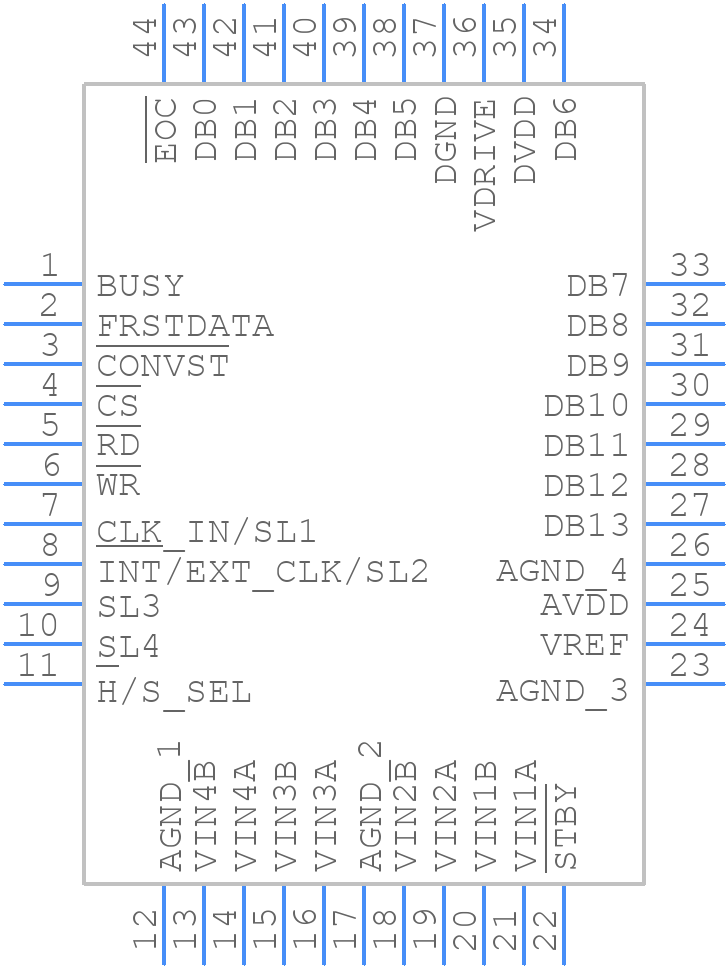

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD7865ASZ-1 by Analog Devices Inc
Results Overview of AD7865ASZ-1 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Electronic Manufacturing
Automotive
AD7865ASZ-1 Information
AD7865ASZ-1 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD7865ASZ-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK9536
|
Newark | Adc, 14Bit, 350Ksps, Qfp-44, Resolution (Bits):14Bit, Sampling Rate:350Ksps, Input Channel Type:Single Ended, Data Interface:Parallel, Supply Voltage Type:Single, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, No. Of Pins:44Pinsrohs Compliant: Yes |Analog Devices AD7865ASZ-1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2 |
|
$33.5300 / $39.4500 | Buy Now |
|
DISTI #
505-AD7865ASZ-1-ND
|
DigiKey | IC ADC 14BIT SAR 44MQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
146 In Stock |
|
$33.5250 / $39.4500 | Buy Now |
|
DISTI #
584-AD7865ASZ-1
|
Mouser Electronics | Analog to Digital Converters - ADC 4 CH. SIMULTANEOUS BIPOLAR,14-B ADC I.C. RoHS: Compliant | 101 |
|
$33.5200 / $46.4100 | Buy Now |
|
|
Analog Devices Inc | 4 CH. SIMULTANEOUS BIPOLAR,14- Package Multiple: 1 | 30 |
|
$25.1200 / $37.1300 | Buy Now |
|
|
Bristol Electronics | 5 |
|
RFQ | ||
|
|
Rochester Electronics | Fast, Low-Power, 4-Channel, Simultaneous Sampling, 14-bit ADC RoHS: Compliant Status: Active Min Qty: 1 | 60 |
|
$28.2300 / $35.2900 | Buy Now |
|
DISTI #
AD7865ASZ-1
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 18 | 0 |
|
$35.0700 / $39.0800 | Buy Now |
|
|
Win Source Electronics | IC ADC 14BIT DUAL 4CH 44-MQFP | 3000 |
|
$41.7084 / $62.5624 | Buy Now |
Part Details for AD7865ASZ-1
AD7865ASZ-1 CAD Models
AD7865ASZ-1 Part Data Attributes
|
|
AD7865ASZ-1
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD7865ASZ-1
Analog Devices Inc
Fast, Low-Power, 4-Channel, Simultaneous Sampling, 14-bit ADC
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFP | |
| Package Description | PLASTIC, QFP-44 | |
| Pin Count | 44 | |
| Manufacturer Package Code | S-44-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 10 V | |
| Analog Input Voltage-Min | -10 V | |
| Conversion Time-Max | 2.4 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | S-PQFP-G44 | |
| JESD-609 Code | e3 | |
| Length | 10 mm | |
| Linearity Error-Max (EL) | 0.0122% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 4 | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 44 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | PARALLEL, WORD | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QFP | |
| Package Equivalence Code | QFP44,.57SQ,32 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.35 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 2.45 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm |
Alternate Parts for AD7865ASZ-1
This table gives cross-reference parts and alternative options found for AD7865ASZ-1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD7865ASZ-1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD7865YSZ-1 | Analog Devices Inc | $66.0760 | Fast, Low-Power, 4-Channel, Simultaneous Sampling, 14-bit ADC | AD7865ASZ-1 vs AD7865YSZ-1 |
| AD7865AS-1 | Analog Devices Inc | Check for Price | IC 4-CH 14-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PQFP44, PLASTIC, QFP-44, Analog to Digital Converter | AD7865ASZ-1 vs AD7865AS-1 |
| AD7865BSZ-1REEL | Analog Devices Inc | Check for Price | Fast, Low-Power, 4-Channel, Simultaneous Sampling, 14-bit ADC | AD7865ASZ-1 vs AD7865BSZ-1REEL |
AD7865ASZ-1 Frequently Asked Questions (FAQ)
-
A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input signals away from the digital signals and use shielding if possible.
-
The AD7865ASZ-1 has an internal calibration circuit that can be enabled by setting the CAL pin high. The calibration procedure involves shorting the input pins to ground and then to the reference voltage, and then reading the output codes to determine the gain and offset errors.
-
The recommended power-up sequence is to apply the analog power supply (VCC) first, followed by the digital power supply (VDD), and then the clock signal. This ensures that the internal biasing circuitry is properly established before the clock signal is applied.
-
Check the input signal range and ensure it is within the specified range. Also, check the clock frequency and ensure it is within the specified range. If the issue persists, try resetting the device or checking the power supply voltages.
-
The AD7865ASZ-1 has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and use thermal vias or heat sinks if necessary. Also, ensure that the device is operated within the specified temperature range of -40°C to 85°C.
