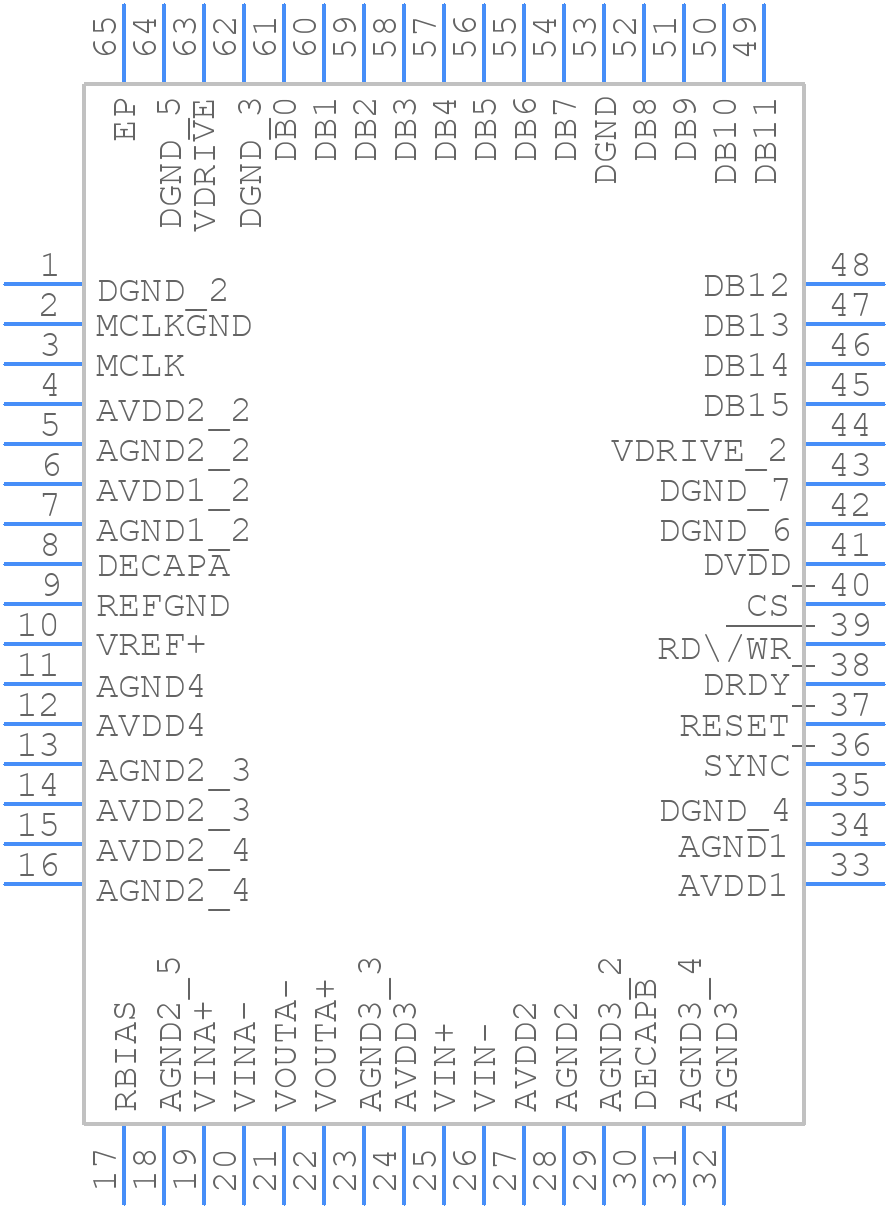

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD7762BSVZ by Analog Devices Inc
Results Overview of AD7762BSVZ by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD7762BSVZ Information
AD7762BSVZ by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD7762BSVZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7034
|
Newark | Adc, 24Bit, 625Ksps, Tqfp-Ep-64, Resolution (Bits):24Bit, Sampling Rate:625Ksps, Input Channel Type:Differential, Single Ended, Data Interface:Parallel, Supply Voltage Type:Single, Supply Voltage Min:2.375V, Supply Voltage Max:5.25V Rohs Compliant: Yes |Analog Devices AD7762BSVZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 7 |
|
$33.7000 / $46.4900 | Buy Now |
|
DISTI #
505-AD7762BSVZ-ND
|
DigiKey | IC ADC 24BIT SIGMA-DELTA 64TQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
25 In Stock |
|
$34.0750 / $47.0200 | Buy Now |
|
DISTI #
584-AD7762BSVZ
|
Mouser Electronics | Analog to Digital Converters - ADC 625KSPS, 19/20 BIT SIGMA DELTA ADC I.C. RoHS: Compliant | 15 |
|
$32.7200 / $46.4900 | Buy Now |
|
DISTI #
V99:2348_06212936
|
Arrow Electronics | 1-Channel Single ADC Delta-Sigma 625ksps 24-bit Parallel 64-Pin TQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2141 | Americas - 53 |
|
$13.9400 / $35.0618 | Buy Now |
|
|
Analog Devices Inc | 625KSPS, 19/20 BIT SIGMA DELTA Package Multiple: 1 | 172 |
|
$23.3500 / $47.0200 | Buy Now |
|
DISTI #
26077866
|
Verical | 1-Channel Single ADC Delta-Sigma 625ksps 24-bit Parallel 64-Pin TQFP Tray RoHS: Compliant Min Qty: 18 Package Multiple: 18 | Americas - 162 |
|
$33.7168 | Buy Now |
|
DISTI #
65744198
|
Verical | 1-Channel Single ADC Delta-Sigma 625ksps 24-bit Parallel 64-Pin TQFP Tray RoHS: Compliant Min Qty: 4 Package Multiple: 4 Date Code: 2239 | Americas - 4 |
|
$73.6520 | Buy Now |
|
DISTI #
AD7762BSVZ
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 18 | 0 |
|
$35.6500 / $39.7200 | Buy Now |
Part Details for AD7762BSVZ
AD7762BSVZ CAD Models
AD7762BSVZ Part Data Attributes
|
|
AD7762BSVZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD7762BSVZ
Analog Devices Inc
625 kSPS, 24-Bit, 109 dB Sigma-Delta ADC with On-Chip Buffer
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFP | |
| Package Description | TQFP-64 | |
| Pin Count | 64 | |
| Manufacturer Package Code | SV-64-4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 3.25 V | |
| Analog Input Voltage-Min | -3.25 V | |
| Converter Type | A/D CONVERTER | |
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e3 | |
| Length | 10 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | PARALLEL, WORD | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTFQFP | |
| Package Equivalence Code | TQFP64,.47SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.625 MHz | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm |
AD7762BSVZ Frequently Asked Questions (FAQ)
-
A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
-
To optimize performance in a noisy environment, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Also, ensure that the AD7762BSVZ is placed away from noisy components and that the PCB is well-shielded.
-
A low-jitter clock source is recommended, such as a crystal oscillator or a high-quality clock generator. To minimize clock jitter, use a clock source with a low phase noise, and ensure that the clock signal is properly terminated and shielded.
-
Calibration involves adjusting the offset and gain of the ADC. Use the CAL pin to initiate calibration, and follow the calibration procedure outlined in the datasheet. Also, ensure that the input signal is within the specified range and that the ADC is operated within its specified temperature range.
-
The recommended power-up sequence is to power up the AVDD pin first, followed by the DVDD pin. Ensure that the power supplies are stable and within the specified voltage range before applying the clock signal.
