AD7616BSTZ by: Analog Devices Inc

16-Channel DAS with 16-Bit, Bipolar Input, Dual Simultaneous Sampling ADC

Part Details for AD7616BSTZ by Analog Devices Inc

Results Overview of AD7616BSTZ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

AD7616BSTZ Information

AD7616BSTZ by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for AD7616BSTZ

Part # Distributor Description Stock Price Buy
DISTI # 60AK6912
Newark Adc, 16Bit, 1Msps, Lqfp-80, Resolution (Bits):16Bit, Sampling Rate:1Msps, Input Channel Type:Bipolar, Single Ended, Data Interface:Parallel, Serial, Supply Voltage Type:Single, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V Rohs Compliant: Yes |Analog Devices AD7616BSTZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 11
  • 1 $42.3900
  • 5 $38.2200
  • 10 $34.0600
  • 25 $32.8000
  • 50 $31.5500
$31.5500 / $42.3900 Buy Now
DISTI # 505-AD7616BSTZ-ND
DigiKey IC ADC 16BIT SAR 80LQFP Min Qty: 1 Lead time: 26 Weeks Container: Tray 166
In Stock
  • 1 $30.9500
  • 10 $22.6160
  • 31 $20.1126
$20.1126 / $30.9500 Buy Now
DISTI # 584-AD7616BSTZ
Mouser Electronics Data Acquisition ADCs/DACs - Specialized 100ksps 16 ch muxed Dual 16B SAR ADC RoHS: Compliant 100
  • 1 $32.6200
  • 10 $26.4400
  • 25 $24.5800
  • 90 $22.9800
  • 270 $22.2900
$22.2900 / $32.6200 Buy Now
Analog Devices Inc 100ksps 16 ch muxed Dual 16B S Package Multiple: 1 33
  • 1 $30.9500
  • 10 $22.6160
  • 1,000 $14.7100
$14.7100 / $30.9500 Buy Now
DISTI # AD7616BSTZ
Richardson RFPD CONVERTER - ADC RoHS: Compliant Min Qty: 31 0
  • 31 $22.4800
  • 100 $21.8800
  • 500 $21.3200
  • 1,000 $21.0400
$21.0400 / $22.4800 Buy Now
Cytech Systems Limited IC ADC 16BIT SAR 80LQFP 1800
RFQ
LCSC 16-Bit 4.75V5.25V LQFP-80(14x14) Analog to Digital Converters (ADC) ROHS 134
  • 1 $16.0049
  • 10 $14.7830
  • 30 $13.3165
  • 90 $11.8135
  • 540 $11.1353
  • 1,080 $10.8416
$10.8416 / $16.0049 Buy Now
MacroQuest Electronics ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 382
  • 1 $18.5700
  • 10 $16.2600
  • 25 $13.9400
$13.9400 / $18.5700 Buy Now
Vyrian Converters 99
RFQ
Win Source Electronics 16-Channel DAS with 16-Bit, Bipolar Input, Dual Simultaneous Sampling ADC | IC ADC 16BIT SAR 80LQFP 6680
  • 4 $15.3450
  • 9 $14.3550
  • 13 $13.8600
  • 18 $12.8701
  • 24 $12.3751
  • 30 $11.8801
$11.8801 / $15.3450 Buy Now

Part Details for AD7616BSTZ

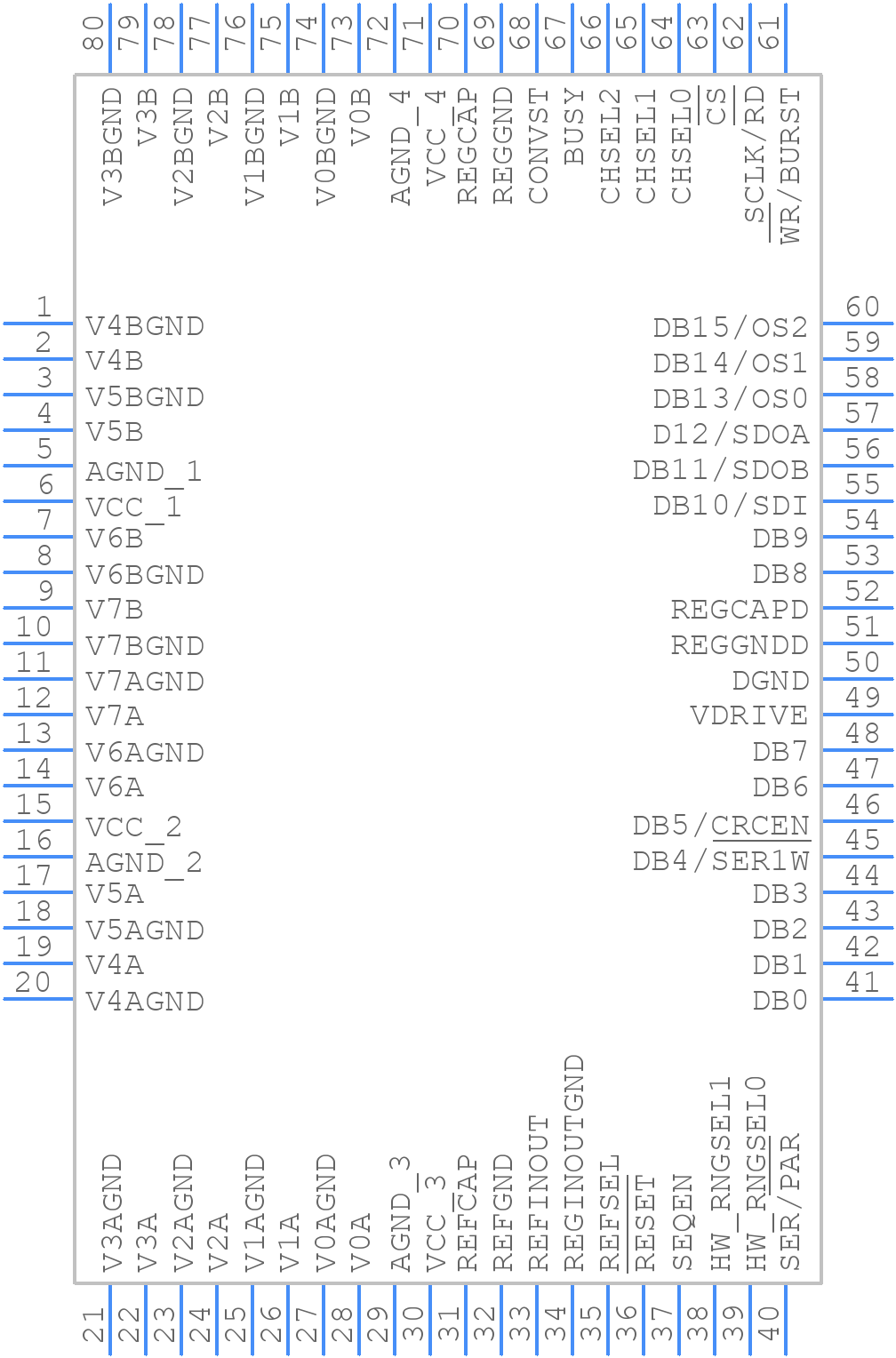

AD7616BSTZ CAD Models

AD7616BSTZ Part Data Attributes

AD7616BSTZ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
AD7616BSTZ Analog Devices Inc 16-Channel DAS with 16-Bit, Bipolar Input, Dual Simultaneous Sampling ADC
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Package Description LQFP-80
Pin Count 80
Manufacturer Package Code ST-80-2
Reach Compliance Code compliant
Samacsys Manufacturer Analog Devices
Analog Input Voltage-Max 10 V
Analog Input Voltage-Min -10 V
Converter Type ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code S-XQFP-G80
JESD-609 Code e3
Length 14 mm
Linearity Error-Max (EL) 0.0031%
Moisture Sensitivity Level 3
Number of Analog In Channels 16
Number of Bits 16
Number of Functions 1
Number of Terminals 80
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Bit Code BINARY
Output Format SERIAL, PARALLEL, WORD
Package Body Material UNSPECIFIED
Package Code LQFP
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE
Peak Reflow Temperature (Cel) 260
Seated Height-Max 1.6 mm
Supply Voltage-Nom 5 V
Surface Mount YES
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 14 mm
