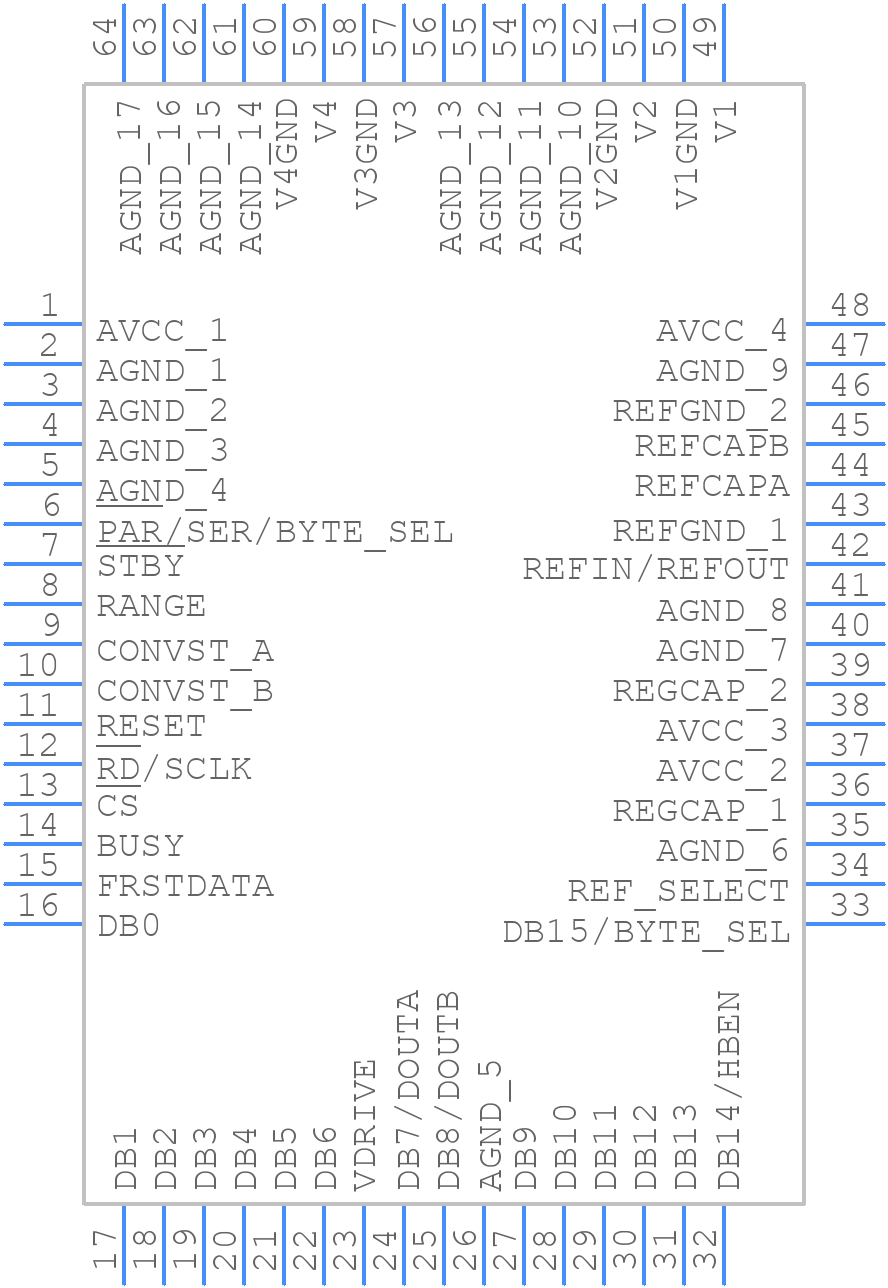

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD7605-4BSTZ-RL by Analog Devices Inc
Results Overview of AD7605-4BSTZ-RL by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD7605-4BSTZ-RL Information
AD7605-4BSTZ-RL by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD7605-4BSTZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-AD7605-4BSTZ-RLTR-ND
|
DigiKey | IC ADC 16BIT SAR 64LQFP Min Qty: 1500 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$18.7250 | Buy Now |
|
DISTI #
584-AD7605-4BSTZ-RL
|
Mouser Electronics | Analog to Digital Converters - ADC 4 channel 300ksps 16Bit sim-SAR RoHS: Compliant | 0 |
|
$18.7200 | Order Now |
|
DISTI #
V72:2272_16600954
|
Arrow Electronics | Data Acquisition System Single ADC 16bit 64-Pin LQFP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2214 Container: Cut Strips | Americas - 606 |
|
$19.2100 / $20.8400 | Buy Now |
|
|
Analog Devices Inc | 4 channel 300ksps 16Bit sim-SA Min Qty: 1500 Package Multiple: 1500 | 0 |
|
$13.7400 / $31.8500 | Buy Now |
|
DISTI #
62163669
|
Verical | Data Acquisition System Single ADC 16bit 64-Pin LQFP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2214 | Americas - 606 |
|
$19.2100 / $20.8400 | Buy Now |
|
DISTI #
AD7605-4BSTZ-RL
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 1500 | 0 |
|
$19.5900 | Buy Now |
Part Details for AD7605-4BSTZ-RL
AD7605-4BSTZ-RL CAD Models
AD7605-4BSTZ-RL Part Data Attributes
|
|
AD7605-4BSTZ-RL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD7605-4BSTZ-RL
Analog Devices Inc
4-Channel DAS with 16-Bit, Bipolar Input, Simultaneous Sampling ADC
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LQFP-64 | |
| Pin Count | 64 | |
| Manufacturer Package Code | ST-64-2 | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2016-09-28 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 10 V | |
| Analog Input Voltage-Min | -10 V | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | S-XQFP-G64 | |
| Length | 12 mm | |
| Linearity Error-Max (EL) | 0.0031% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 4 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL, PARALLEL, WORD | |
| Package Body Material | UNSPECIFIED | |
| Package Code | LFQFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Sample Rate | 0.3 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 12 mm |
Alternate Parts for AD7605-4BSTZ-RL
This table gives cross-reference parts and alternative options found for AD7605-4BSTZ-RL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD7605-4BSTZ-RL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADS8584SIPM | Texas Instruments | $8.3586 | 16-Bit High-Speed 4-Channel Simultaneous-Sampling ADC With Bipolar Inputs on a Single Supply 64-LQFP -40 to 125 | AD7605-4BSTZ-RL vs ADS8584SIPM |
AD7605-4BSTZ-RL Frequently Asked Questions (FAQ)
-
A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
-
The AD7605-4BSTZ-RL has an internal calibration circuit that can be enabled by setting the CAL pin high. The device will then perform a self-calibration sequence. Additionally, the user can perform an external calibration by applying a known voltage to the input pins and reading the corresponding digital output code.
-
The maximum sampling rate of the AD7605-4BSTZ-RL is 200 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the input signal. The user should ensure that the input signal is settled before the next conversion is started.
-
The AD7605-4BSTZ-RL has internal overvoltage protection up to ±16.5 V on the analog input pins. However, it's recommended to use external protection circuitry, such as voltage-limiting resistors and diodes, to prevent damage from excessive voltage transients.
-
The typical power consumption of the AD7605-4BSTZ-RL is 35 mW at 3 V supply voltage. To minimize power consumption, the user can reduce the clock frequency, use the power-down mode, and optimize the system's power management scheme.
