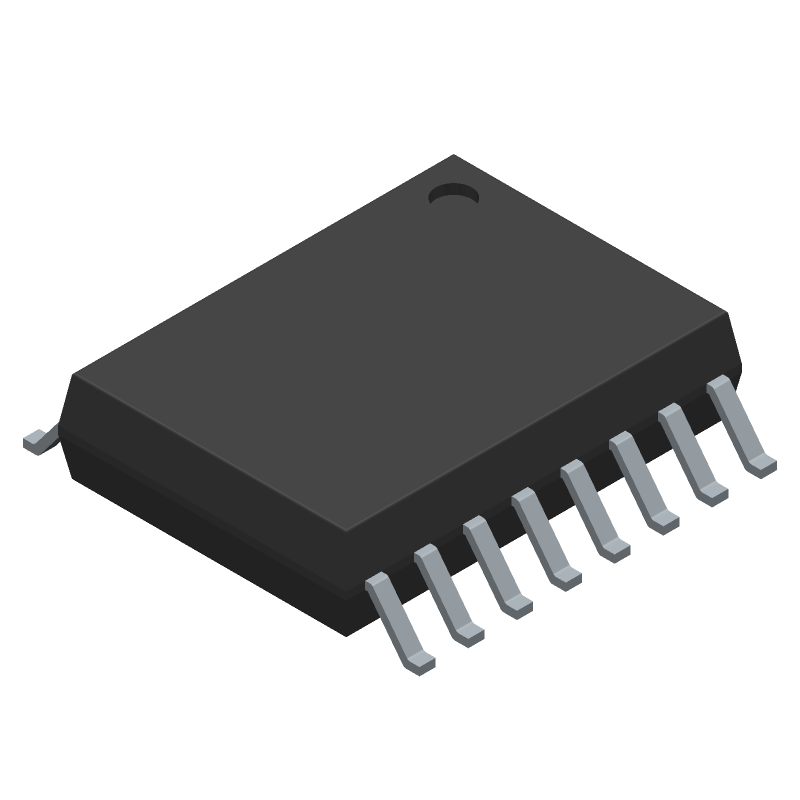

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD743JRZ-16-REEL7 by Analog Devices Inc
Results Overview of AD743JRZ-16-REEL7 by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Telecommunications
Electronic Manufacturing
Automotive
AD743JRZ-16-REEL7 Information
AD743JRZ-16-REEL7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD743JRZ-16-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85AK5929
|
Newark | Op-Amp, 4.5Mhz, 70Deg C, Wsoic-16 Rohs Compliant: Yes |Analog Devices AD743JRZ-16-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 390 |
|
$12.3600 / $20.8700 | Buy Now |
|
DISTI #
505-AD743JRZ-16-REEL7CT-ND
|
DigiKey | IC OPAMP JFET 1 CIRCUIT 16SOIC Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
370 In Stock |
|
$12.3625 / $21.2000 | Buy Now |
|
DISTI #
584-AD743JRZ-16-R7
|
Mouser Electronics | Precision Amplifiers IC, OP AMP, AD743JR IC RoHS: Compliant | 392 |
|
$12.3600 / $20.8700 | Buy Now |
|
|
Analog Devices Inc | IC, OP AMP, AD743JR IC Min Qty: 1 Package Multiple: 400 | 10474 |
|
$9.8900 / $21.2000 | Buy Now |
|
DISTI #
26633904
|
Verical | Op Amp Single Ultra Low Noise Amplifier ±18V 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 400 Package Multiple: 400 | Americas - 10400 |
|
$12.2325 | Buy Now |
Part Details for AD743JRZ-16-REEL7
AD743JRZ-16-REEL7 CAD Models
AD743JRZ-16-REEL7 Part Data Attributes
|
|
AD743JRZ-16-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD743JRZ-16-REEL7
Analog Devices Inc
Ultralow Noise BiFET Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RW-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.0006 µA | |
| Bias Current-Max (IIB) @25C | 0.0004 µA | |
| Common-mode Reject Ratio-Min | 78 dB | |
| Common-mode Reject Ratio-Nom | 95 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.0064 µA | |
| Input Offset Voltage-Max | 1500 µV | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Slew Rate-Nom | 2.8 V/us | |
| Supply Current-Max | 10 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 4500 | |
| Voltage Gain-Min | 800000 | |
| Width | 7.5 mm |
Alternate Parts for AD743JRZ-16-REEL7
This table gives cross-reference parts and alternative options found for AD743JRZ-16-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD743JRZ-16-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD743JRZ-16 | Analog Devices Inc | $12.9117 | Ultralow Noise BiFET Op Amp | AD743JRZ-16-REEL7 vs AD743JRZ-16 |
| AD743JR-16 | Analog Devices Inc | Check for Price | Ultralow Noise BiFET Op Amp | AD743JRZ-16-REEL7 vs AD743JR-16 |
| AD743JRZ-16-REEL | Analog Devices Inc | Check for Price | Ultralow Noise BiFET Op Amp | AD743JRZ-16-REEL7 vs AD743JRZ-16-REEL |
| AD743JR-16 | Rochester Electronics LLC | Check for Price | OP-AMP, 1500 uV OFFSET-MAX, 4.5 MHz BAND WIDTH, PDSO16, MS-013AA, SOIC-16 | AD743JRZ-16-REEL7 vs AD743JR-16 |
| AD743JR-16-REEL7 | Analog Devices Inc | Check for Price | Ultralow Noise BiFET Op Amp | AD743JRZ-16-REEL7 vs AD743JR-16-REEL7 |
| AD743JRZ-16 | Rochester Electronics LLC | Check for Price | OP-AMP, 1500 uV OFFSET-MAX, 4.5 MHz BAND WIDTH, PDSO16, SOIC-16 | AD743JRZ-16-REEL7 vs AD743JRZ-16 |
| AD743JR-16-REEL | Analog Devices Inc | Check for Price | Ultralow Noise BiFET Op Amp | AD743JRZ-16-REEL7 vs AD743JR-16-REEL |
| AD743KR-16 | Analog Devices Inc | Check for Price | IC OP-AMP, 1000 uV OFFSET-MAX, 4.5 MHz BAND WIDTH, PDSO16, SOIC-16, Operational Amplifier | AD743JRZ-16-REEL7 vs AD743KR-16 |
| AD743KR-16-REEL | Analog Devices Inc | Check for Price | IC OP-AMP, 1000 uV OFFSET-MAX, 4.5 MHz BAND WIDTH, PDSO16, SOIC-16, Operational Amplifier | AD743JRZ-16-REEL7 vs AD743KR-16-REEL |
| AD743KR-16-REEL7 | Analog Devices Inc | Check for Price | IC OP-AMP, 1000 uV OFFSET-MAX, 4.5 MHz BAND WIDTH, PDSO16, SOIC-16, Operational Amplifier | AD743JRZ-16-REEL7 vs AD743KR-16-REEL7 |
AD743JRZ-16-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD743JRZ-16-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
Proper decoupling of the AD743JRZ-16-REEL7 involves using a combination of ceramic and electrolytic capacitors. A 10uF ceramic capacitor and a 10uF electrolytic capacitor in parallel, placed close to the device, are recommended.
-
The maximum power dissipation of the AD743JRZ-16-REEL7 is 500mW. However, this can be affected by the operating temperature and the thermal resistance of the package.
-
The AD743JRZ-16-REEL7 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to consult the datasheet and application notes for guidance on high-temperature operation.
-
Common issues with the AD743JRZ-16-REEL7 include noise, oscillations, and incorrect output voltage. Troubleshooting involves checking the PCB layout, decoupling, and power supply, as well as verifying the device's configuration and input signals.
