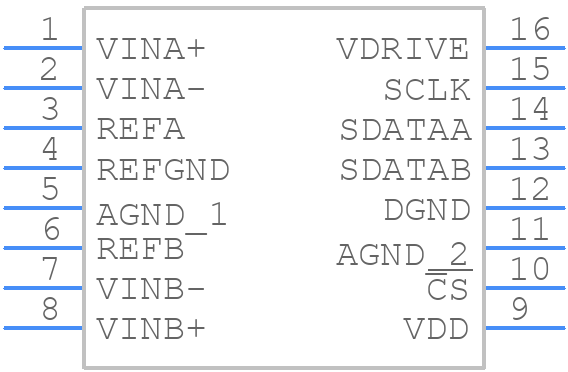

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD7357BRUZ-500RL7 by Analog Devices Inc
Results Overview of AD7357BRUZ-500RL7 by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AD7357BRUZ-500RL7 Information
AD7357BRUZ-500RL7 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD7357BRUZ-500RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6847
|
Newark | Adc, 14Bit, 4.2Msps, Tssop-16, Resolution (Bits):14Bit, Sampling Rate:4.2Msps, Input Channel Type:Differential, Single Ended, Data Interface:Microwire, Qspi, Spi, Supply Voltage Type:Single, Supply Voltage Min:2.25V Rohs Compliant: Yes |Analog Devices AD7357BRUZ-500RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 335 |
|
$20.1100 / $29.9200 | Buy Now |
|
DISTI #
AD7357BRUZ-500RL7CT-ND
|
DigiKey | IC ADC 14BIT SAR 16TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
746 In Stock |
|
$19.2625 / $29.9200 | Buy Now |
|
DISTI #
584-AD7357BRUZ-500R7
|
Mouser Electronics | Analog to Digital Converters - ADC 14-Bit Dual Diff Simult 5 MSPS ADC I.C. RoHS: Compliant | 1078 |
|
$19.2600 / $29.9200 | Buy Now |
|
DISTI #
V72:2272_06211105
|
Arrow Electronics | 2-Channel Dual ADC SAR 4.2Msps 14-bit Serial 16-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2405 Container: Cut Strips | Americas - 371 |
|
$19.7600 / $29.6900 | Buy Now |
|
|
Analog Devices Inc | 14-Bit Dual Diff Simult 5 MSPS Package Multiple: 500 | 150 |
|
$14.3000 / $29.9200 | Buy Now |
|
DISTI #
AD7357BRUZ500R7
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 500 | 0 |
|
$20.1600 / $20.4100 | Buy Now |
|
|
Velocity Electronics | Our Stock | 51 |
|
RFQ |
Part Details for AD7357BRUZ-500RL7
AD7357BRUZ-500RL7 CAD Models
AD7357BRUZ-500RL7 Part Data Attributes
|
|
AD7357BRUZ-500RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD7357BRUZ-500RL7
Analog Devices Inc
Differential Input, Dual, Simultaneous Sampling, 4.25 MSPS, 14-Bit, SAR ADC
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | ROHS COMPLIANT, MO-153AB, TSSOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RU-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 1.6 V | |
| Analog Input Voltage-Min | 0.5 V | |
| Conversion Time-Max | 0.238 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Linearity Error-Max (EL) | 0.0183% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 2 | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 4.2 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
AD7357BRUZ-500RL7 Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the clock signal. This ensures that the internal bias voltage is established before the clock is applied.
-
The analog input range can be optimized by selecting the appropriate gain setting and adjusting the reference voltage (VREF) to match the input signal amplitude. The gain setting can be adjusted through the SPI interface.
-
The maximum sampling rate of the AD7357 is 500 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, analog input bandwidth, and other factors.
-
The AD7357 has internal overvoltage protection on the analog input pins. However, it's still recommended to use external protection circuitry, such as voltage-limiting resistors and diodes, to prevent damage from excessive voltage levels.
-
It's recommended to keep analog and digital signals separate, using separate ground planes and routing the analog signals away from the digital signals. Additionally, use short, direct traces for the analog input signals and avoid crossing digital signals over the analog signals.
