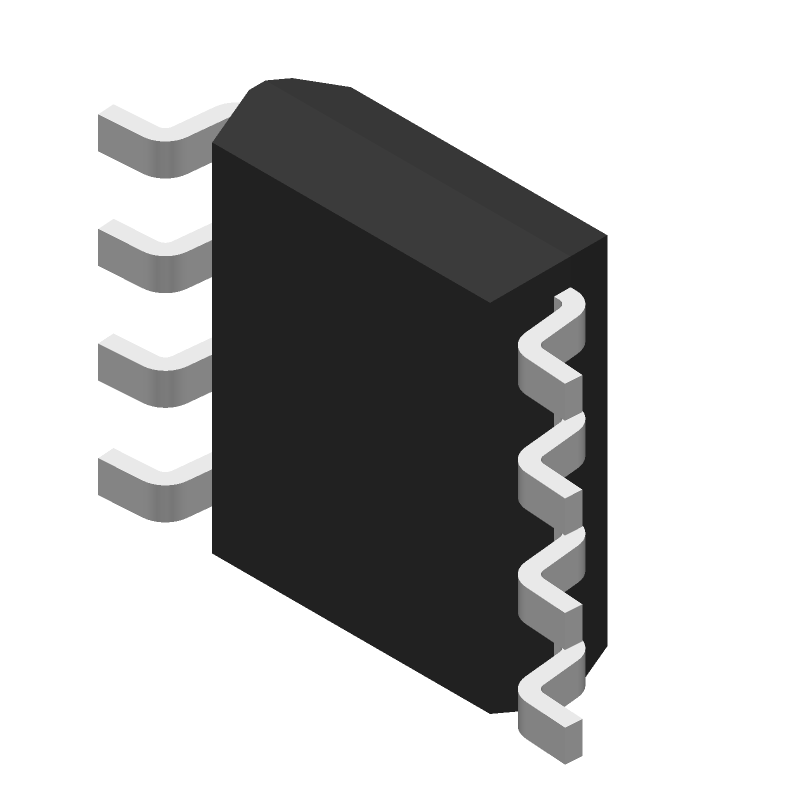

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD706AR by Analog Devices Inc
Results Overview of AD706AR by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Electronic Manufacturing
Automotive
AD706AR Information
AD706AR by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD706AR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | IC,OP-AMP,DUAL,BIPOLAR,SOP,8PIN,PLASTIC | 8 |
|
$6.6000 / $9.0000 | Buy Now |
|
|
NexGen Digital | 6 |
|
RFQ | ||
|
|
Vyrian | Peripheral ICs | 794 |
|
RFQ |
Part Details for AD706AR
AD706AR CAD Models
AD706AR Part Data Attributes
|
|
AD706AR
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD706AR
Analog Devices Inc
Dual Picoampere Input Current Bipolar Op Amp
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.0004 µA | |
| Bias Current-Max (IIB) @25C | 0.00025 µA | |
| Common-mode Reject Ratio-Min | 108 dB | |
| Common-mode Reject Ratio-Nom | 128 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 150 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e0 | |
| Length | 4.9 mm | |
| Low-Bias | YES | |
| Low-Offset | YES | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 240 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 0.15 V/us | |
| Supply Current-Max | 1.4 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 800 | |
| Voltage Gain-Min | 150000 | |
| Width | 3.9 mm |
Alternate Parts for AD706AR
This table gives cross-reference parts and alternative options found for AD706AR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD706AR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD706ARZ-REEL | Rochester Electronics LLC | Check for Price | DUAL OP-AMP, 150 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, PDSO8, ROHS COMPLIANT, PLASTIC, MS-012AA, SOIC-8 | AD706AR vs AD706ARZ-REEL |
AD706AR Frequently Asked Questions (FAQ)
-
The maximum power supply voltage that can be applied to the AD706AR is ±18V. Exceeding this voltage can cause damage to the device.
-
To ensure stability in a unity-gain configuration, a capacitor (typically 10nF to 100nF) should be connected between the output and the inverting input. This helps to compensate for the op-amp's internal capacitance and prevents oscillations.
-
To minimize noise and hum, it is recommended to use a star-grounding technique, where the grounds of the power supplies, analog circuits, and digital circuits are connected at a single point. Additionally, keep the AD706AR away from high-current carrying wires and use a ground plane to reduce electromagnetic interference.
-
Yes, the AD706AR can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC-2V to VCC+0.5V. Additionally, the output voltage swing will be reduced, and the op-amp may not be able to drive the output to the rail.
-
The choice of resistor values depends on the desired gain and bandwidth. A good starting point is to choose R1 = R2 = 1kΩ and Rf = 2kΩ for a gain of 2. Then, adjust the values based on the specific application requirements and desired frequency response.
