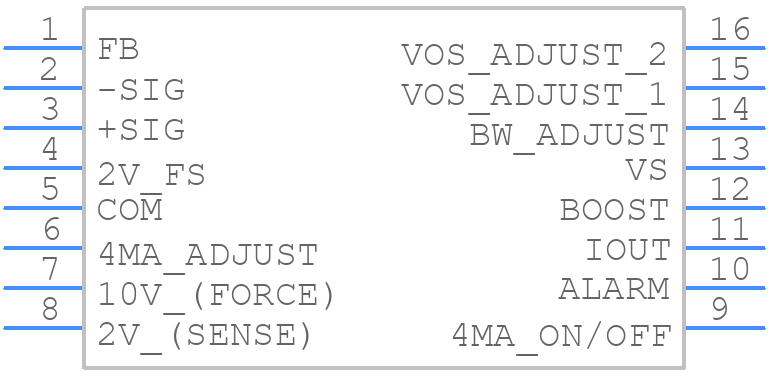

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD694ARZ by Analog Devices Inc
Results Overview of AD694ARZ by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD694ARZ Information
AD694ARZ by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for AD694ARZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK9352
|
Newark | Current Transmitter, 4-20/0-20 Ma, Wsoic, Ic Function:Current Loop Transmitters, Supply Voltage Min:4.5V, Supply Voltage Max:36V, Ic Package Type:Wsoic, No. Of Pins:16Pins, Operating Temperature Min:-40°C, Product Range:- Rohs Compliant: Yes |Analog Devices AD694ARZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$13.1700 / $20.2700 | Buy Now |
|
DISTI #
505-AD694ARZ-ND
|
DigiKey | IC TRANSMITTER 4-20MA 16-SOIC Min Qty: 1 Lead time: 20 Weeks Container: Tube | Temporarily Out of Stock |
|
$13.0000 / $22.0400 | Buy Now |
|
DISTI #
584-AD694ARZ
|
Mouser Electronics | Instrumentation Amplifiers IC LOOP TRANSMITER IC RoHS: Compliant | 0 |
|
$13.3900 / $21.8500 | Order Now |
|
|
Bristol Electronics | 3 |
|
RFQ | ||
|
DISTI #
AD694ARZ
|
TME | IC: U/I, I/U converter, current-loop transmitter, 20mA, SO16-W Min Qty: 1 | 0 |
|
$15.7000 / $19.8000 | RFQ |
|
|
ComSIT USA | 4-20 MILLI AMP TRANSMITTER Analog Circuit, 1 Func, BIPolar, PDSO16 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
AD694ARZ
|
Richardson RFPD | AMPLIFIER - SPECIAL PURPOSE RoHS: Compliant Min Qty: 47 | 0 |
|
$13.6000 / $14.5400 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 90 |
|
RFQ | |
|
|
Win Source Electronics | IC TRANSMITTER 4-20MA 16-SOIC | 1500 |
|
$21.6667 / $32.5000 | Buy Now |
Part Details for AD694ARZ
AD694ARZ CAD Models
AD694ARZ Part Data Attributes
|
|
AD694ARZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD694ARZ
Analog Devices Inc
4-20mA Monolithic Current Transmitter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Manufacturer Package Code | RW-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max (Vsup) | 36 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 24 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
Alternate Parts for AD694ARZ
This table gives cross-reference parts and alternative options found for AD694ARZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD694ARZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD694AR-REEL | Analog Devices Inc | Check for Price | IC SPECIALTY ANALOG CIRCUIT, PDSO16, PLASTIC, MS-013AA, SOIC-16, Analog IC:Other | AD694ARZ vs AD694AR-REEL |
| AD694BR | Analog Devices Inc | Check for Price | IC SPECIALTY ANALOG CIRCUIT, PDSO16, PLASTIC, MS-013AA, SOIC-16, Analog IC:Other | AD694ARZ vs AD694BR |
| AD694BRZ | Analog Devices Inc | $19.8204 | 4-20mA Monolithic Current Transmitter | AD694ARZ vs AD694BRZ |
AD694ARZ Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD694ARZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure proper biasing, connect the VCC pin to a stable voltage source (e.g., 5V or 15V), and decouple it with a 0.1uF capacitor to ground. The VEE pin should be connected to a negative voltage source (e.g., -5V or -15V) or ground, depending on the application. The ISET pin should be connected to a resistor (e.g., 1kΩ) to set the output current.
-
The maximum output current of the AD694ARZ is 20mA. However, it's recommended to limit the output current to 10mA to ensure reliable operation and minimize power dissipation.
-
To protect the AD694ARZ from overvoltage and ESD, use voltage clamps (e.g., TVS diodes) on the input and output pins. Additionally, use ESD protection devices (e.g., ESD arrays) on the input and output lines. Follow proper PCB design and handling practices to minimize ESD exposure.
-
The recommended operating temperature range for the AD694ARZ is -40°C to +85°C. However, the device can operate up to +125°C with reduced performance and reliability.
