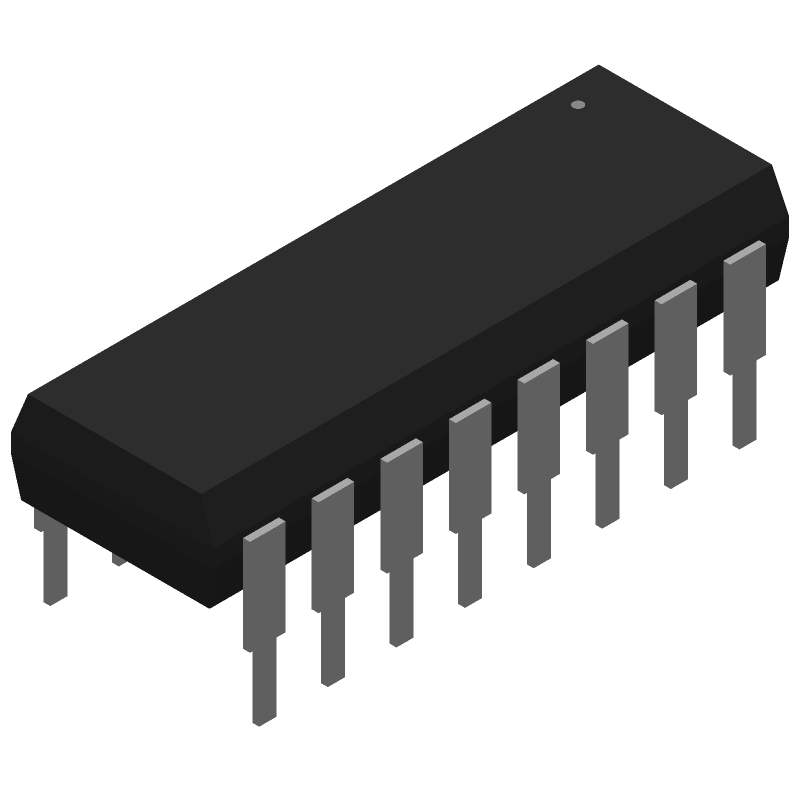

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD694AQ by Analog Devices Inc
Results Overview of AD694AQ by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD694AQ Information
AD694AQ by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for AD694AQ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK9351
|
Newark | Current Transmitter, 4-20/0-20 Ma, Dip, Ic Function:Current Loop Transmitters, Supply Voltage Min:4.5V, Supply Voltage Max:36V, Ic Package Type:Dip, No. Of Pins:16Pins, Operating Temperature Min:-40°C, Operating Temperature Max:85°C Rohs Compliant: No |Analog Devices AD694AQ RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 16 |
|
$33.3900 / $42.9800 | Buy Now |
|
DISTI #
AD694AQ-ND
|
DigiKey | IC SGNL COND 4-20MA TX 16-CDIP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
140 In Stock |
|
$31.4752 / $44.1200 | Buy Now |
|
DISTI #
584-AD694AQ
|
Mouser Electronics | Instrumentation Amplifiers IC 4-20MA CURRENT TRANS RoHS: Not Compliant | 101 |
|
$31.4700 / $42.9800 | Buy Now |
|
DISTI #
V99:2348_06210859
|
Arrow Electronics | Sensor and Detector Interface 36V 23mA 16-Pin CDIP Tube RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2036 | Americas - 1 |
|
$24.9100 / $29.3500 | Buy Now |
|
DISTI #
60893758
|
Verical | Sensor and Detector Interface 36V 23mA 16-Pin CDIP Tube RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2036 | Americas - 1 |
|
$37.5975 / $44.0318 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 42526 |
|
RFQ |
Part Details for AD694AQ
AD694AQ CAD Models
AD694AQ Part Data Attributes
|
|
AD694AQ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD694AQ
Analog Devices Inc
4-20mA Monolithic Current Transmitter
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | DIP | |
| Pin Count | 16 | |
| Manufacturer Package Code | Q-16 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-GDIP-T16 | |
| JESD-609 Code | e0 | |
| Length | 19.05 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | CERAMIC, GLASS-SEALED | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 36 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 24 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for AD694AQ
This table gives cross-reference parts and alternative options found for AD694AQ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD694AQ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD694JN | Analog Devices Inc | Check for Price | IC SPECIALTY ANALOG CIRCUIT, PDIP16, PLASTIC, DIP-16, Analog IC:Other | AD694AQ vs AD694JN |
AD694AQ Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by VEE. This ensures that the internal biasing circuitry is properly established before the amplifier is enabled.
-
To minimize noise and distortion, keep the input and output traces as short as possible, use a ground plane, and avoid running signal traces near the power supply lines. Also, use a low-ESR capacitor for decoupling and place it as close to the device as possible.
-
The AD694AQ can drive a maximum capacitive load of 100 pF. Exceeding this limit may cause instability or oscillation.
-
To compensate for the input bias current, use a resistor in series with the input signal to balance the input currents. The value of the resistor should be equal to the parallel combination of the source impedance and the input impedance of the amplifier.
-
The AD694AQ's performance is affected by temperature, with changes in offset voltage, gain, and bandwidth. The device is specified to operate over a temperature range of -40°C to +125°C, but the user should consult the datasheet for specific temperature-related specifications.
