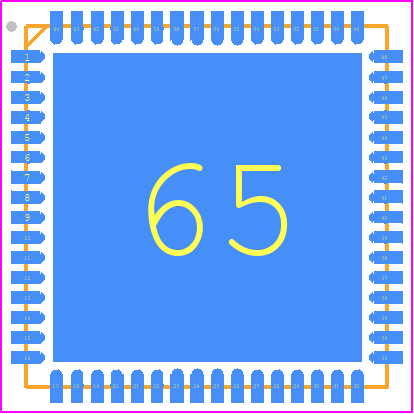

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD6674BCPZ-750 by Analog Devices Inc
Results Overview of AD6674BCPZ-750 by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Electronic Manufacturing
Automotive
AD6674BCPZ-750 Information
AD6674BCPZ-750 by Analog Devices Inc is an Other Telecom IC.
Other Telecom ICs are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for AD6674BCPZ-750
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-AD6674BCPZ-750-ND
|
DigiKey | IC RECEIVER DUAL BAND LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Bulk MARKETPLACE PRODUCT |
985 In Stock |
|
$634.7200 | Buy Now |
|
DISTI #
AD6674BCPZ-750-ND
|
DigiKey | IC RECEIVER DUAL BAND LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Tray | Temporarily Out of Stock |
|
$673.5740 / $754.8400 | Buy Now |
|
DISTI #
584-AD6674BCPZ-750
|
Mouser Electronics | RF Receiver 100/200MHz Dual Band Div RoHS: Compliant | 0 |
|
$749.6300 | Order Now |
|
|
Analog Devices Inc | 100/200MHz Dual Band Div Package Multiple: 1 | 0 |
|
$474.7600 / $754.8400 | Buy Now |
|
|
Rochester Electronics | 385 MHz BW IF Diversity Receiver RoHS: Compliant Status: Active Min Qty: 1 | 985 |
|
$538.4200 / $611.8400 | Buy Now |
Part Details for AD6674BCPZ-750
AD6674BCPZ-750 CAD Models
AD6674BCPZ-750 Part Data Attributes
|
|
AD6674BCPZ-750
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD6674BCPZ-750
Analog Devices Inc
385 MHz BW IF Diversity Receiver
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-64 | |
| Pin Count | 64 | |
| Manufacturer Package Code | CP-64-15 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| JESD-30 Code | S-XQCC-N64 | |
| JESD-609 Code | e3 | |
| Length | 9 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Nom | 1.25 V | |
| Surface Mount | YES | |
| Telecom IC Type | TELECOM CIRCUIT | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 9 mm |
AD6674BCPZ-750 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-impedance path for the analog supply and keep the digital supply traces away from the analog section.
-
Use a low-jitter clock source (<100 ps) and a 50-ohm transmission line to drive the clock input. Ensure the clock signal is clean and free of noise. Use a clock buffer or a clock conditioner if necessary.
-
Power up the analog supply (AVDD) first, followed by the digital supply (DVDD). Ensure the analog supply is stable before applying the digital supply. Use a power-up sequence controller or a power management IC if necessary.
-
Use a FIFO or a buffer to handle the high-speed digital output data. Ensure the receiving device can handle the data rate and format. Use a deserializer or a data converter if necessary.
-
Perform a full-scale calibration after power-up. Use the internal calibration mode or an external calibration signal. Follow the calibration procedure outlined in the datasheet or application notes.
