AD636JD/+ by:

IC RMS TO DC CONVERTER, CDIP14, HERMETIC SEALED, SIDE BRAZED, CERAMIC, TO-116, DIP-14, Analog Special Function Converter

Part Details for AD636JD/+ by Analog Devices Inc

Results Overview of AD636JD/+ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

AD636JD/+ Information

AD636JD/+ by Analog Devices Inc is an Analog Special Function Converter.
Analog Special Function Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for AD636JD/+

Part # Distributor Description Stock Price Buy
Vyrian Peripheral ICs 772
RFQ

Part Details for AD636JD/+

AD636JD/+ CAD Models

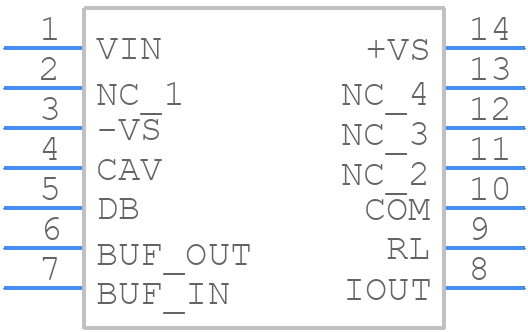

  • Part Symbol

    Part Symbol

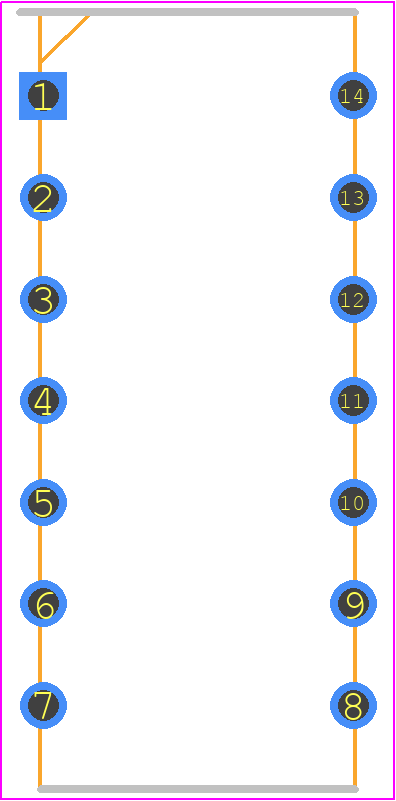

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AD636JD/+ Part Data Attributes

Parametric Data
AD636JD/+ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
AD636JD/+ Analog Devices Inc IC RMS TO DC CONVERTER, CDIP14, HERMETIC SEALED, SIDE BRAZED, CERAMIC, TO-116, DIP-14, Analog Special Function Converter
Rohs Code No
Part Life Cycle Code Obsolete
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code DIP
Package Description HERMETIC SEALED, SIDE BRAZED, CERAMIC, TO-116, DIP-14
Pin Count 14
Reach Compliance Code not_compliant
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Converter Type RMS TO DC CONVERTER
JESD-30 Code R-CDIP-T14
JESD-609 Code e0
Length 19.43 mm
Negative Supply Voltage-Max -16.5 V
Negative Supply Voltage-Min -2.5 V
Negative Supply Voltage-Nom -5 V
Number of Functions 1
Number of Terminals 14
Operating Frequency-Max 0.1 MHz
Operating Temperature-Max 70 °C
Operating Temperature-Min
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Positive Input Voltage-Max 0.2 V
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Current-Max 1 mA
Supply Voltage-Max 16.5 V
Supply Voltage-Min 2 V
Supply Voltage-Nom 3 V
Surface Mount NO
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Total Error-Max 1%
Width 7.62 mm

Alternate Parts for AD636JD/+

This table gives cross-reference parts and alternative options found for AD636JD/+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD636JD/+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MX636JN Maxim Integrated Products Check for Price RMS to DC Converter, 1 Func, 0.1MHz, Bipolar, PDIP14, PLASTIC, DIP-14 AD636JD/+ vs MX636JN
MX636JN+ Maxim Integrated Products Check for Price RMS to DC Converter, 1 Func, 0.1MHz, Bipolar, PDIP14, PLASTIC, DIP-14 AD636JD/+ vs MX636JN+
MX636JQ Maxim Integrated Products Check for Price RMS to DC Converter, 1 Func, 0.1MHz, Bipolar, CDIP14, CERAMIC, DIP-14 AD636JD/+ vs MX636JQ
Part Number Manufacturer Composite Price Description Compare
AD636JD Analog Devices Inc Check for Price IC RMS TO DC CONVERTER, 0.1 MHz, CDIP14, SIDE BRAZED, CERAMIC, TO-116, DIP-14, Analog Special Function Converter AD636JD/+ vs AD636JD
AD7741BR Analog Devices Inc Check for Price VOLTAGE-FREQUENCY CONVERTER, 6.144MHz, PDSO8, SOIC-8 AD636JD/+ vs AD7741BR
LM131AH Texas Instruments Check for Price VOLTAGE-FREQUENCY CONVERTER, 0.1MHz, MBCY8 AD636JD/+ vs LM131AH
LM231AH National Semiconductor Corporation Check for Price IC VOLTAGE-FREQUENCY CONVERTER, 0.1 MHz, MBCY8, Analog Special Function Converter AD636JD/+ vs LM231AH
AD537JD Analog Devices Inc Check for Price Integrated Circuit Voltage-to-Frequency Converter AD636JD/+ vs AD537JD
AD737JN Analog Devices Inc Check for Price IC RMS TO DC CONVERTER, 0.005 MHz, PDIP8, PLASTIC, MS-001, DIP-8, Analog Special Function Converter AD636JD/+ vs AD737JN
AD7740YRT-REEL7 Analog Devices Inc Check for Price IC VOLTAGE-FREQUENCY CONVERTER, 1 MHz, PDSO8, SOT-23, 8 PIN, Analog Special Function Converter AD636JD/+ vs AD7740YRT-REEL7
AD737KR-REEL7 Analog Devices Inc Check for Price Low Cost, Low Power, True RMS-to-DC Converter AD636JD/+ vs AD737KR-REEL7
LTC1968CMS8#TR Analog Devices Inc Check for Price RMS to DC Converter, 1 Func, PDSO8 AD636JD/+ vs LTC1968CMS8#TR
VFC110BG1 Texas Instruments Check for Price High Frequency Voltage-to-Frequency Converter 14-CDIP SB AD636JD/+ vs VFC110BG1
