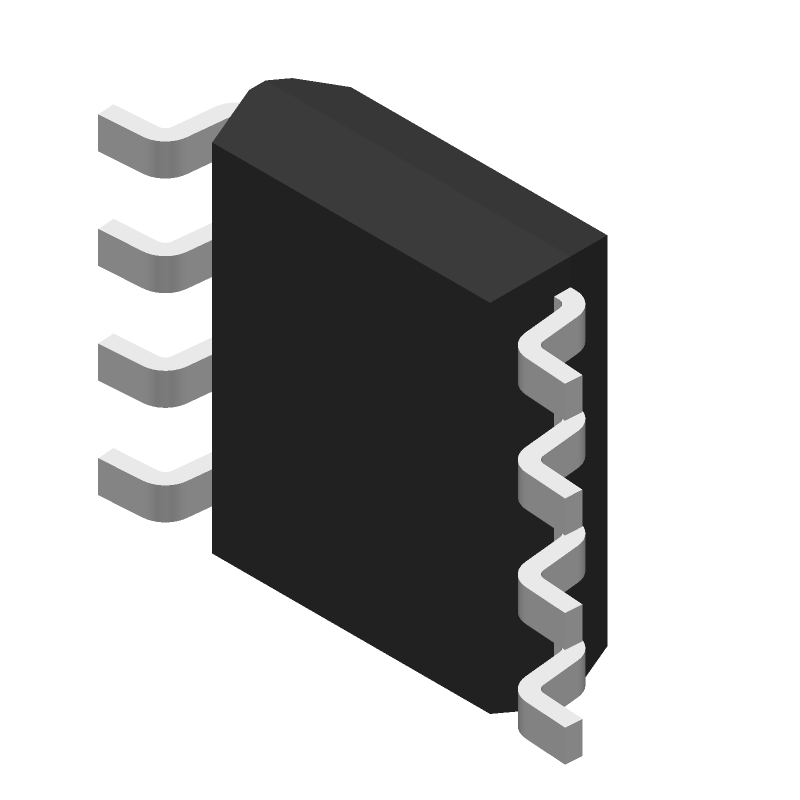

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD623ARZ-R7 by Analog Devices Inc
Results Overview of AD623ARZ-R7 by Analog Devices Inc
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Medical Imaging
Automotive
AD623ARZ-R7 Information
AD623ARZ-R7 by Analog Devices Inc is an Instrumentation Amplifier.
Instrumentation Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD623ARZ-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6735
|
Newark | Instrumentation Amp, 800Khz, 110Db, Soic, No. Of Channels:1Channels, Input Offset Voltage:25Μv, Gain Bandwidth Product:800Khz, Supply Voltage Range:2.7V To 12V, ± 2.5V To ± 6V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Cmrr:110Db Rohs Compliant: Yes |Analog Devices AD623ARZ-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 429 |
|
$3.3200 / $6.6000 | Buy Now |
|
DISTI #
AD623ARZ-R7CT-ND
|
DigiKey | IC INST AMP 1 CIRCUIT 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2091 In Stock |
|
$3.1750 / $7.6300 | Buy Now |
|
DISTI #
584-AD623ARZ-R7
|
Mouser Electronics | Instrumentation Amplifiers SOIC SINGLE SUPPLY RAIL-RAIL L/C IN AMP RoHS: Compliant | 17657 |
|
$3.1700 / $6.0700 | Buy Now |
|
DISTI #
A01:0375_00104522
|
Arrow Electronics | INST Amp Single R-R O/P ±6V/12V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks Date Code: 2509 | Asia - 40000 |
|
$3.4090 | Buy Now |
|
DISTI #
E54:1762_00104522
|
Arrow Electronics | INST Amp Single R-R O/P ±6V/12V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks Date Code: 2449 | Europe - 30000 |
|
$3.4090 | Buy Now |
|
DISTI #
V72:2272_06210951
|
Arrow Electronics | INST Amp Single R-R O/P ±6V/12V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2440 Container: Cut Strips | Americas - 72 |
|
$3.4090 / $6.0040 | Buy Now |
|
|
Analog Devices Inc | SOIC SINGLE SUPPLY RAIL-RAIL L Min Qty: 1 Package Multiple: 1000 | 419 |
|
$3.1750 / $7.6300 | Buy Now |
|
DISTI #
87791263
|
Verical | INST Amp Single R-R O/P ±6V/12V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 40000 |
|
$3.5589 | Buy Now |
|
DISTI #
87838465
|
Verical | INST Amp Single R-R O/P ±6V/12V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2449 | Americas - 30000 |
|
$6.8625 | Buy Now |
|
DISTI #
86228775
|
Verical | INST Amp Single R-R O/P ±6V/12V 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2440 | Americas - 72 |
|
$3.4090 / $6.0040 | Buy Now |
Part Details for AD623ARZ-R7
AD623ARZ-R7 CAD Models
AD623ARZ-R7 Part Data Attributes
|
|
AD623ARZ-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD623ARZ-R7
Analog Devices Inc
Single and Dual-Supply, Rail-to-Rail, Low Cost Instrumentation Amplifier
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | INSTRUMENTATION AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.0275 µA | |
| Bandwidth (3dB)-Nom | 0.8 MHz | |
| Common-mode Reject Ratio-Min | 70 dB | |
| Input Offset Current-Max (IIO) | 0.0025 µA | |
| Input Offset Voltage-Max | 350 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -6 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 0.3 V/us | |
| Supply Current-Max | 0.625 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Voltage Gain-Max | 1000 | |
| Voltage Gain-Min | 1 | |
| Width | 3.9 mm |
Alternate Parts for AD623ARZ-R7
This table gives cross-reference parts and alternative options found for AD623ARZ-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD623ARZ-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD623AR | Analog Devices Inc | Check for Price | Single and Dual-Supply, Rail-to-Rail, Low Cost Instrumentation Amplifier | AD623ARZ-R7 vs AD623AR |
AD623ARZ-R7 Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the AD623ARZ-R7 is ±15V, but it's recommended to keep the input voltage within the supply voltage range to ensure proper operation.
-
To ensure proper biasing for single-supply operation, connect the REF pin to a voltage that is halfway between the supply voltage and ground. This sets the output voltage to be centered around the midpoint of the supply voltage.
-
The gain pin (GAIN) sets the gain of the amplifier. Connecting the GAIN pin to the inverting input (IN-) sets the gain to 1, while connecting it to the non-inverting input (IN+) sets the gain to 2. Leaving the GAIN pin open sets the gain to 5.
-
To reduce noise and EMI, use proper PCB layout techniques, such as separating analog and digital grounds, using a ground plane, and minimizing trace lengths. Additionally, use shielding, filtering, and decoupling capacitors to reduce noise and EMI.
-
The recommended power-up sequence for the AD623ARZ-R7 is to apply the power supply voltage (VCC) before applying the input signal. This ensures that the internal circuitry is properly biased before the input signal is applied.
