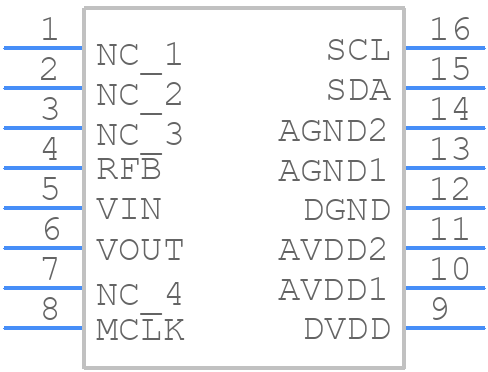

Part Symbol
-

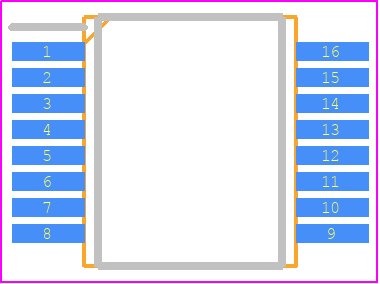

Footprint
-

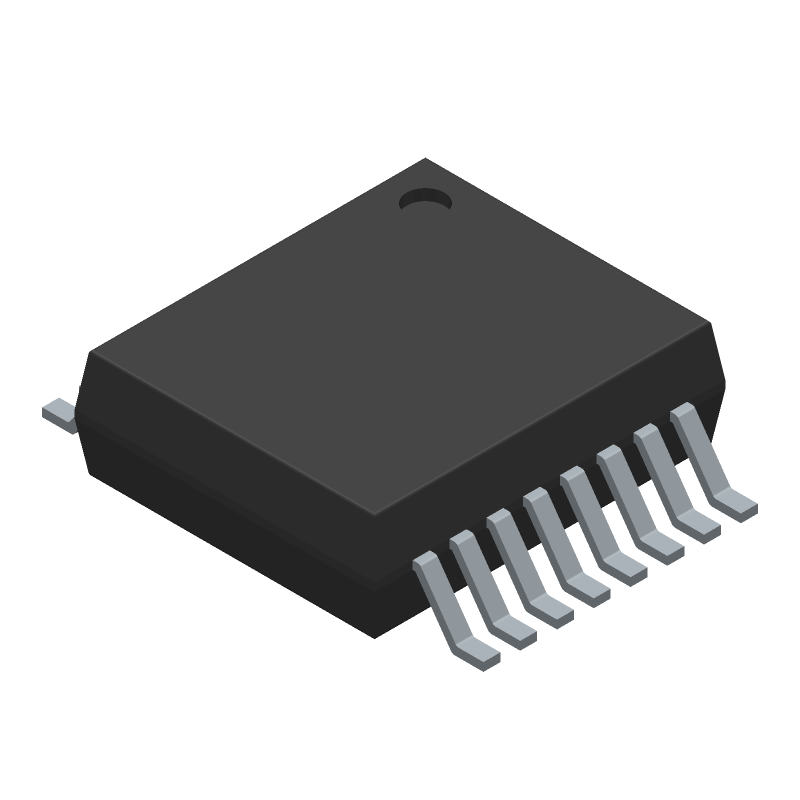

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5933YRSZ-REEL7 by Analog Devices Inc
Results Overview of AD5933YRSZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Healthcare
Electronic Manufacturing
Medical Imaging
AD5933YRSZ-REEL7 Information
AD5933YRSZ-REEL7 by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for AD5933YRSZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6710
|
Newark | Impedance Converter, 12Bit, 200Khz, Ssop, Ic Function:12Bit Impedance Converter, Network Analyzer, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, Ic Package Type:Ssop, No. Of Pins:16Pins, Operating Temperature Min:-40°C Rohs Compliant: Yes |Analog Devices AD5933YRSZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 524 |
|
$15.6300 | Buy Now |
|
DISTI #
AD5933YRSZ-REEL7CT-ND
|
DigiKey | IC DDS 16.776MHZ 12BIT 16SSOP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1234 In Stock |
|
$12.4500 / $21.3200 | Buy Now |
|
DISTI #
584-AD5933YRSZ-R7
|
Mouser Electronics | Data Acquisition ADCs/DACs - Specialized 12bit 1 MSPS, Impedance Converter RoHS: Compliant | 5235 |
|
$12.7200 / $21.0100 | Buy Now |
|
DISTI #
V72:2272_06210728
|
Arrow Electronics | Direct Digital Synthesizer 16.776MHz 1-DAC 12bit Serial (I2C) 16-Pin SSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2247 Container: Cut Strips | Americas - 472 |
|
$12.7700 / $20.8200 | Buy Now |
|
|
Analog Devices Inc | 12bit 1 MSPS, Impedance Conver Min Qty: 500 Package Multiple: 500 | 6500 |
|
$9.9600 / $21.3200 | Buy Now |
|
DISTI #
82399011
|
Verical | Direct Digital Synthesizer 16.776MHz 1-DAC 12bit Serial (I2C) 16-Pin SSOP T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 6000 |
|
$12.3191 | Buy Now |
|
DISTI #
66324786
|
Verical | Direct Digital Synthesizer 16.776MHz 1-DAC 12bit Serial (I2C) 16-Pin SSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2247 | Americas - 472 |
|
$12.7700 / $20.8200 | Buy Now |
|
|
LCSC | 12Bit 2.7V5.5V 1MHz I2C SSOP-16-208mil Analog to Digital Converters (ADC) ROHS | 85 |
|
$8.7191 / $14.3575 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 2765 |
|
RFQ | |
|
|
Win Source Electronics | NETWORK ANALYZER 12B 1MSP 16SSOP | 2280 |
|
$10.2026 / $13.1782 | Buy Now |
Part Details for AD5933YRSZ-REEL7
AD5933YRSZ-REEL7 CAD Models
AD5933YRSZ-REEL7 Part Data Attributes
|
|
AD5933YRSZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5933YRSZ-REEL7
Analog Devices Inc
1 MSPS, 12-Bit Impedance Converter, Network Analyzer
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SSOP | |
| Package Description | SSOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RS-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 6.2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 5.3 mm |
AD5933YRSZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD5933 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
Optimizing the AD5933's performance involves selecting the right gain setting, adjusting the clock frequency, and optimizing the analog front-end circuitry. Consult the datasheet and application notes for guidance, and consider consulting with an Analog Devices engineer for specific advice.
-
The AD5933 can operate up to 250 kHz, but the maximum frequency range depends on the specific application and the impedance of the sensor or transducer being used. Consult the datasheet and application notes for more information.
-
The AD5933 can be interfaced with a microcontroller or FPGA using a SPI or I2C interface. Consult the datasheet and application notes for specific guidance on pin connections, clock frequencies, and data transfer protocols.
-
The AD5933 has a typical power consumption of 35 mW at 3.3 V, but this can vary depending on the specific application and operating conditions. Consult the datasheet for more information on power consumption and power-down modes.
