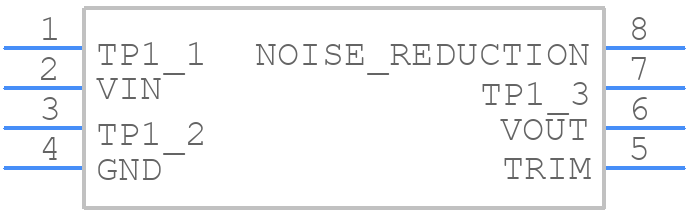

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD586JRZ by Analog Devices Inc
Results Overview of AD586JRZ by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Industrial Automation
Transportation and Logistics
Agriculture Technology
Telecommunications
Automotive
Education and Research
Computing and Data Storage
Aerospace and Defense
Healthcare
Electronic Manufacturing
Renewable Energy
Robotics and Drones
AD586JRZ Information
AD586JRZ by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AD586JRZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6697
|
Newark | Volt Ref, Soic-8, 0 To 70Deg C, Voltage Reference Type:Series - Fixed, Product Range:Ad586 Series, Reference Voltage Min:4.98V, Reference Voltage Max:5.02V, Initial Accuracy:20Mv, Temperature Coefficient:± 25Ppm/°C, No. Of Pins:8Pinsrohs Compliant: Yes |Analog Devices AD586JRZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 72 |
|
$6.5200 / $10.3700 | Buy Now |
|
DISTI #
AD586JRZ-ND
|
DigiKey | IC VREF SERIES 0.4% 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
258 In Stock |
|
$5.7375 / $11.8300 | Buy Now |
|
DISTI #
584-AD586JRZ
|
Mouser Electronics | Voltage References IC - HI PREC. 5V REF. IC RoHS: Compliant | 972 |
|
$5.9700 / $10.3700 | Buy Now |
|
DISTI #
E54:1762_00105070
|
Arrow Electronics | V-Ref Precision 5V 10mA 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2413 | Europe - 544 |
|
$5.5540 / $11.4030 | Buy Now |
|
|
Analog Devices Inc | IC - HI PREC. 5V REF. IC Package Multiple: 98 | 836 |
|
$4.2300 / $11.8300 | Buy Now |
|
DISTI #
26077968
|
Verical | V-Ref Precision 5V 10mA 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 98 Package Multiple: 98 | Americas - 784 |
|
$5.6772 | Buy Now |
|
DISTI #
AD586JRZ
|
TME | IC: voltage reference source, 5V, ±0.04%, SO8, tube, 10mA Min Qty: 1 | 0 |
|
$17.2000 / $25.7000 | RFQ |
|
|
ComSIT USA | HIGH PRECISION 5 V REFERENCE Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, BIPolar, PDSO8 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 6 |
|
$7.5000 / $11.5400 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 258 |
|
RFQ |
Part Details for AD586JRZ
AD586JRZ CAD Models
AD586JRZ Part Data Attributes
|
|
AD586JRZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD586JRZ
Analog Devices Inc
High Precision 5 V Reference
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | LEAD FREE, PLASTIC, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Voltage-Max | 5.02 V | |
| Output Voltage-Min | 4.98 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 36 V | |
| Supply Voltage-Min (Vsup) | 10.8 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 25 ppm/°C | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | YES | |
| Voltage Tolerance-Max | 0.4% | |
| Width | 3.9 mm |
AD586JRZ Frequently Asked Questions (FAQ)
-
The recommended input voltage range for the AD586JRZ is between 10mV and 10V, although it can operate with inputs as low as 1mV and as high as 15V.
-
To ensure accurate temperature measurement, it's essential to provide a stable voltage supply, minimize noise and interference, and use a high-precision voltage reference. Additionally, calibrate the device according to the datasheet recommendations.
-
The Zener diode in the AD586JRZ is used as a voltage reference to provide a stable voltage output. It helps to regulate the output voltage and maintain a consistent temperature measurement.
-
While the AD586JRZ is rated for operation up to 150°C, it's not recommended for high-temperature applications above 125°C. For high-temperature applications, consider using a more suitable device, such as the AD590 or AD698.
-
The AD586JRZ can be easily interfaced with a microcontroller using an analog-to-digital converter (ADC). Connect the output of the AD586JRZ to an ADC input, and then read the digital value using the microcontroller's ADC peripheral.
