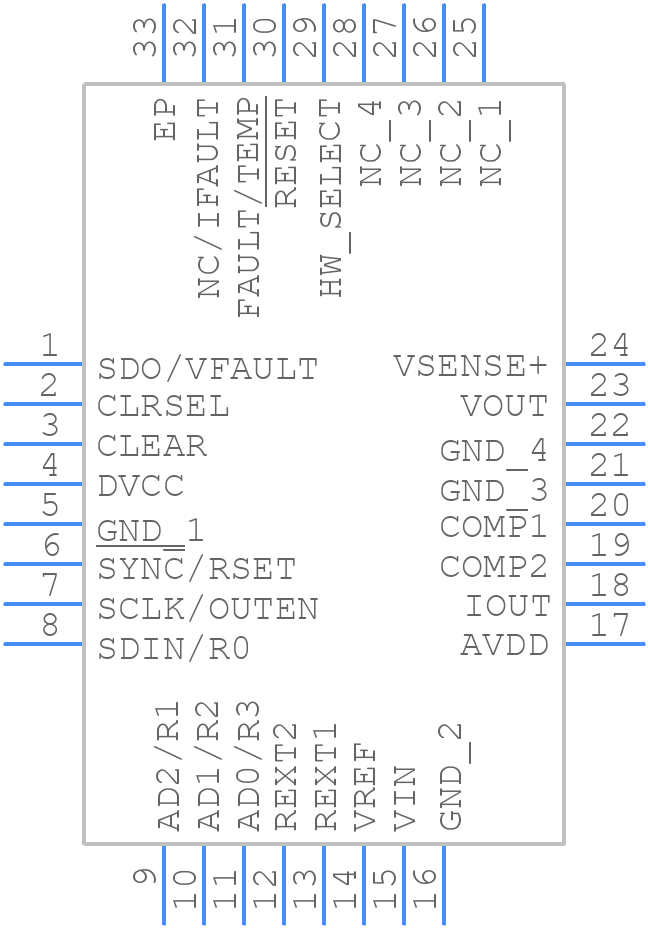

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5751BCPZ by Analog Devices Inc
Results Overview of AD5751BCPZ by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD5751BCPZ Information
AD5751BCPZ by Analog Devices Inc is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for AD5751BCPZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
AD5751BCPZ-ND
|
DigiKey | IC INST AMP 1 CIRCUIT 32LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
242 In Stock |
|
$7.4750 / $14.4400 | Buy Now |
|
DISTI #
584-AD5751BCPZ
|
Mouser Electronics | Instrumentation Amplifiers PLC OUR DRIVER +60V I.C. RoHS: Compliant | 106 |
|
$7.4700 / $13.1900 | Buy Now |
|
|
Analog Devices Inc | PLC OUR DRIVER +60V I.C. Package Multiple: 1 | 7901 |
|
$5.9800 / $14.4400 | Buy Now |
|
DISTI #
26925147
|
Verical | Output Driver 32-Pin LFCSP EP Tray RoHS: Compliant Min Qty: 83 Package Multiple: 83 | Americas - 7802 |
|
$7.3964 | Buy Now |
|
|
Win Source Electronics | IC OPAMP INSTR 32LFCSP | 2250 |
|
$7.3329 / $10.9992 | Buy Now |
Part Details for AD5751BCPZ
AD5751BCPZ CAD Models
AD5751BCPZ Part Data Attributes
|
|
AD5751BCPZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5751BCPZ
Analog Devices Inc
Industrial I/V Output Driver, Single-Supply, 55 V Maximum Supply, Programmable Ranges
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Pin Count | 32 | |
| Manufacturer Package Code | CP-32-7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Built-in Protections | OVER CURRENT | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | S-XQCC-N32 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current Flow Direction | SINK | |
| Output Peak Current Limit-Nom | 0.015 A | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC32,.2SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 mm |
