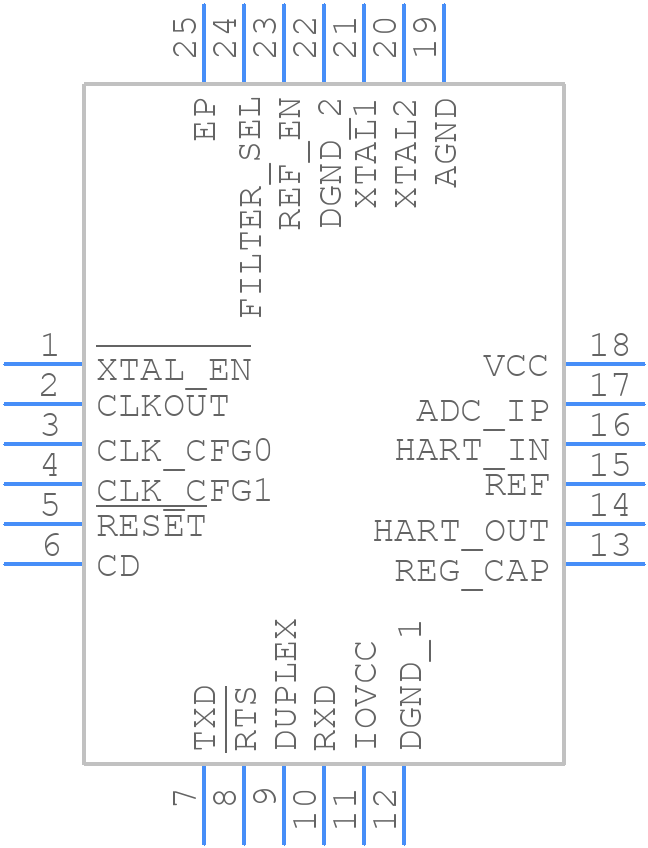

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5700-1BCPZ-R5 by Analog Devices Inc
Results Overview of AD5700-1BCPZ-R5 by Analog Devices Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Transportation and Logistics
Automotive
AD5700-1BCPZ-R5 Information
AD5700-1BCPZ-R5 by Analog Devices Inc is a Modem.
Modems are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for AD5700-1BCPZ-R5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80AK4583
|
Newark | Modem, Hart, Lfcsp-Ep-24 Rohs Compliant: Yes |Analog Devices AD5700-1BCPZ-R5 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 615 |
|
$8.0700 / $11.6400 | Buy Now |
|
DISTI #
505-AD5700-1BCPZ-R5CT-ND
|
DigiKey | IC HART MODEM 24LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1751 In Stock |
|
$8.0750 / $15.3100 | Buy Now |
|
DISTI #
584-AD5700-1BCPZ-R5
|
Mouser Electronics | Interface - Specialized HART Industrial Comm IC, Low Power w OSC RoHS: Compliant | 3605 |
|
$8.0700 / $11.6400 | Buy Now |
|
DISTI #
V36:1790_06210877
|
Arrow Electronics | Low Power HART Modem RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks Date Code: 2447 | Americas - 500 |
|
$8.0510 | Buy Now |
|
DISTI #
V72:2272_06210877
|
Arrow Electronics | Low Power HART Modem RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2308 Container: Cut Strips | Americas - 352 |
|
$8.6710 / $9.2600 | Buy Now |
|
|
Analog Devices Inc | HART Industrial Comm IC, Low P Package Multiple: 500 | 1351 |
|
$6.0900 / $15.3100 | Buy Now |
|
DISTI #
87698514
|
Verical | Low Power HART Modem RoHS: Compliant Min Qty: 500 Package Multiple: 500 Date Code: 2447 | Americas - 500 |
|
$8.0510 | Buy Now |
|
DISTI #
67511454
|
Verical | Low Power HART Modem RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2308 | Americas - 352 |
|
$8.6710 / $9.2600 | Buy Now |
|
DISTI #
AD5700-1BCPZ-R5
|
Richardson RFPD | LINEAR ICS, OTHER RoHS: Compliant Min Qty: 500 | 0 |
|
$8.4500 / $8.5600 | Buy Now |
|
|
Vyrian | Telecommunications | 1529 |
|
RFQ |
Part Details for AD5700-1BCPZ-R5
AD5700-1BCPZ-R5 CAD Models
AD5700-1BCPZ-R5 Part Data Attributes
|
|
AD5700-1BCPZ-R5
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5700-1BCPZ-R5
Analog Devices Inc
Low Power HART Modem with Precision Internal Oscillator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | LFCSP-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | CP-24-10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| JESD-30 Code | S-XQCC-N24 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC24,.16SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Nom | 2.7 V | |
| Surface Mount | YES | |
| Telecom IC Type | MODEM | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
